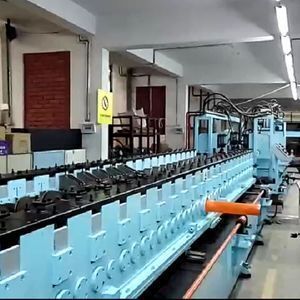

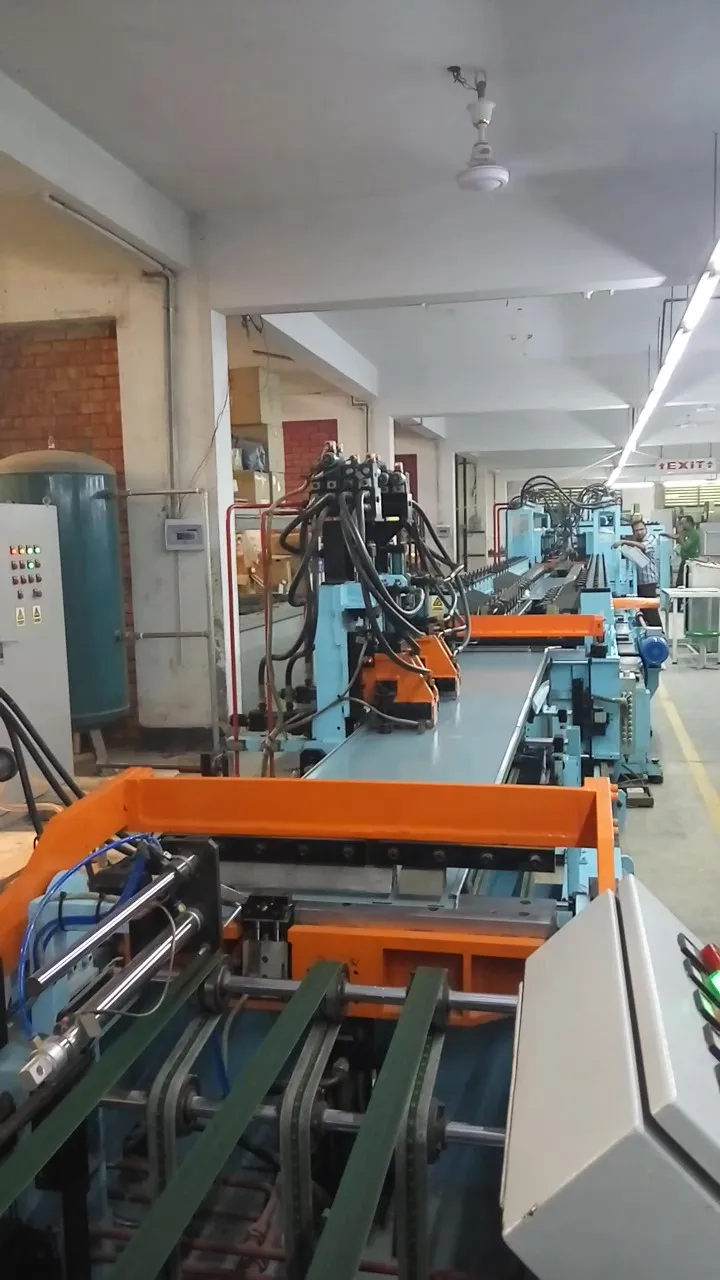

Refrigerator U-shape metal processing production line with

The forming line is mainly composed of automatic feeding machine, punching machine, 180-degree flip, roll mill, ZL bending machine, the transition belt line, U-shaped bending machine, pneumatic systems, hydraulic systems and electronic control systems and other components.

Production mode of selection:

• Refrigerator right/left side sheet production

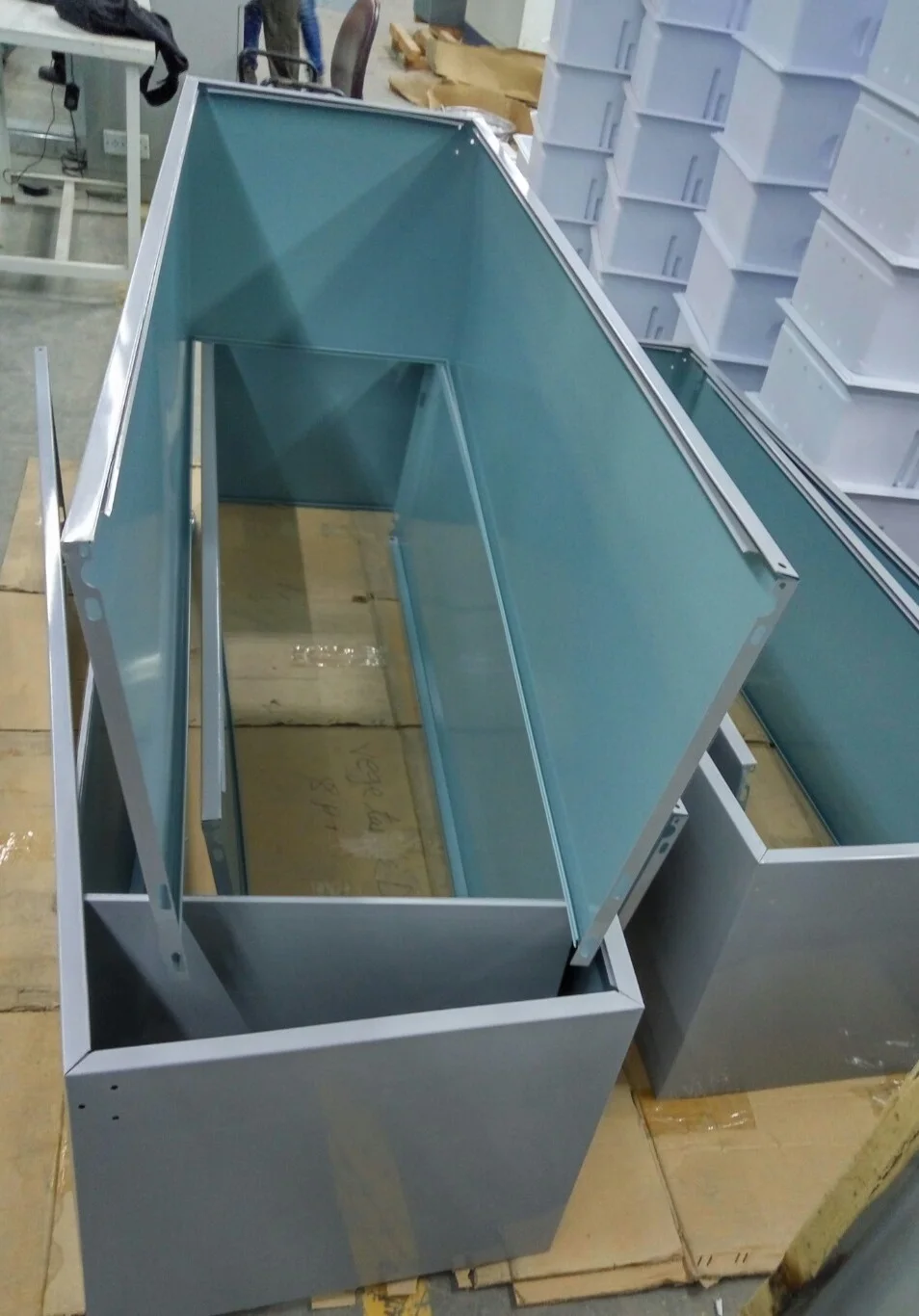

• Refrigerator U-shape production with Z-shape fold edge and U-shape bending

Production machine parameter:

Dimension: L48000*W3500*H1500mm

Number of workplace: 7

Shift: right/left side metal sheet, 30sec/set

         U-shape metal sheet,   25sec/piece

Power facility: 35KVA/380V/50Hz

Compresed air capacity:0.5-0.65MPa

Size of parts of refrigerator steel sheet

Thickness: 0.45~0.55mm

Length:800~1900mm

Width: 400~650mm

Refrigerator metal sheet processing line consist of as below:

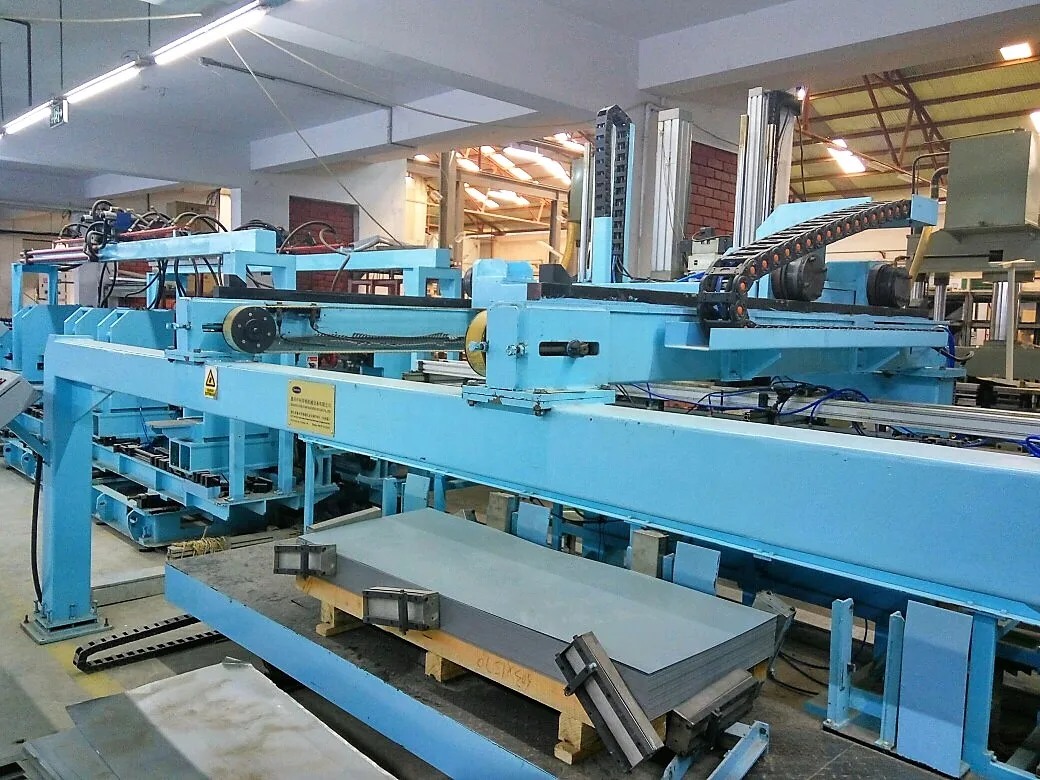

• metal sheet feeding machine
• punching machine
• 180^o dumper equipment
• mill
• Z-L shape bending machine
• transition belt line
• U-shape bending machine
• pneumatic system
• hydraulic system
• PLC integrated control system
