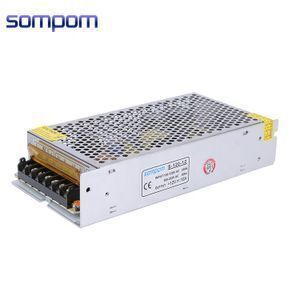

High Voltage 110V - 220V Switching Power Supply 120W 12V 10A SMPS LED Lighting Transformer

Supplier: Guangdong Province Sompom Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Jinlong zhang
Price: $2.64 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Packaging Detail:	12V 10A 120W Switching Power Packing details 1) Vacuum packing 2) 1 pc/pack, 50pcs/ctn 3)Packing as customer requirement 4)Special Protect carton for exporting product;	Phase:	SINGLE;
Coil Structure:	TOROIDAL;	Type:	Constant Voltage;
Protection:	Short Circuit;	Place of Origin:	China;
Brand Name:	sompom;	Coil Number:	AUTOTRANSFORMER;
Weight:	0.46kg;	Single gross weight:	0.518 KG;
Size:	1999742mm;	Working Temp.:	-10C°-60C°;
Single package size:	20.9X10.7X5.4 cm;	Model Number:	S-120-12;
Ripple&Noise:	<80MV;	Warranty:	2 Years;
Carton:	50pcs;	Efficiency:	90%;
Certification:	CE & RoHS&FCC&ISO9001;	Usage:	Lighting;
Selling Units:	Single item;

Product Description

High Voltage 110V - 220V Switching Power Supply 120W 12V 10A SMPS LED Lighting Transformer

DC Output	DC Voltage: 12V
	DC Current : 10A
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:90%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60C°
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Safety standards: CE,RoHS,FCC,ISO9001

Related products

	Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
	Model Series Link (View more)
	3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A
	5V Series: 5V2A, 5V3.8A, 5V5.5A,5V10A, 5V20A, 5V30A,5V40A, 5V60A
	6V Series: 6V10A, 6V20A, 6V30A, 6V40A, 6V50A
	9V ;Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A
	12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,12V10A, 12V12.5A, 12V15A, 12V16.5A,12V20A, 12V30A, 12V40A,12V50A.
	13.8V Series: 13.8V30A
	15V Series: 15V2A,15V5A, 15V10A,15V20A
	18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A
	24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A,24V10A 24V15A, 24V20A, 24V25A
	28V Series:28V1A, 28V10A
	36V Series: 36V2A, 36V5A, 36V10A
	48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A

Accessories

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
