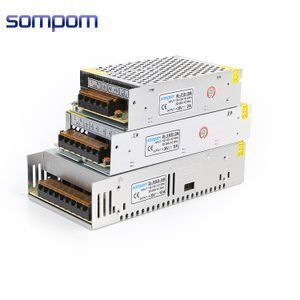

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box

Supplier: Guangdong Province Sompom Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Jinlong zhang
Price: $3.30 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Output Power:	1 - 500W;	Certification:	CE & RoHS&FCC&ISO9001;
Output Frequency:	47-63HZ;	Carton:	15pcs to 65pcs;
Type:	Constant Voltage;	Efficiency:	90%;
Input Voltage:	85-264VAC;	Single package size:	25X25X10 cm;
Single gross weight:	1.0 KG;	Warranty:	2 Years;
Brand Name:	sompom;	Ripple&Noise:	<80MV;
Packaging Detail:	12V/10A Switching Power Packing details 1) Vacuum packing 2) 1 pc/pack, 50pcs/ctn (12V) 3)Packing as customer requirement 4)Special Protect carton for exporting product;	Selling Units:	Single item;
Place of Origin:	China;	Output Voltage:	12V;
Protections:	Short Circuit Overtemp Overload Overvolt;	Size:	1999742mm;
Output Current:	10A;	Model Number:	S-120-12;
Weight:	461g;	Output Type:	Single;

Product Description

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box

DC Output	DC Voltage: 12V
	DC Current : 10A
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:90%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60C°
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Safety standards: CE,RoHS,FCC,ISO9001

Related products

	Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
	Model Series Link (View more)
	3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A
	5V Series: 5V2A, 5V3.8A, 5V5.5A, 5V10A, 5V20A, 5V30A,5V40A, 5V60A
	6V Series: 6V10A, 6V20A, 6V30A,6V40A, 6V50A
	9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A
	12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A, 12V10A, 12V12.5A, 12V15A, 12V16.5A, 12V20A, 12V30A, 12V40A,12V50A.
	13.8V Series: 13.8V30A
	15V Series: 15V2A,15V5A, 15V10A,15V20A
	18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A
	24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A, 24V10A ,24V15A, 24V20A, 24V25A
	28V Series:28V1A,
	36V Series: 36V2A, 36V5A, 36V10A
	48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A

About Us

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.

Our certificate

Q1:What is your MOQ of switch power?

A:Our MOQ is 1 piece.

Q2:How many year warranty of your Led driver?

A:Two years.

Q3:Do you offer sample of power?

A:Yes,We offer free sample,but you need pay the shippment.

Q4:Do you have switch power factory?

A:Yes,we are OEM & ODM manufacturer in Donguan.

Q5:Is your power with copper transform or something?

A:We can do with complete copper transform and copper cladding aluminum.

Q1:What is your MOQ of switch power?

A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.

Our factory

	ADVANCED MACHINE Its brand SOMPOM is well-known at home and abroad.
	LONG-TIME BURN-IN TEST Each of the switch power is extremely safe and stable after 5 times testing.
	OEM&ODM SERVICE This company is engaged in the design, manufacture and sale of switching power series.
	OUR CERTIFICATE All of our products have the ISo9001 CE,FC,ROHS certification.
