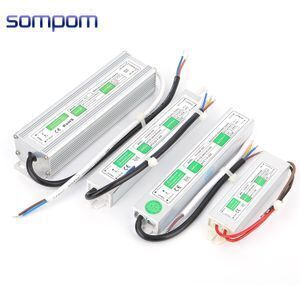

OEM ODM Sompom DC 36W Led Driver IP67 waterproof power supply 12v Switching Power Supply

Supplier: Guangdong Province Sompom Industrial Co., Ltd.
Region: Guangdong, China
Contact: Mr Jinlong zhang
Price: $5.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	2 Years;	Item Name:	12V Switch Power;
Product:	ODM&OEM;	Output Current:	3A;
Supply Ability:	10000 Piece/Pieces per Day;	Model Number:	12V36W IP67;
Lighting solutions service:	Lighting and circuitry design,Project Installation;	Warranty(Year):	2-Year;
Usage:	Led Driver;	Output Frequency:	47-63HZ;
Working temperature:	-10~60°C;	Certification:	RoHS&CE&FCC&ISO9001;
Output Type:	Single;	Waterproof Standard:	IP67;
Weight:	420g;	Size:	200X30X20MM;
Port:	Shenzhen/Guangzhou;	Place of Origin:	Guangdong China;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Output Power:	1 - 50W;
Packaging Detail:	1) Vacuum packing 2)Special Protect carton for exporting product. 3)Packing as customer requirement.;	Brand Name:	Sompom;
Protections:	Short circuit/over load/over voltage;	Input Voltage:	85-264VAC;

Product Description

OEM ODM Sompom DC 36W Led Driver IP67 waterproof power supply 12v Switching Power Supply

DC Output	DC Voltage: 12V
	DC Current : 36w
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:90%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60C°
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Safety standards: CE,RoHS,FCC,ISO9001

Related products

	Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
	Model Series Link (View more)
	3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A
	5V Series: 5V2A, 5V3.8A, 5V5.5A,5V10A, 5V20A, 5V30A,5V40A, 5V60A
	6V Series: 6V10A, 6V20A, 6V30A, 6V40A, 6V50A
	9V ;Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A
	12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,12V10A, 12V12.5A, 12V15A, 12V16.5A,12V20A, 12V30A, 12V40A,12V50A.
	13.8V Series: 13.8V30A
	15V Series: 15V2A,15V5A, 15V10A,15V20A
	18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A
	24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A,24V10A 24V15A, 24V20A, 24V25A
	28V Series:28V1A, 28V10A
	36V Series: 36V2A, 36V5A, 36V10A
	48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A
