Single gross weight: | 1.0 KG; | Weight: | 461g; |
Model Number: | S-120-12; | Certification: | CE & RoHS&FCC&ISO9001; |
Input Voltage: | 85-264VAC; | Single package size: | 25X25X10 cm; |
Place of Origin: | China; | Protections: | Short Circuit Overtemp Overload Overvolt; |
Output Current: | 10A; | Ripple&Noise: | <80MV; |
Efficiency: | 90%; | Warranty: | 2 Years; |
Output Voltage: | 12V; | Output Frequency: | 47-63HZ; |
Packaging Detail: | 12V/10A Switching Power Packing details 1) Vacuum packing 2) 1 pc/pack, 50pcs/ctn (12V) 3)Packing as customer requirement 4)Special Protect carton for exporting product; | Carton: | 15pcs to 65pcs; |
Output Type: | Single; | Size: | 199*97*42mm; |
Selling Units: | Single item; | Type: | Constant Voltage; |
Brand Name: | sompom; | Output Power: | 1 - 500W; |

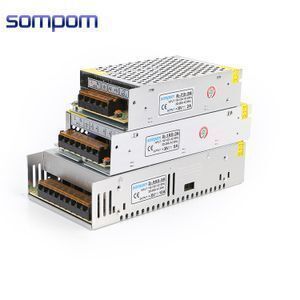

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box
DC Output | DC Voltage: 12V |
DC Current : 10A | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
AC Input | AC Voltage Range: 85-264VAC |
Frequency Range: 47-63Hz | |
Efficiency:90% | |
AC Current: 0.86/115V 0.4A/230V | |
AC Inrush Current: 20A/115V 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC,ISO9001 |
| Features: 110V/220V AC to DC Power Series 3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V |
Model Series Link (View more) | |
3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A | |
5V Series: 5V2A, 5V3.8A, 5V5.5A, 5V10A, 5V20A, 5V30A,5V40A, 5V60A | |
6V Series: 6V10A, 6V20A, 6V30A,6V40A, 6V50A | |
9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A | |
12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A, 12V10A, 12V12.5A, 12V15A, 12V16.5A, 12V20A, 12V30A, 12V40A,12V50A. | |
13.8V Series: 13.8V30A | |
15V Series: 15V2A,15V5A, 15V10A,15V20A | |
18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A | |
24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A, 24V10A ,24V15A, 24V20A, 24V25A | |
28V Series:28V1A, | |
36V Series: 36V2A, 36V5A, 36V10A | |
48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A |
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Donguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q1:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
ADVANCED MACHINE Its brand SOMPOM is well-known at home and abroad. | |
LONG-TIME BURN-IN TEST Each of the switch power is extremely safe and stable after 5 times testing. | |
OEM&ODM SERVICE This company is engaged in the design, manufacture and sale of switching power series. | |
OUR CERTIFICATE All of our products have the ISo9001 CE,FC,ROHS certification. |
