CNC Router 700*500mm 80W CO2 Laser Tube Laser Engraver/Engraving /Cutting Machine Co2 laser engraving machine

Supplier: Shanghai Sihao Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sihao Sihao
Price: $1220.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Dimension(LWH):	150010801100 (mm);	Showroom Location:	none;
Warranty of core components:	1 YEAR;	Application:	Laser Engraving;
Machinery Test Report:	not available;	Applicable Material:	Acrylic,Crytal,glass,leather,MDF,Metal,PAPER,plastic,Plexiglax,plywood,RUBBER,STONE,wood;
Certification:	ce,ISO,GS;	Condition:	New;
Local Service Location:	none;	Key Selling Points:	Easy to operate;
Brand Name:	sihao;	Marketing Type:	Ordinary Product;
Warranty:	2 years;	Keywords:	laser cutting and Engraving machine;
Selling Units:	Single item;	After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support;
Product name:	80W Double-head laser cutting and Engraving machine KH9060;	Core Components:	engine;
Video outgoing-inspection:	Provided;	Single package size:	149X100X114 cm;
ITEM:	80W CO2 Laser Engravering Machine;	Place of Origin:	Jiangsu China;
Engraving Area:	750mm x 500mm;	Cooling Mode:	WATER COOLING;
Graphic Format Supported:	AI,BMP,dst,dwg,DXF,DXP,LAS,PLT;	Applicable Industries:	80W CO2 Laser Engravering Machine;
CNC or Not:	YES;	Laser Type:	CO2;
Engraving Speed:	1000mm/s;	Single gross weight:	180.0 KG;
After Warranty Service:	Online support;	Name:	CNC Router;
Weight (KG):	180 KG;	Laser Source Brand:	other;

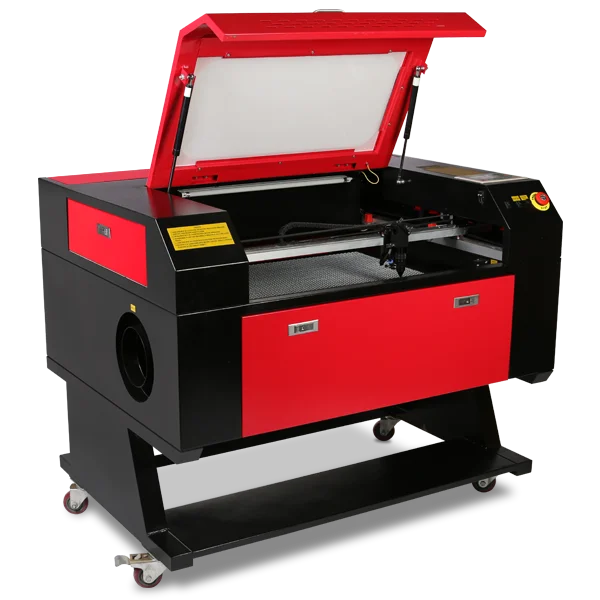

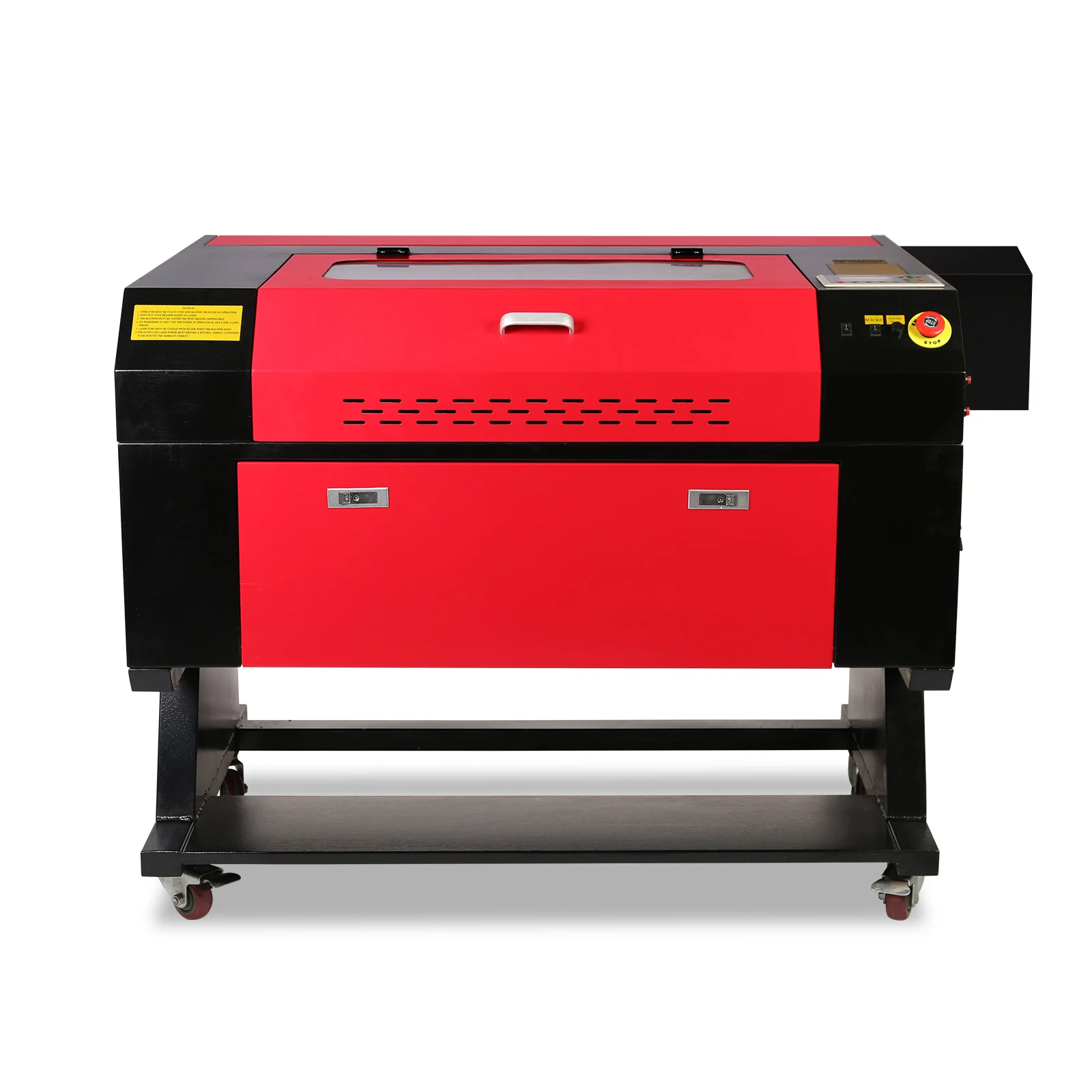

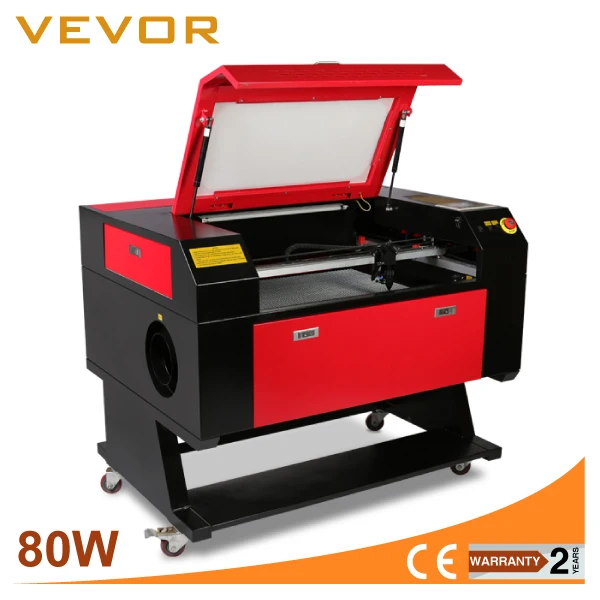

CNC Router 700*500mm 80W CO2 Laser Tube Laser Engraver/Engraving /Cutting Machine Co2 laser engraving machine

Model no.HQ750 HQ7050

Kindly note we have 110V/220V models, RDworks mainboard, Europe warehouses shipping is available. Please do not hesitate to contact us for more discount! Thanks

For other countries, before you order: The trade term is CFR term, we can ship this item to your nearest port. Please make sure if you can do cutoms clearance before you place order. If you need door to door price, please contact us. Thanks

Product Description

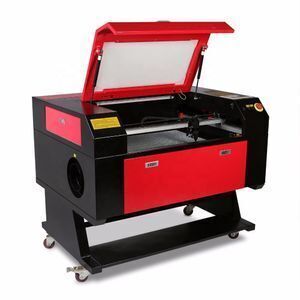

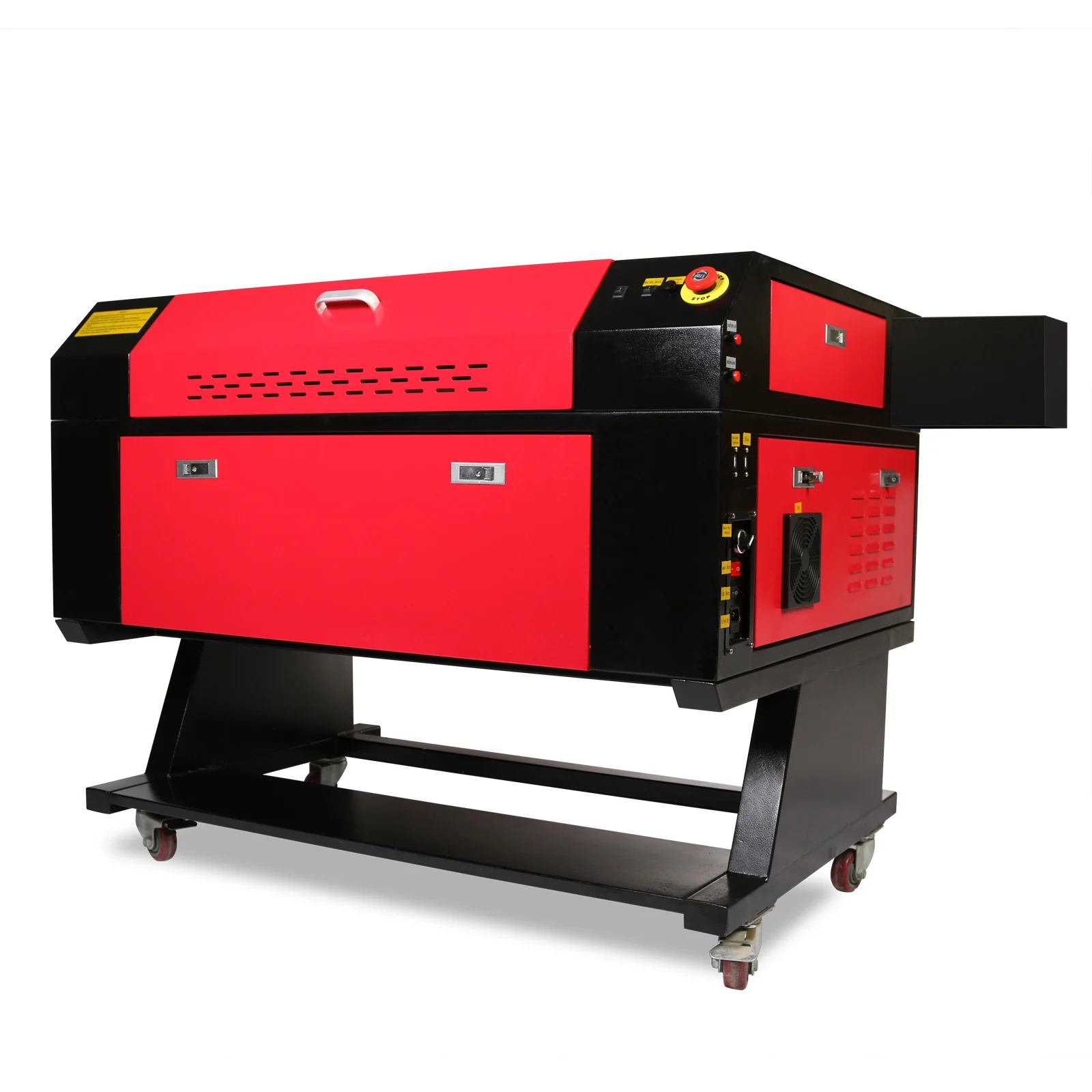

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:
Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.

Note:

1. We prefer to delivery item to commercial address; If your delivery address is private residence address,

please contact us before you place an order.
2. Please leave us message if your address has loading platform to load your item.

Features

FDA,CE Certification, ISO9001 Quality Certification.
Smooth and Precise Engraving and Cutting.
Output from RDdraw directly,also supports CoreDraw and Auto CAD .
Optimization of mechanical and electrical design.
More friendly control panel with Color Screen.
English, French, German, Italian, Spanish and more languages updating.
Separation of cutting up to 256 Colors.
One key to install, more convenient.
Use virtual array list and additional off-cut graph to realize the off-cut function.
Machines with feeding devices can realize the cyclical model of working-feeding-working.

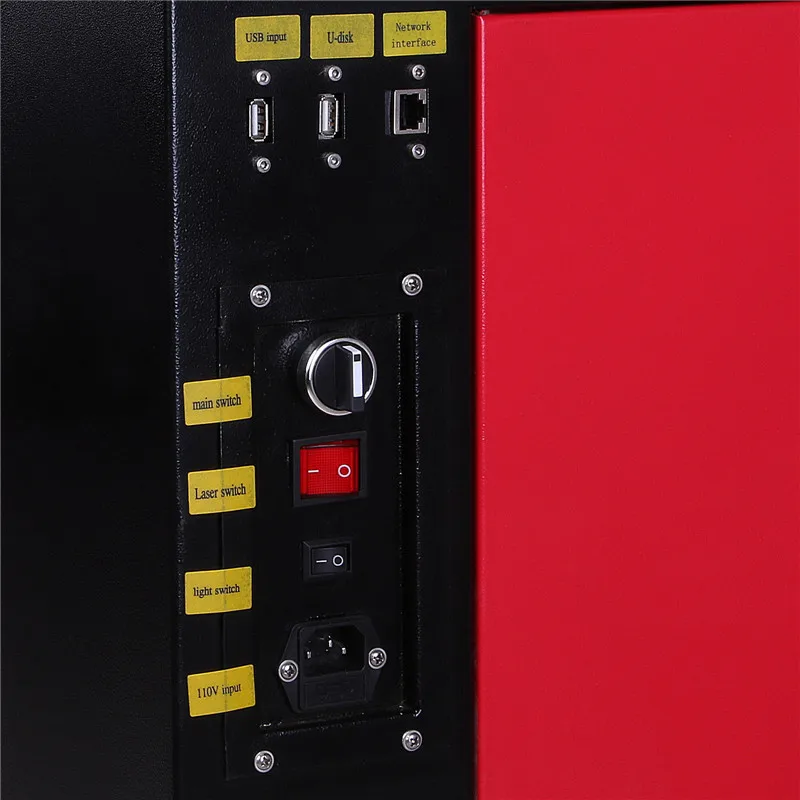

USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
2 years free warranty and life time free maintenance service.

Technical Specs

Control system	DSP
Working size	20"x28"(500mm x 700mm) with double side open door
Up and down work plate	7.8" (200mm)
Laser tube type	CO2 Glass sealed laser tube
Laser power	60W/80W
Driver type	Micro Stepping Motor
Max speed	1000mm/s
Resolution	1000 DPI Location precision: 0.01mm
PC Interface	USB2.0 and USB Disk
Software	AutoLaser/LaserCAD
Image form	HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
Machine Dimension(L/W/H)	*1150860970(mm)*
Package Dimension(L/W/H)	*1700 10001200 (mm)*
Package	Standard Wooden case for export
N.W.	125KG
G.W.	185KG

Packaging & Shipping

1 X Main Body
1 X Air exhaust fan
1 X Air Pump
1 X Communication cable
3 X Reflect optics (installed in the machine)

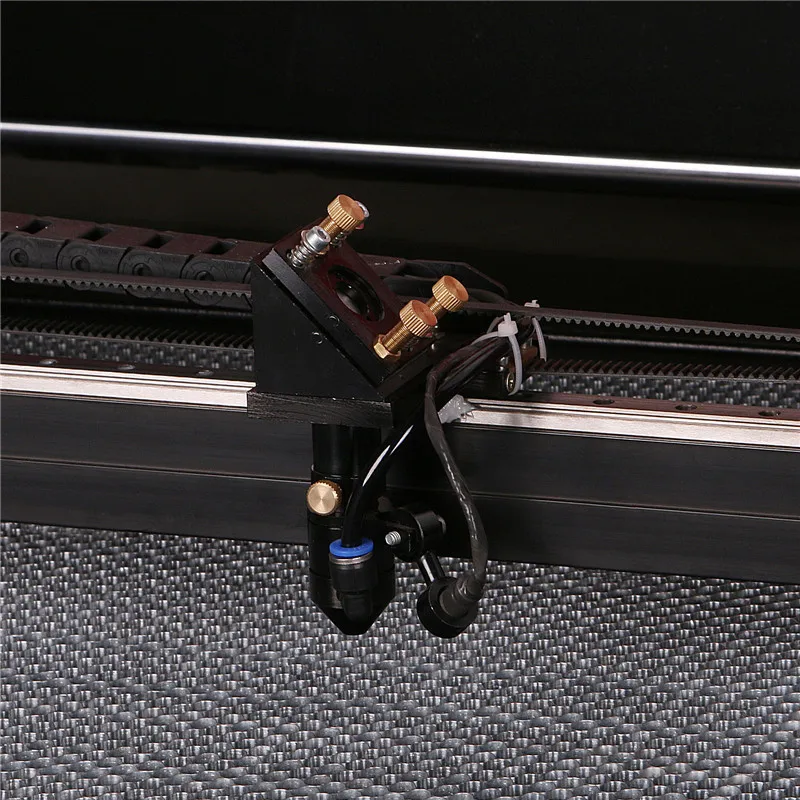

1 X Focus optics (installed in the machine)
1 X Laser tube
Other tools
1 X User Manual (CD)
