Two Layers PCB Electronic Components PCB PCBA China Manufacturer

Supplier: Dalian Jy Electronics & Technology Co., Ltd.
Region: Liaoning, China
Contact: Mr Frank Zhu
Price: $0.90 /piece
Min. Order: 1 piece

Click here to contact

Product details

PCB max. Panel Size:	541*647mm(Special can do to 950mm);	Finish Hole Size:	PTH +/-0.003'' ,NPTH +/-0.002";
Type:	components;	Brand Name:	Customized;
Board Thickness:	0.5~3.2mm;	Packaging Detail:	Packaging Detail: Inner Packing:Vacuum Packing/Plastic Bag Outer Packing:Standard Carton Packing;
Certificate:	SGS, RoSH, TS certificate;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Surface Finishing:	HASL,OSP,ENIG,Gold plating;	Port:	DALIAN PORT;
Copper Thickness:	1oz~4oz;	Hole Position Accuracy:	+/-0.003;
Hardness of resist ink:	≥6H;	Aspect Ratio:	Min 1:8;
Supply Ability:	600000 Square Meter/Square Meters per Month;	Place of Origin:	China;
Model Number:	Customized;	Impedance control:	±5%;

Two Layers PCB Electronic Components PCB PCBA China Manufacturer

Product Description

PCB Specification

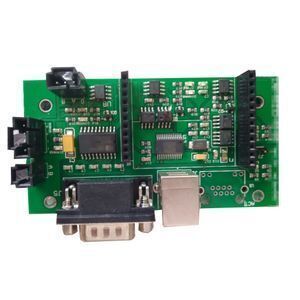

Product Name	Custom PCB Printed Circuit Board
Type	Rigid
Material	FR4, CEM1, CEM3, High Frequency Board,
Layer	1,2,4,6...20Layer
Shape	Rectangular, Round, Slots, Cutouts, Complex, Irregular
Cutting	Shear, V-score, Tab-routed
Board Thickness	0.2-4mm, regular 1.6mm
Copper Thickness	0.5-4oz, regular 1oz
Solder Mask	Green, Red, Blue, Yellow, etc.
Silk Screen	White, Black, etc.
Silk Screen Min Line Width	0.006" or 0.15mm
Min Trace/Gap	0.1mm or 4mils
Min Drill Hole Diameter	0.01",0.25mm or 10mils
Surface Finish	HASL, ENIG, OSP, etc.

PCB Board we have produced are mainly used in the Industrial Control, Medical Treatment, Automobile area. All the products must meet ISO9001 UL CE etc. certification with high quality sodering for wires and no fingerprint.

DHI PCB	HDI PCB Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.
High TG PCB	The general TG plate is more than 130 degrees, the high TG is generally greater than 170 degrees, and the medium TG is more than 150 degrees.
High Frequency PCB	RO4003C, RO4350B, Ro3003, Ro3010, and RT5880 etc with frequency typically in the range from 500MHz to 2GHz, products are applied to power devider,radar,satellite system, mobile phone reception base station and so on.
Carbon Ink PCB	As carbon ink pcb has very good resistance value that will help supply good conductivity. Carbon ink pcb is widely used in automotive filed, medical electronics,communication equipment and so on.
Special Material PCB	Rogers4350,Rogers4003,Arlon 25FR,25N for Ceramic PCB powder filling, Rogers series, Taconic series,Arlon series,Nelco series ect for PTFE high frequency material.
Thick Copper PCB	Ensure that there is enough thick copper plating in the hole to ensure that the resistance is within the range of the process requirements. 70% of the circuit board to complete the use of 35um of copper foil thickness, some will use 70um , 105um ,140um copper thickness and so on.

Main Products

Also we can provide components sourcing service for you.

Ogrinal components supplier long-term cooperation-quality
Big factory stable relationships-price
Long years experience
Complete management systerm--safety
Large amount and kinds of components

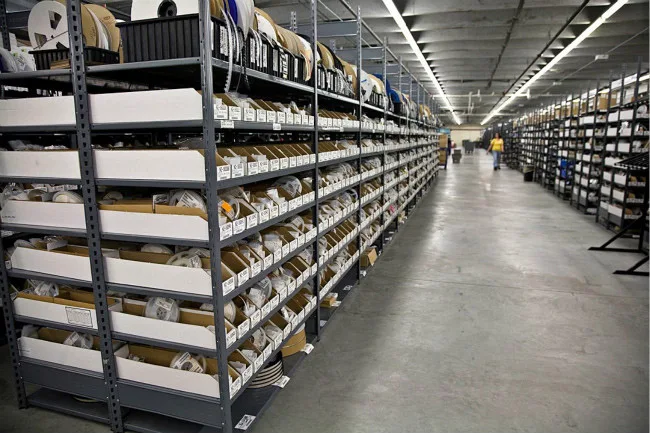

A strict warehouse management mechanism

Certifications

Our Factory

Dalian JY Electronic Co., Ltd was established in 2002. We mainly offer High-Precision Single-Side, Double-Side, Multi-layer Printed Circuit Boards, LED Aluminium Printed Circuit Board, Customers Components Procurement and PCB Assembly (SMT) Business.
Now the production capacity of our factory has reached 600,000 square meters annually. And our products apply far and wide in many fields such as communication, computer, mobile phone, electronic equipment, and electrical appliance.
We established an assembly line in 2010, all the assembly machines were purchased from Panasonic, which can assemble the components of 0201. The production capacity of the PCBA is 2,000,000 points per day.

Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.

PCBA Capability

Item	Capability	Item	Capability
Solder Paste Printing	Accuracy: ±0.025mm	Wave Soldering
	Max. speed: 150mm/sec		Nitrogen source: external
	PCB max. area: 400*310mm		PCB max. size: 400*330mm
	PCB thickness: 0.2-6mm		Temperature accuracy: ±1°C
SMT	Accuracy: ±0.03mm		Lead free compatible
	Speed: 0.17sec/pc
	PCB max. area: 350*350mm	AOI
	Available part: 0201 chip to 35*35mm		Accuracy: ±0.0024mm
	Accuracy: ±0.05mm		Speed: 5in² /sec (60FOV/sec)
	Speed: 0.048sec/pc		PCB max. area:300*300mm
	PCB max. area: 350*350mm		Available component: 0201 chip and fine pitch
	Available part: 0402 chips to 14mm (H 12mm)	X-ray Inspection
	Minimum SMD resistor and capacitor: 0201		BGA void (0.5mm distance between Ball)
	Minimum BGA R-VTx: 0.15mm		Solderability inner shielding
Reflow Soldering	Nitrogen source: external	BGA Rework
	PCB max. size: 400*330mm		Nitrogen source: NA
	Temperature accuracy: ±4°C		PCB max. size: 350mm
	Zones: 8		Temperature accuracy: ±1°C
	Lead free compatible		Lead free compatible

Our Services

Now we have been a factory which can provide one-stop service, from the PCB production, the components purchasing to the components assembled.

Exhibition & Client

When we attended some Exhibition Show all around the world, such as USA, India, Japan, Thailand etc., our products attracted many people and they like our products and give high praise for our professional service. Thanks for their trust and we have already built long term business cooperation.

When the client visits our factory, all of them were satisfied with our workshop, they said "The factory is so clean, big and professional. Your machines, production line, and your team are amazing."

Packaging & Shipping

Our company is not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.

Regular Cartons Specification	No. Dimension (LWH)
Small Size	33cm28.5cm18.5cm
Medium Size	44.5cm30cm15cm
Big Size	51.5cm32.5cm17.5cm

Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

PCB Fast Delivery

Order Type / PCB Layers	1/2-layer	4-layer	6-layer	Above 8-layer	HDI
First Batch Order	7-9 days	10-12 days	13-15 days	14-16 days	20-22 days
Fast Sample Order	48-72 hours	5-7 days	6-8 days	6-7 days	12-14 days
Normal Sample Order	5-6 days	6-7 days	7-8 days	10-12 days	15-20 days
