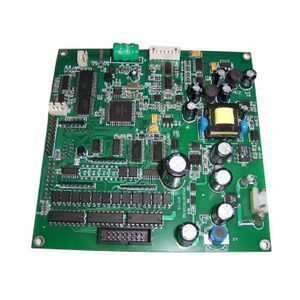

1 oz Copper Thickness PCB Circuit Board Other Electronic Components Professional Manufacturer

Supplier: Dalian Jy Electronics & Technology Co., Ltd.
Region: Liaoning, China
Contact: Mr Frank Zhu
Price: $0.70 /piece
Min. Order: 1 piece

Click here to contact

Product details

Hardness of resist ink:	≥6H;	Hole Position Accuracy:	+/-0.003;
Place of Origin:	Liaoning China;	Impedance control:	±5%;
Finish Hole Size:	PTH +/-0.003'' ,NPTH +/-0.002";	Min. Line Spacing:	0.08mm;
High Vlotage endurance:	1.3KV/mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,pay-pal;
Supply Ability:	600000 Square Meter/Square Meters per Year;	Min. Line Width:	0.08mm;
Flame resistance:	94V-0;	Aspect Ratio:	Min 1:8;
Board Thickness:	0.5~3.2mm;	Base Material:	FR4,FR1,CEM3,Aluminum,Ceramic;
Packaging Detail:	Vacuum Package, Carton;	PCB Item:	PCBA;
Port:	Dalian port;	Copper Thickness:	1oz~4oz;
Board Size:	Max. Panel Size 541*647mm;	Certificate:	ISO 9001:2000;ISO 14001;ISO/TS16949:2002 ,UL E203640;
Model Number:	JY PCB;	Surface Finishing:	HASL,Lead Free HASL,OSP,ENIG,Gold plating;
Min. Hole Size:	0.15mm;	Number of Layers:	multilayer;
Max. Panel Size:	541*647mm(Special can do to 950mm);	Brand Name:	JY;

Product Description

PCBA Technical Parameters

No.	Items	Capacity
1	Max.Assembly PCB Panel Size	250mm*300mm
2	Min. Component Package	0402, 0201(accept less than 4pcs)
3	Min. Assembly PCB Thickness	0.2mm
4	Min. BGA Assembly Distance	0.3mm(BGA edge to edge)
5	PCB Assembly Foot Pin	SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA
6	Type of assembly	SMD&DIP
7	Solder Type	Water Soluble Solder Paste Leaded and Lead-Free
8	File Format	Bill of Materials; Gerber files; Pick-N-Place file
9	Types of Service	Turn-key partial turn-key or consignment
10	Component Package	Cut Tape Tube Reels Loose Parts
11	Tesing	Flying Probe Test; X-ray Inspection; AOI Test
12	Quantity	MOQ 1PCS to Mass Production

PCBA Product Application Area

Circuit Board Electronic Assembly manufacturer Related Products

Our Factory

Our production capacity

1. Assembly Capabilities

Printed Circuit Board Assembly (PCBA)
Through Hole
Surface Mount (SMT)
PCB Handling up to 400mm x 500mm
RoHS Compliance Production
Non RoHS Production – where permitted
AOI

2. OEM/ODM/EMS Services for PCB Assembly:

PCBA, PCB ASSEMBLY: SMT&PTH&BGA
PCBA and enclosure design
Components sourcing and purchasing
Quick prototyping
Plastic injection molding
Metal sheet stamping
Final assembly
Test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)
Custom clearance for material improting and product exporting

3. PCBA Capacity:

SMT: 2,000,000 solder joints per day
DIP: 300,000 joints per day
Certifications: ISO 9001

Company Information

Dalian JY has rich experience in multilayer PCB assembly. Backed by our advanced techniques and experienced production staff, JY makes sure that all the layers in the multilayer PCB are perfect insulated between each other and every conductor pattern functions well. The R&D team in JY does a wonderful job and we can provide PCB products to our customers according to their design or requirements. All our products, including PCB, are passed the certification of SGS, TS, RoHS and UL.

Dalian JY can also manufacture and supply Aluminum PCB, Flexible PCB, fast PCB and the PCB/PCBA design and copy service to our customers.

Our Equipment

1. Component Technologies:

Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement

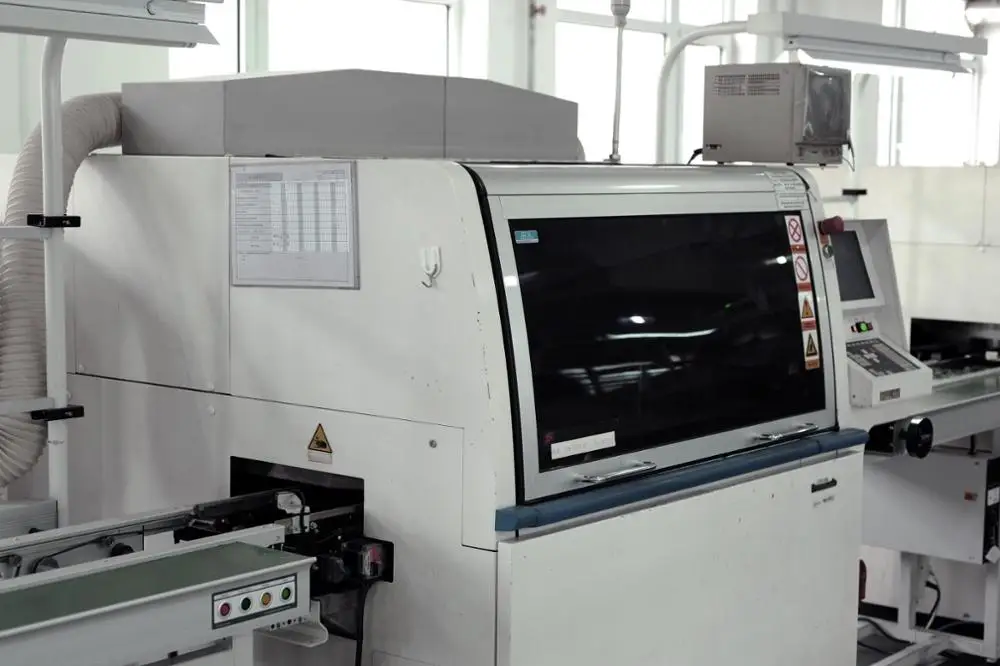

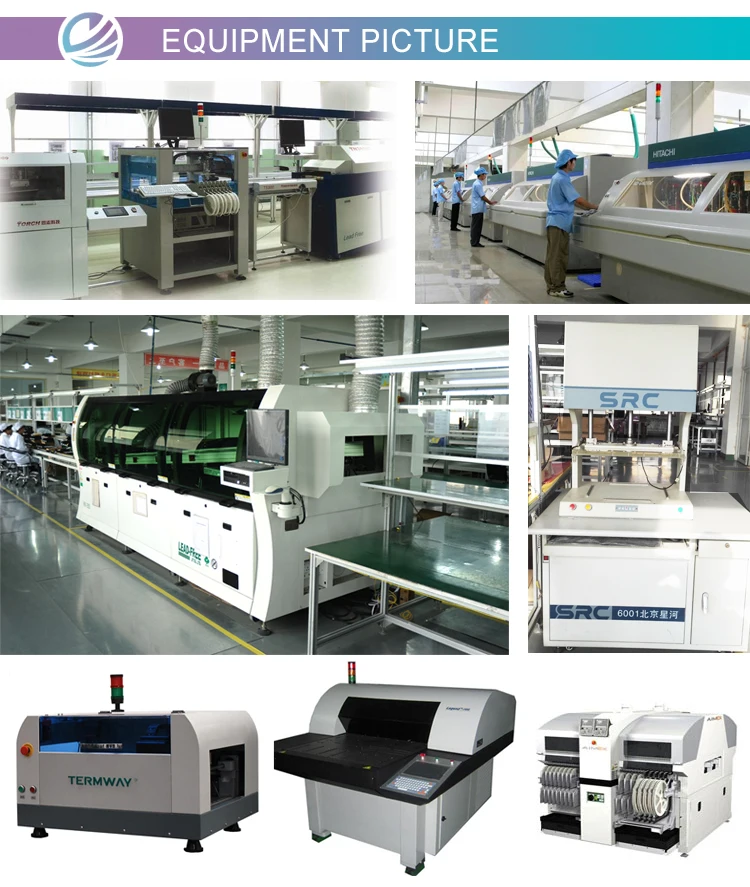

2. Orientronic PCB assembly Equipment:

SMT Machine: SIEMENS SIPLACE D1/D2
SIEMENS SIPLACE S20/F4
Reflow Oven: FolunGwin FL-RX860
Wave Soldering Machine: FolunGwin ADS300
Automated Optical Inspection (AOI): Aleader ALD-H-350B
Fully Automatic SMT Stencil Printer: FolunGwin Win-5

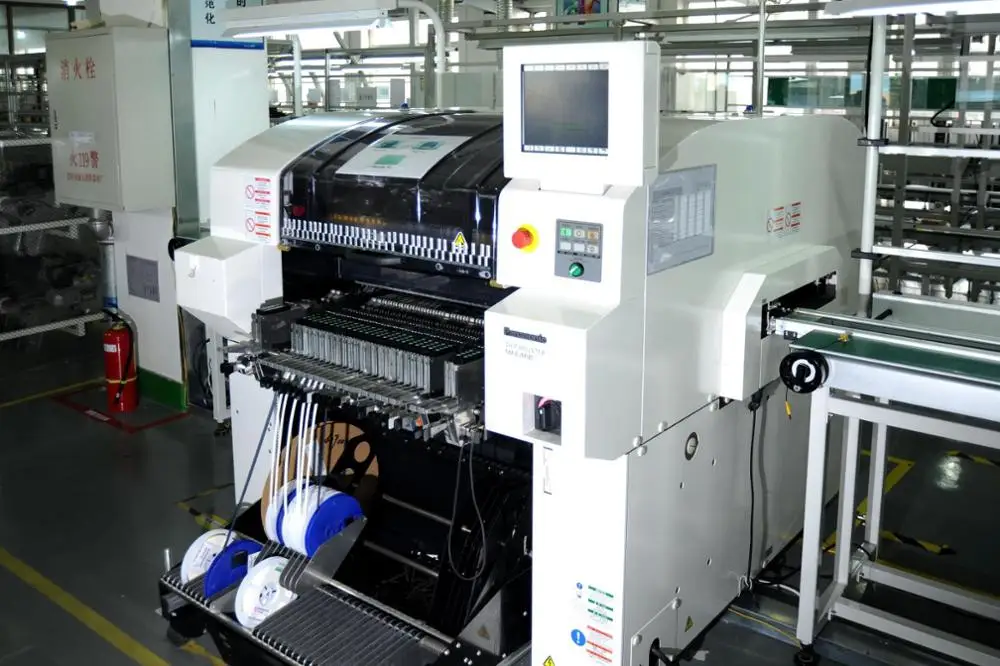

	Panasonic Multi-function Alien Placement Machine BM221 inherited the most advanced technology of Panasonic in the field of small body, it achieved excellent productivity and efficiency. Patch precision reache ±0.001mm, BGA SOLDER BALL 0.25mm, ball spacing 0.5mm, Minimum components can be mounted 0201.
Panasonic SPF Automatic Printing Machine Panasonic introduced from Japan high speed precision SPF automatic printing machine, the printing speed can reach 6 s/PCS, accurancy of ± 25um, the minimum distance between IC PIN 0.3mm, ensure the good printing quality.

Production flow chart

Exibition

Chinese goods Exhibition of Mumbai India, we met many clients from india, Sri Lanka, Pakistan and other countries. Thanks for their trust and we already built long term business ship. We will do our best along the time for our partners.

Packaging & Shipping

Packaging:

Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:

PCB: Sealed bag, Anti-static bags, Suitable carton.

PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Refular Cartons Specification.

No.	Dimension(LWH)
small size	33cm28.5cm18.5cm
medium size	44.5cm30cm15cm
big size	51.5cm32.5cm17.5cm

Customized Cartons:

Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

Our Common Packaging Process.
