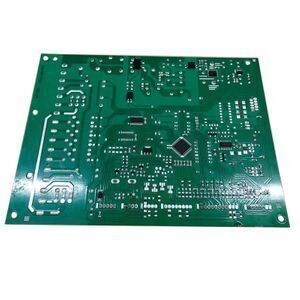

Doubld Side PCB Printed Circuit Board Product Manufacturer And Assembly

Supplier: Dalian Jy Electronics & Technology Co., Ltd.
Region: Liaoning, China
Contact: Mr Frank Zhu
Price: $0.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

PCB Item:	pcb, pcba, pcb assembly;	Flame resistance:	94V-0;
Min. Hole Size:	0.15mm;	Surface Finishing:	HASL,Lead Free HASL,OSP;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,pay-pal;	Brand Name:	JY;
Min. Line Width:	0.08mm;	Max. Panel Size:	541*647mm(Special can do to 950mm);
Port:	Dalian port;	Impedance control:	±5%;
High Vlotage endurance:	1.3KV/mm;	Model Number:	JY PCB;
Board Thickness:	0.5~3.2mm;	Supply Ability:	600000 Square Meter/Square Meters per Year;
Hardness of resist ink:	≥6H;	Base Material:	FR4, CEM-3, Ceramic;
Min. Line Spacing:	0.08mm;	Packaging Detail:	Vacuum Package, Carton;
Certificate:	ISO 9001:2000;ISO 14001;ISO/TS16949:2002 ,UL E203640;	Hole Position Accuracy:	+/-0.003;
Place of Origin:	Liaoning China;	Copper Thickness:	0.5~3.2mm;
Finish Hole Size:	PTH +/-0.003'' ,NPTH +/-0.002";	Aspect Ratio:	Min 1:8;

Doubld Side PCB Printed Circuit Board Product Manufacturer And Assembly

Product Description

Specification

Product Name	PCB Board Clone And PCB Copy
Type	Rigid
Material	FR4, CEM1, CEM3, High Frequency Board,
Layer	1,2,4,6...20Layer
Shape	Retangular, Round, Slots, Cutouts, Complex, Irregular
Cutting	Shear, V-score, Tab-routed
Board Thickness	0.2-4mm, regular 1.6mm
Copper Thickness	0.5-4oz, regular 1oz
Solder Mask	Green, Red, Blue, Yellow, etc.
Silk Screen	White, Black, etc.
Silk Screen Min Line Width	0.006" or 0.15mm
Min Trace/Gap	0.1mm or 4mils
Min Drill Hole Diameter	0.01",0.25mm or 10mils
Surface Finish	HASL, ENIG, OSP, etc.

Medical Electronic PCB Board we have prodced are mainly used in wearable medical area. All the products must meet ISO9001 UL CE etc. certification with high quality sodering for wires and no finger print.

Main Products

Air Conditioner Control PCB Board Clone And PCB Copy Certifications

Our Factory

Dalian JY Eletronic Co., Ltd was established in 2002. We mainly offer High-Precision Single-Side, Souble-Side, Multi-layer Printed Circuit Boards, LED Aluminium Printed Circuit Board, Customers Components Procurement and PCB Assembly (SMT) Business.
Now the production capacity of our factory has reached 600,000 square meters annually. And our products apply far and wide in many fields such as communication, computer, mobile phone, eletronic equipment and electrical appliance.
We established an assembly line in 2010, all the assembly machines were purchased from Pnansonic, which can assemble the components of 0201. The production capacity of the PCBA are 2,000,000 points per day.

Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.

Our Services

Now we have been a factory which can provide one-stop service, from the PCB production, the components purchasing to the components assemble.

Exhibition & Client

1. Surface Show in USA

2. Surface Show in India

3. America Client Visit Comapny

4. Client Factory Inspection

When we attended some Exhibiton Show all around the world, such as USA, Japan, Thailand etc., our products attracted many people and they like our prodcuts and give a high praise for our professional service. Thanks for their trust and we have already built long term business cooperation.

When client visit our factory, all of them were satisfied with our workshop, they said "The facotry is so clean, big and professional. Your machines, production line and your team are amazing."

Packaging & Shipping

Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size : 33cm*28.5cm*18.5cm
Medium Size: 44.5cm*30cm*15cm
Big Size: 51.5cm*32.5cm*17.5cm

Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

FAQ

-- FAQ --

- How to control products with high quality?

We ensuring products quality by IPC-610 F standard ,The test will be done as customer’s requests. If any rejects during transportation, We will supply maintenance free of charge.

- What service can JY supply to customer?

We can supply PCB, PCBA, gerber design, clone, OEM and ODM service.

- Did you have any experience in medical electronic boards production?

Yes, we have made intelligent wearable bell.

- How does JY ensure customers' profit?

To protect customers' profit, we will sign NDA with customers and strictly abide by it.

- How long does it take to produce the medical pcb ?

Generally 5-6 weeks for 5000 sets.
