Brand Name: | Kaize; | Warranty: | 1 Year; |
Packaging Detail: | Machines wrap packed by transparent film or at customer's request; | Place of Origin: | Jiangsu China; |
Power: | 13500; | Certification: | SGS; CE; |
After-sales Service Provided: | Field installation, commissioning and training; | Voltage: | 3~380~50/60; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Applicable Industries: | Manufacturing Plant,Retail,Construction works ; |
Max. film width: | 300 mm; | Port: | Shanghai; |
Max. process thickness: | 90 mm; | Supply Ability: | 50 Set/Sets per Month; |
Package Preview: | ; | Dimension(L*W*H): | 6000x2000x1800 mm; |
Weight: | 2 T; | Condition: | New; |
Min. process length: | 6000 mm; | coating speed: | 0-15 m/min; |
Automatic Hot Glue PVC Strips Profile Film Wrapping Machine50mm
Application
This machine is widely used in aluminum alloy, MDF and PVC coated PVC film, wood veneer, decorative paper, leather and other materials.
Working Principle
With a stable overall body and precision transmission system, the working speed can reach 50M / min, high efficiency, meet to the domestic advanced level. Scraping gun with dual rocker-type adjustment, can easily adjust the width of a variety of films. Production process, when the PVC coated film quickly over the precise temperature of the glue to reach 130 °C -150 °C scraping plastic head, good quality, do not open plastic, no smell of environmental protection; use of polyurethane PUR hot melt adhesive coating machine production lines In -40 °C to 120 °C, the provincial plastic, easy to adjust, fast; automatic electronic control gear pump for the glue system, with the coating speed changes automatically control the precise amount of glue size. Gluing uniform, no heap plastic, non-foaming, the provincial plastic effect is good, easy to adjust.
Technical Parameter
Max. film covering wid. | 300 mm |
Max. process thickness | 90 mm |
Min. process length | 600 mm |
Speed | 0-15 m/min |
Motivity power | 1.5 kw |
Heating power | 4.4 kw |
Max. diameter of roll cover material | 400 mm |
Fiexible maximum width of cover film | 400/600/900/1200 mm |
Weight | 2000 kg |

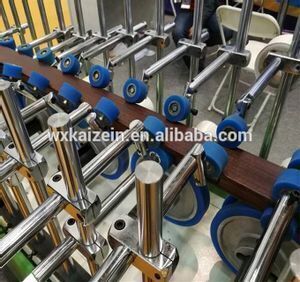

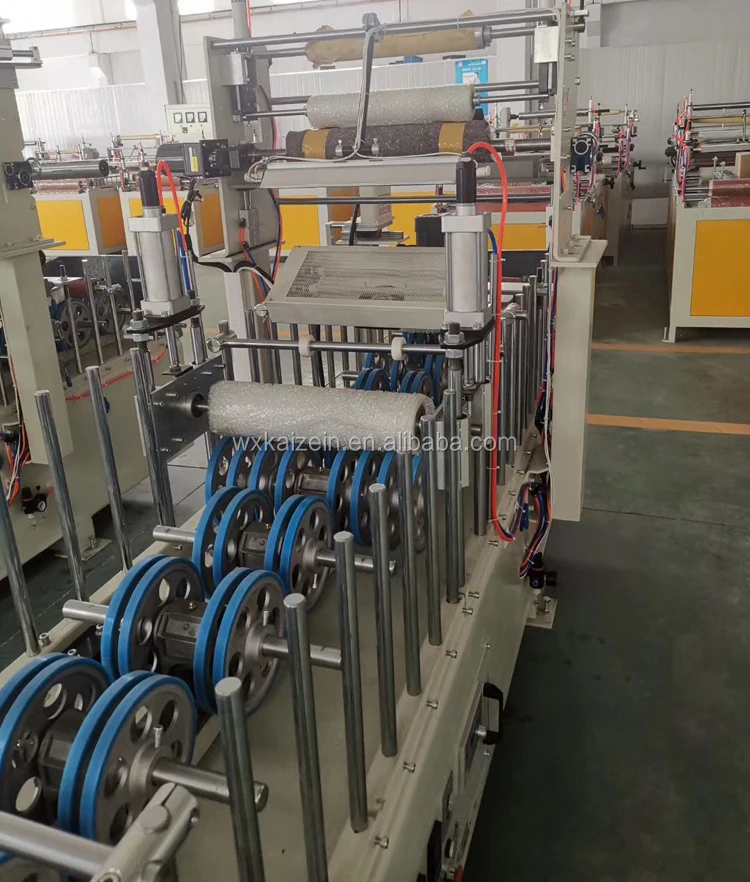

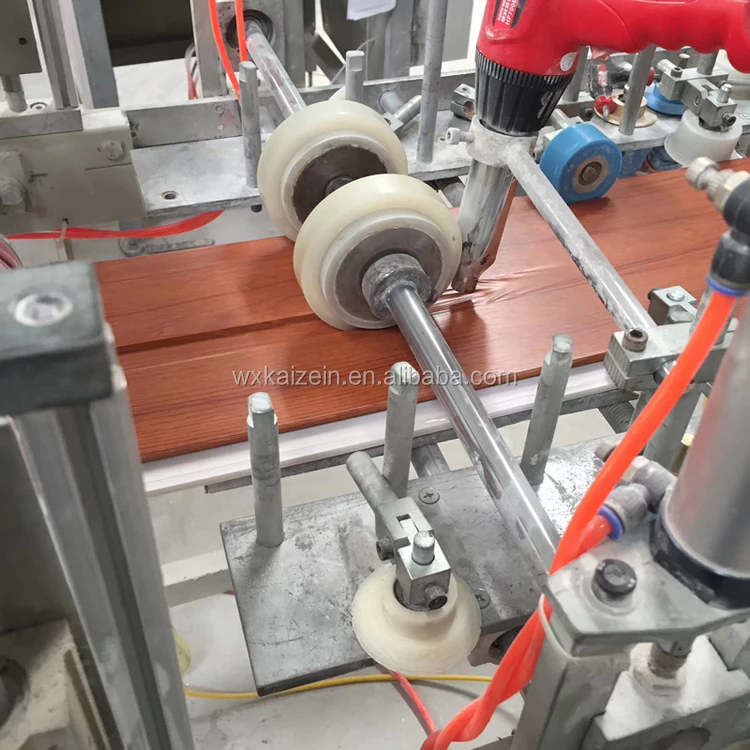

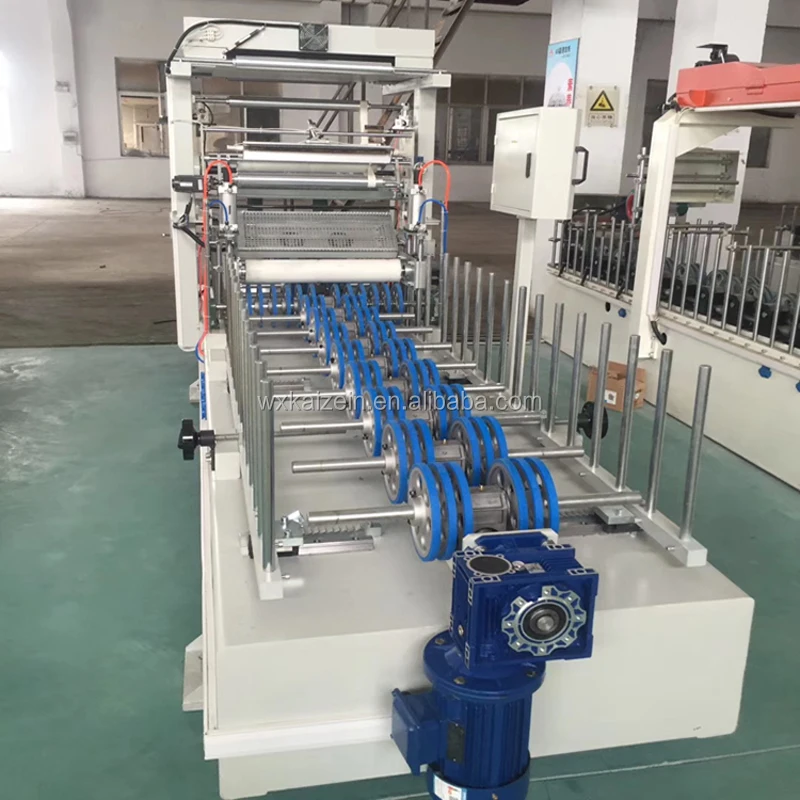

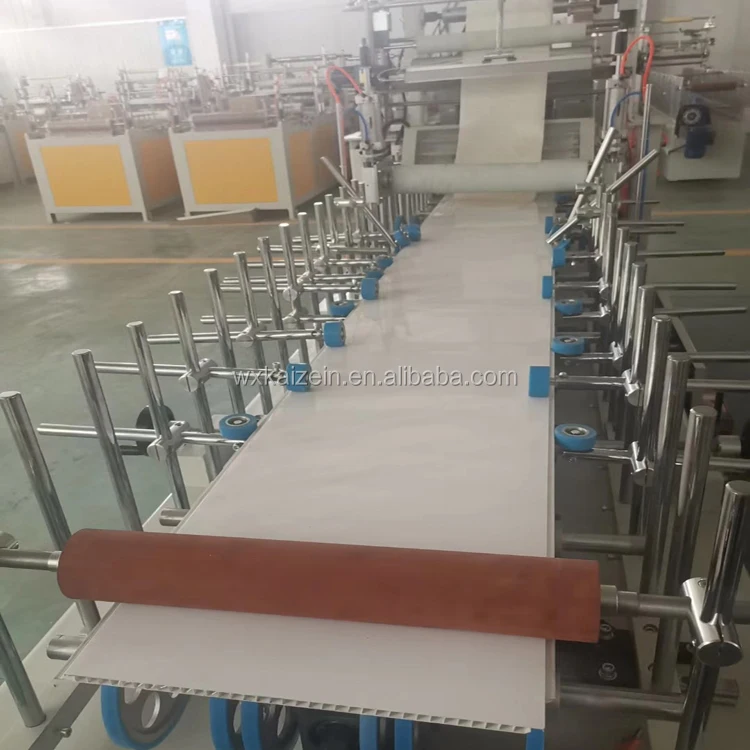

The machine is working
*Based on 15 years sales experience in construction & decorative materials
*External: Been familiar with overseas market research and ROI
*Internal: Accumulates accurate material producing machine manufacturers
*Turn-key service been provided for the producing project.
