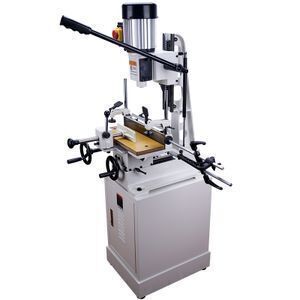

Mortising Machine Power Drills Square Hole Drilling for Woodworking Hollow Chisel Mortising Machine
-
Supplier: Shanghai Tongchen Industrial Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Richard Zhang -
Price: $415.00 / >=10 sets -
Min. Order: 10 sets
Product details
| Drill Diameter: | 6-15mm; | Brand Name: | Tongchen; |
| Key Selling Points: | Easy to Operate; | Warranty: | Motor warranty for one year; |
| Condition: | New; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Construction works ,woodworking; |
| After Warranty Service: | Online support; | Automatic Grade: | Manual; |
| Dimension(L*W*H): | 480*380*1500mm; | Warranty of core components: | Motor warranty for one year; |
| Application: | woodworking drilling; | Marketing Type: | New Product 2020; |
| Showroom Location: | None; | Video outgoing-inspection: | Provided; |
| Local Service Location: | None; | Place of Origin: | China; |
| Core Components: | Motor; | Power: | 1500W; |
| Supply Ability: | 3000 Set/Sets per Month; | Packaging Detail: | wooden box package; |
| Name: | Door Lock Mortising Machine; | Color: | Silver grey; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Motor Speed: | 2800rpm; |
| Machinery Test Report: | Provided; | Voltage: | 220v; |
| Port: | Shanghai; |
Product Description
|
Motor power |
1500W |
Rotate speed |
2800rpm |
|
Tenon knife |
16mm |
The size of drill |
6.0-15mm |
|
Diameter of the cutting tools |
20mm |
Drill chuck |
3-16mm |
|
Clamping range |
145mm |
Vertical working stroke |
320mm |
|
Left and right working stroke |
175mm |
Baffle size |
400*350mm |
|
Travel of spindle |
320mm |
Max clamping width |
145mm |
|
Drill stroke |
190mm |
Left and right stroke |
175mm |
|
Drilling depth |
76mm |
Before and after stroke |
150mm |
|
Work table size |
400*148mm |
Height |
1500mm |
|
Pillar size |
88*15*480mm |
Pedestal size |
380*480*580mm |
|
Net weight |
110/119kg |
Packing size |
560*480*830mm |
