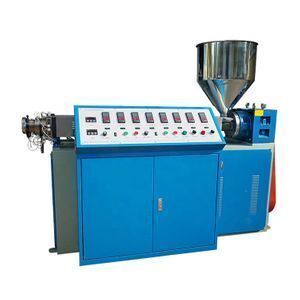

PLA drinking straws making machine

Supplier: Nanjing Jiexuan Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr forbes ma
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

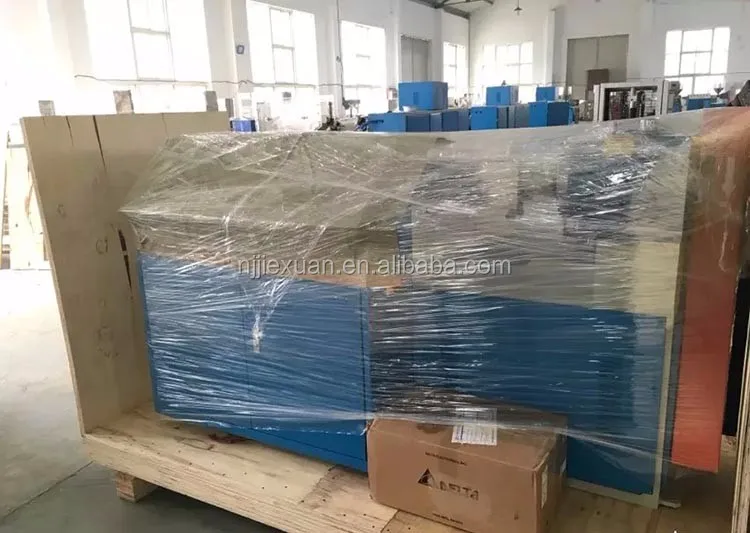

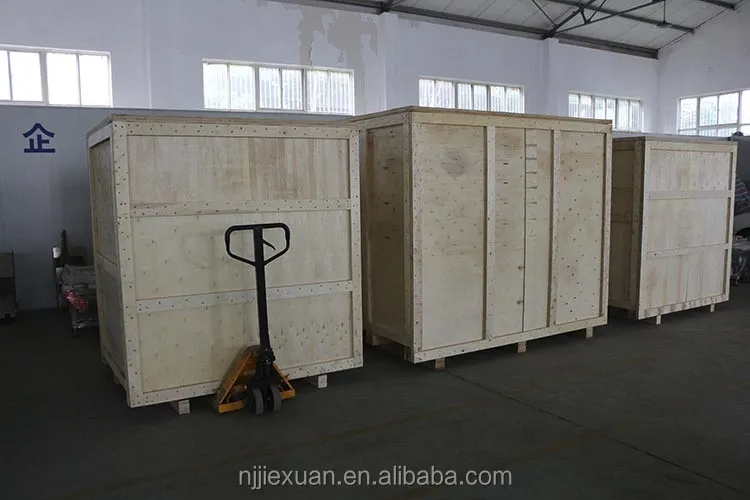

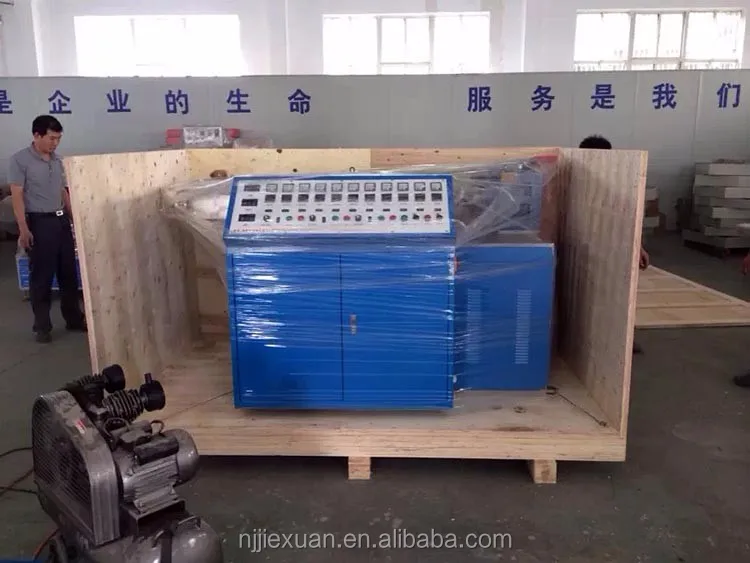

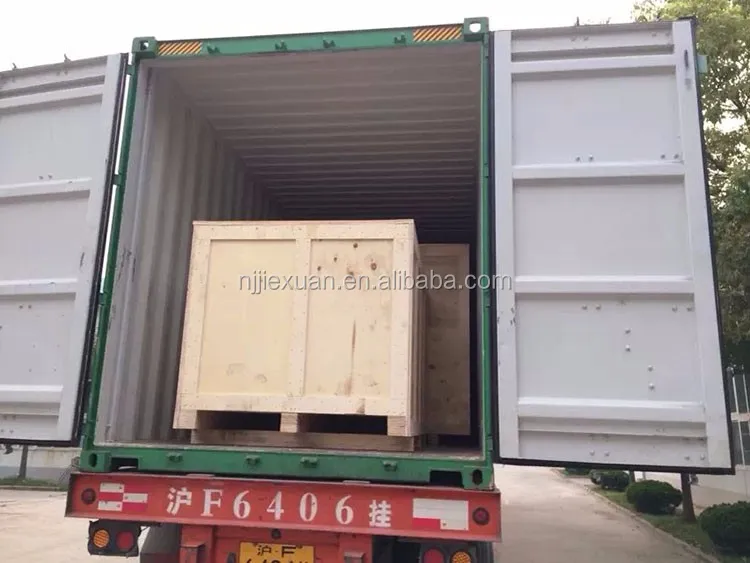

Capacity:	20-40 kg per hour;	Packaging Detail:	high quality 35mm thickness non-fumigation export wooden box packaging One set machine packed into one wooden box Machine is fixed with long screws protect from damage;
Total Power Consumption:	10-20 kw per hour;	Brand Name:	Jiexuan;
Place of Origin:	Jiangsu China (Mainland);	Screw Design:	high efficiency single screw 50/65 mm;
Power(W):	11kw;	Total Power in theory:	15kw-30kw per hour;
Port:	Shanghai/Ningbo Port;	Drinking Straw Length Range:	>=5mm;
Weight:	600-1000kg;	Voltage:	380V/220V;
Screw Grade:	38CrMoAlA material 0.2-0.7mm nitrogen treatment grade;	Condition:	New;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Application:	PLA drinking straws;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	10 Set/Sets per Month;
Warranty:	One Year;	Drinking Straw Diameter Range:	3-12mm;
Drinking Straw Color:	transparent, ivory-white, one to three color;	Dimension(LWH):	220010001300mm;
Certification:	CE;	Raw Material:	PLA(polylactic acid) Material;

Product Description

Product Application

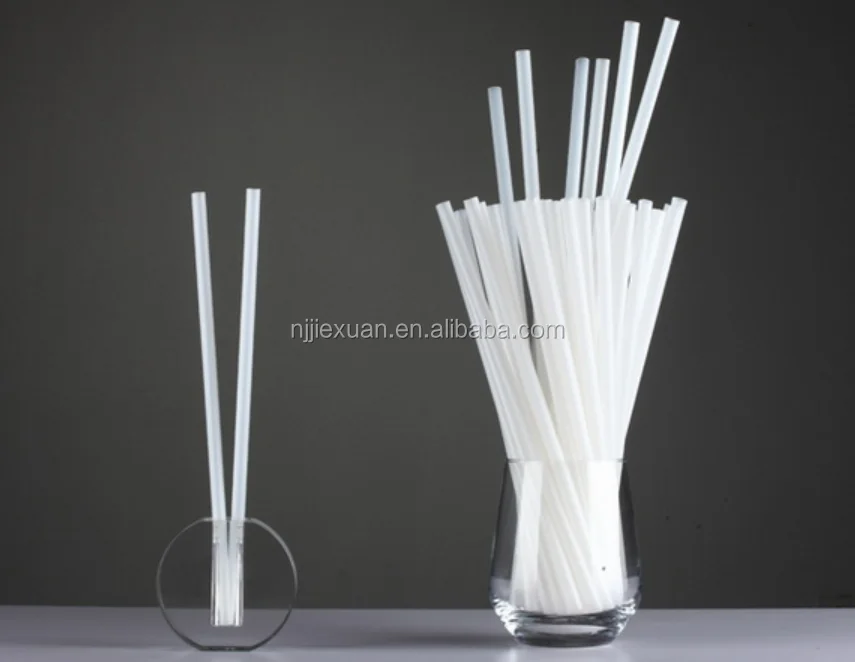

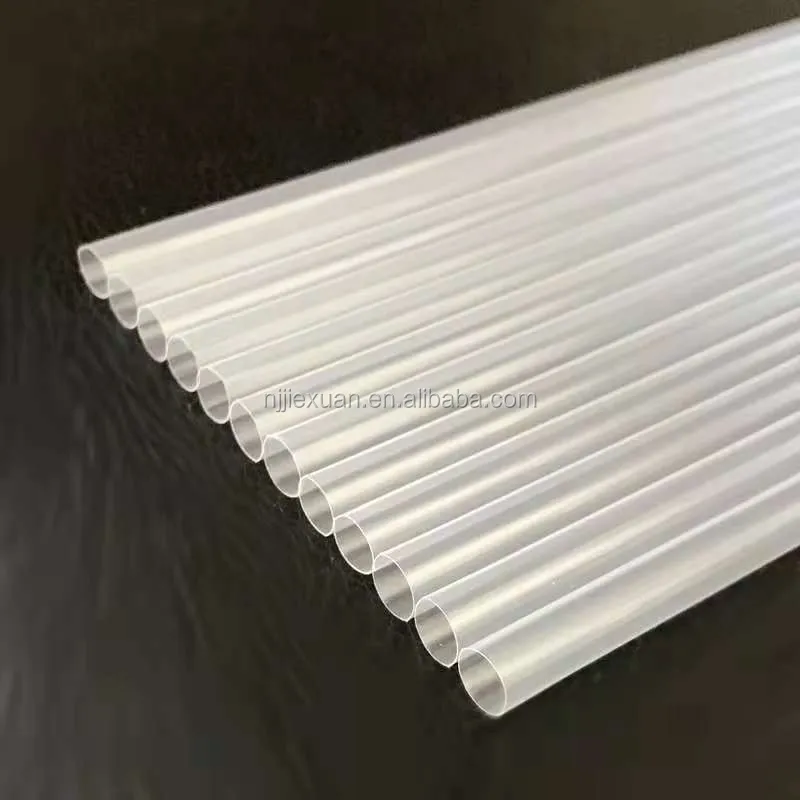

PLA drinking straws making machine use PLA (Polylactic Acid) as raw materials, after melting, extrusion, shaping, cooling, pulling and rotating, cutting, then produce biodegradable drinking straws.

What is PLA?

Polylactic acid (PLA in short) uses corn, cassava and other crops as raw materials, and derived from microbial fermentation and extraction(lactic acid), then refined, dehydrated and oligomerized, pyrolyzed and polymerized. PLA has excellent biodegradability, and can be completely degraded by microorganisms in the soil within one year after being discarded, resulting in CO2 and water, and without pollution to the environment.

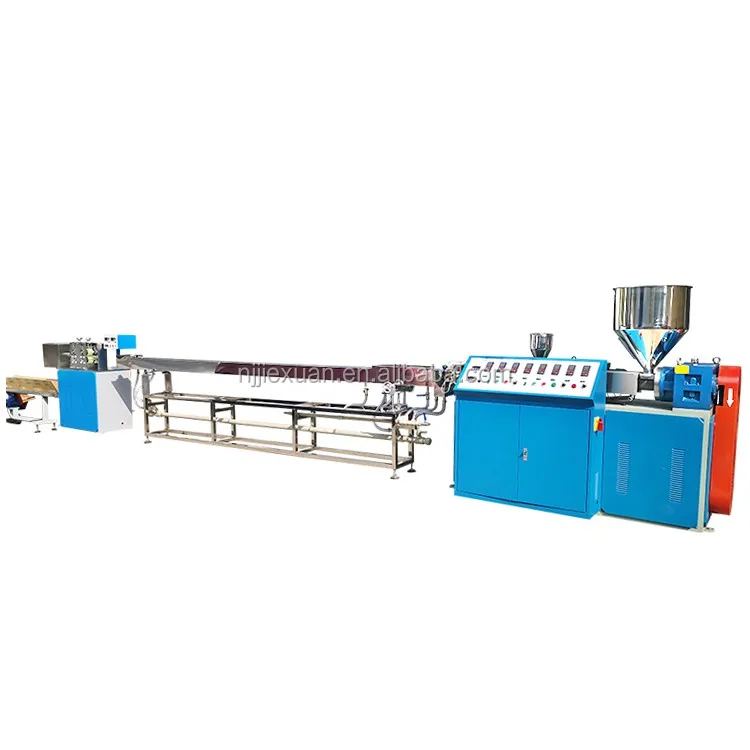

PLA drinking straws making machine is composed of main straw extruder machine, mold parts, water cooling system, and automatic cutting machine, automatic straw collection machine etc,

The capacity is around 20-60 kg pp raw material, according to different straw sizes and Dia. of screw&barrel.

Main Features

1)The gears and bearings(NSK, Japan) are precision ground and hardened to ensure smooth and quiet operations.

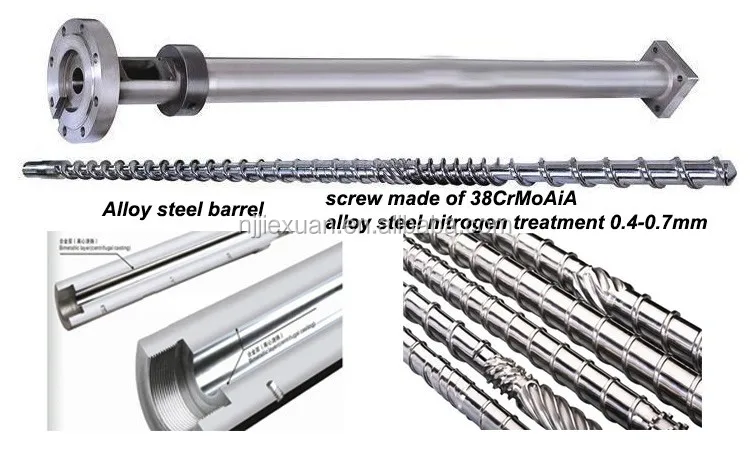

2)The screw and barrel for straw extrusion is manufactured from Aluminum Chromolybdenum alloy steel(38CrMoAlA material 0.2-0.7mm nitrogen treatment) and custom-made suitable for PLA Material.

3)The die undergoes nitride hardening treatment for a long service time.
4)The water tank and the surface of cutting machine are made of fully 304 stainless steel.
5)The main extruder's screw designed to suit plastic material specified. Tube die head assembly manufactured in tool steel.
6)All of our machines are made strictly according to CE standard.

Technical Parameters:

Power Supply	3P/380V/50HZ-11KW
Main Screw	Dia. 50mm, Length/Dia. 28/30:1
Raw Material	PLA/Plant Fibre Resin

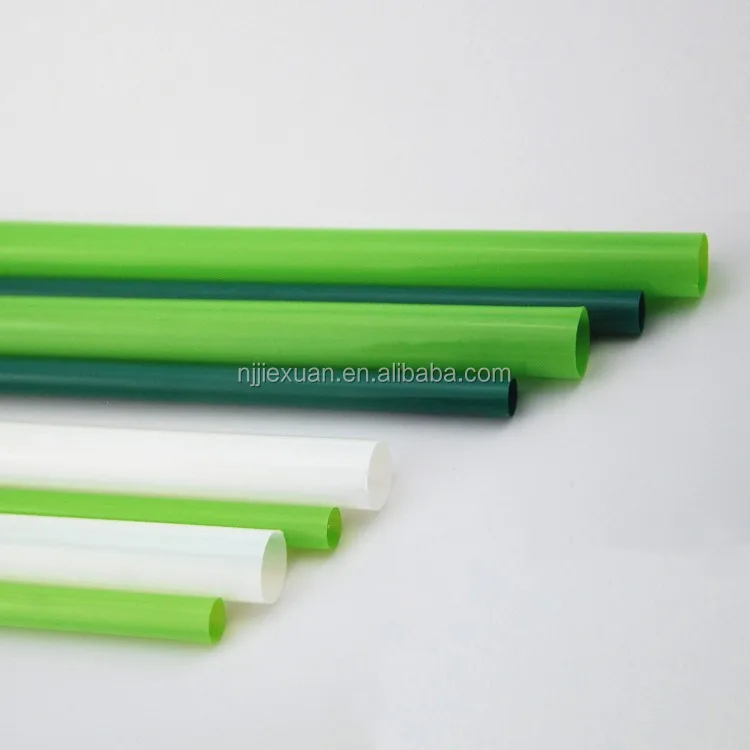

Straw Color	Single Color, Transparent, ivory-white
Capacity	20-30 kg/h
Total Power consumption	20-22KW
Extruder dimension L W H	2.2m1m1.7m
Complete line dimension LWH	10m1m1.7m
Weight of complete line	1000kg

Main parts image

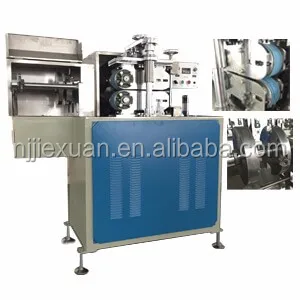

Option1: Spiral straw pulling and cutting machine.

auxiliary equipment of straw making machine which
can make straight straws rotate with spiral lines. Maximum stripes angle can make 160 mm stripes turn around one circle. This machine is composed of drive motor, towing device, and cutting device etc.

Electric parts image
