payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | After Warranty Service: | Video technical support, online support, spare parts |
Voltage: | 220v/380v, 50-60HZ | Health status: | new |
Submitted application: | Flexible Straw Making Machine | Dimensions (L*W*H): | 1500*1500*1700mm |
brand: | Jie Xuan | Certification: | ISO9001 |
Applicable industries: | manufacturing plant | Supply capacity: | 30 sets of flexible straw making machines per month |
Raw materials: | pp straight straw | weight: | 1 ton wooden box with high strength plywood, 1000kg |
Product capacity: | 300/min | Warranty: | one year |
place of origin; place of origin: | Jiangsu, China | Local service location: | not any |
strength: | 1500w | Packaging Details: | High-quality fumigation-free wooden box, one machine, one box, high-strength screws to fix the machine feet |
power supply: | 1.5kW | Video external inspection: | if |
After-sales service provided: | Engineers can repair machinery overseas | Core components: | Bearings, Gearboxes, Motors, Gears |
Marketing Type: | Hot Products of 2020 | Showroom location: | not any |
Mechanical test report: | if | Core Components Warranty: | 1 year |
port: | Shanghai or Ningbo |

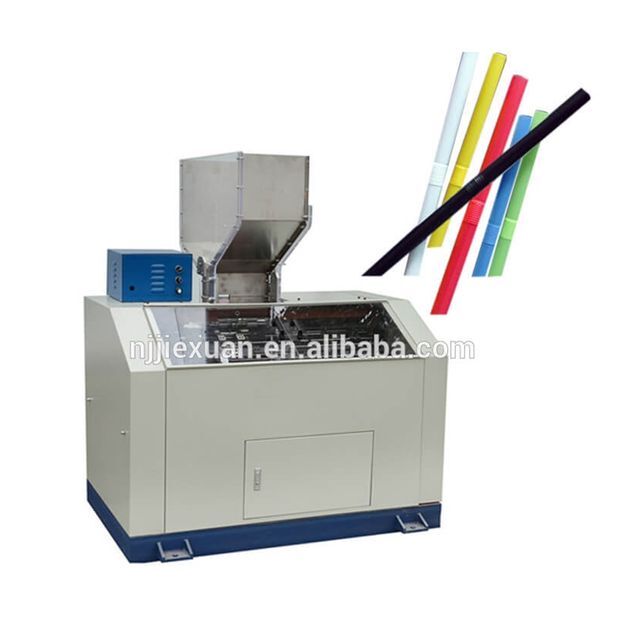

Flexible Straw Making Machine
motor |
1.5kw inverter control | |||
production capacity |
300/min | |||
Specification |
the inside diameter of |
3.8mm |
4.8mm |
5.8mm |
straw thickness |
0.2±0.02mm |
0.2±0.02mm |
0.2±0.02mm |
|
Straight straw length |
165-245mm |
200-260mm |
200-260mm |
|
Flexible straw length |
150-230mm |
185-245mm |
185-245mm |
|
Other specifications can be customized | ||||
Machine size |
1500*1500* 1700mm |
|||
machine weight |
1000kg |
The flexible straw machine automatically bends straight straws into flexible ones. The machine is fully automatic from straight straws to flexible products, requiring only workers to add straight straws to the hopper.

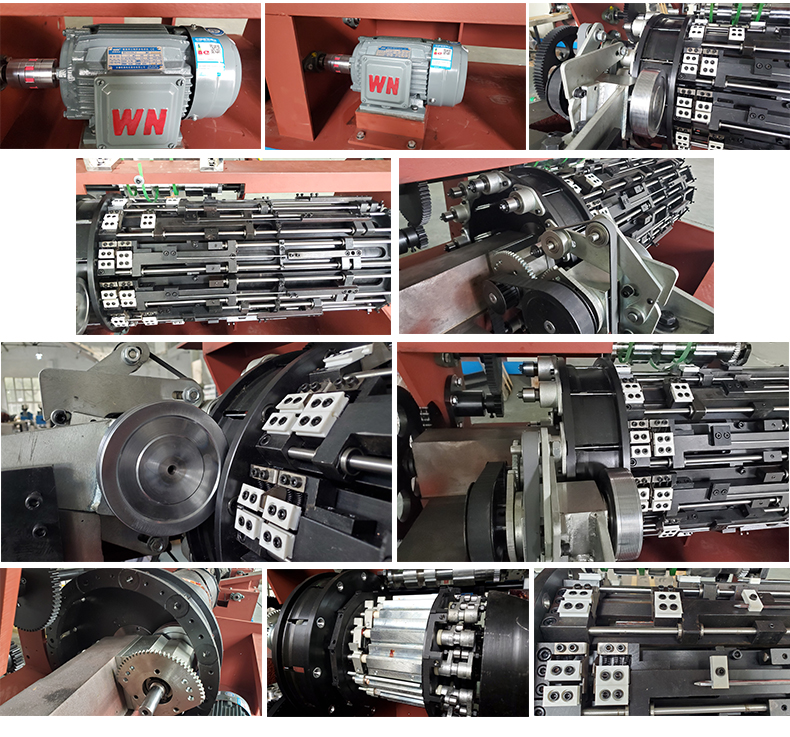

Straight straws are fed from a hopper at the top of the machine, then clamped by 2 manipulators and fed one by one into the main drum of the machine. As the main drum rotates, the straw passes through 2 rotating dies to form indentations. After pressing with 2 robotic arms, a folded indentation similar to shrinkage is formed. Finally, the finished product is automatically output. The main drum can run 12 straws continuously. In addition, the machine has high-speed production capacity.
