SVMC72100 Sabvoton motor controller for Electric Bike In Wheel Hub Motor

Product details
Package Preview:;Continue motor Current Limit:100A;
Features:High power, programable;Production time:3-10 working days;
Packaging Detail:Packed in carton box;Package:Package in carton;
Warranty:14 month;Thermic Probe:KTY83-122;
Motor type:DC Motor;Item:Sabvoton motor controller for Electric Bike In Wheel Hub Motor;
Voltage:24V-72V;Model Number:SVMC72100;
Single package size:24X16X7 cm;Peak Motor Phase Current Limit:260A;
Application:Eletric bicycle/electric scooter;Brand Name:Sabvoton;
Place of Origin:Jiangsu China;Selling Units:Single item;
Single gross weight:3.0 KG;Certification:CCC;

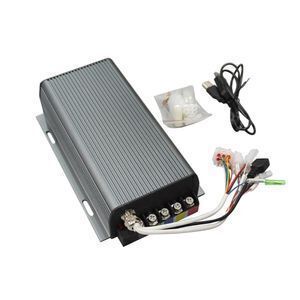

Sabvoton SVMC72100 Sine Wave Programmable Controller



It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 2000-3000W.



Product Description


Key Features

1). Cheap Cost

2). Can match with almost brushless DC motor

3). Programmable

4). Sine wave without noise



Generally SPEC

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 100A

3). Max. Phase Current: 260A

4). Protect Phase Current: 360A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Thermic Probe: KTY83-122

7). Including one controller + USB convertor cable + matched plug

8). controller size: 247mm*146mm*62.5mm

9). Net weight: 2.12kg

10). Default including bluetooth adapter.

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer.

12). Special functions: Reverse, Cruise, Three speed Button, Waterproof, Anti-theft



Notes:

1).We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For no lock type controller, there is warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our drawing.

4). Pls. make sure all the connection is correct before power on.



2. Sabvoton Controller Software Interface

Here are the clear and easy adjustment software interface. Bluetooth adapter are optional, if you want to add it, pls. refer to this link:



3. Sabvoton SVMC controller drawing

Here is drawing of Sabvoton SVMC controller, 247mm*146mm*62.5mm



4. Pin Definition

This is drawing of SVMC controller, you could refer it to make connection and customize CA function if you want to match it with your CA display.



5. Questions before order

1). If you only want to buy the controller from us, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!

6. Other Motor Kits and more controller models

If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.



7. Download (before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.



8. Application

NO QS Motor, No Super EVs!

Company Information

About US

SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.

Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.

SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.

Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.

SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.







FAQ



Q1. Are you trader or manufacture?

A: We're manufacture.



Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.



Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.



05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
