SVMC72100 Sabvoton motor controller for Electric Bike In Wheel Hub Motor

Sabvoton SVMC72100 Sine Wave Programmable Controller

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 2000-3000W.

Key Features

1). Cheap Cost

2). Can match with almost brushless DC motor

3). Programmable

4). Sine wave without noise

Generally SPEC

1). sine wave controller, programmable, with regen function

2). DC Current Limit: 100A

3). Max. Phase Current: 260A

4). Protect Phase Current: 360A

5). Battery Voltage: 24V-72V rated, Max. 95V

6). Thermic Probe: KTY83-122

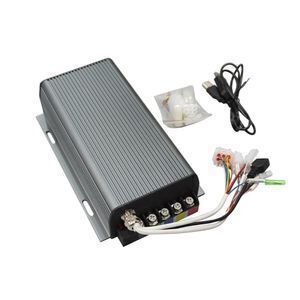

7). Including one controller + USB convertor cable + matched plug

8). controller size: 247mm*146mm*62.5mm

9). Net weight: 2.12kg

10). Default including bluetooth adapter.

11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed switch, Hall speedometer.

12). Special functions: Reverse, Cruise, Three speed Button, Waterproof, Anti-theft

Notes:

1).We have updated the 0-5v e-brake function.

Old: it should be press the brake switch then can achieve 0-5v e-brake funtion.

Update: you can achieve 0-5v e-brake function without press the brake switch.

2). For no lock type controller, there is warranty service, but we could offer our suggestions for you.

3). CA function not support anymore. You could customize the controller according to our drawing.

4). Pls. make sure all the connection is correct before power on.

2. Sabvoton Controller Software Interface

Here are the clear and easy adjustment software interface. Bluetooth adapter are optional, if you want to add it, pls. refer to this link:

3. Sabvoton SVMC controller drawing

Here is drawing of Sabvoton SVMC controller, 247mm*146mm*62.5mm

4. Pin Definition

This is drawing of SVMC controller, you could refer it to make connection and customize CA function if you want to match it with your CA display.

5. Questions before order

1). If you only want to buy the controller from us, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!

6. Other Motor Kits and more controller models

If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.

7. Download (before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

8. Application

NO QS Motor, No Super EVs!
