QS 3kW 138 72V 85KPH Mid drive motor assemble kits NIU Style with EM150SP Controller

Product details
Single gross weight:37.0 KG;Packaging Detail:Carton Box;
Package Preview:;Type:Mid drive motor;
Model Number:Mid drive motor;Efficiency:84~90%;
Output Power(W):3000W;Speed:85kph;
Brand Name:SiAECOSYS;Waterproof Grade:IP54;
Usage:electric scooter/e-bike/e-motorcycle;Color:Black;
Single package size:70X39X25 cm;Warranty:Provide;
Product Name:QS 3kW 138 72V 85KPH Mid drive motor assemble kits NIU Style;Certification:ISO9001, CCC, CE;
Voltage(V):72V as default;Rim Size:12 Inch;
Selling Units:Single item;Place of Origin:Zhejiang China;

QS 3kW 138 72V 85KPH Mid drive motor assemble kits NIU Style with EM150SP Controller



For NIU Style 138 3000W mid drive motor kit assembly, it's new design, especially designd for NIU E-scooter.

It could be 72V 100KPH, avaiable for 12inch wheel kits as default.



QS Motor Specification



QS Motor 3000W 138 70H Mid Drive Motor

Motor Type: BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor

Brand: QS Motor,QSMOTOR

Motor Design: Single axle

Matched Wheel: 12inch Wheel (as default)

Magnet Height: 70mm, 60pcs, 5 pole pairs

Diameter of stator: 138mm

Rated Power: 3000W (peak power, pending)

Rated Voltage: 72V as default

Speed: 90KPH

No-load rpm: 4400rpm without flux weakening, 6500RPM with flux weakening.

Max Torque: approx 56N.m (without Reduction ratio)

Reduction ratio: 1:4.7 (as default)

Max Efficiency: pending

Continuous Battery Current: pending (72V)

Peak Battery Current: 120A (72V)

Suggest Peak Phase Current: 450A

Thermic Probe: None (KTY83/122 is available for sample).

Working Temperature: pending

Single Hall Plate with waterproof connectors

16mm² Cross Section of Phase Wire (not include insulation layer)

Hall Sensor Phasing angle: 120 degree

Waterproof Grade: IP54

Color: Black

N.W./G.W.: Pending   Package Dimension: Pending/piece

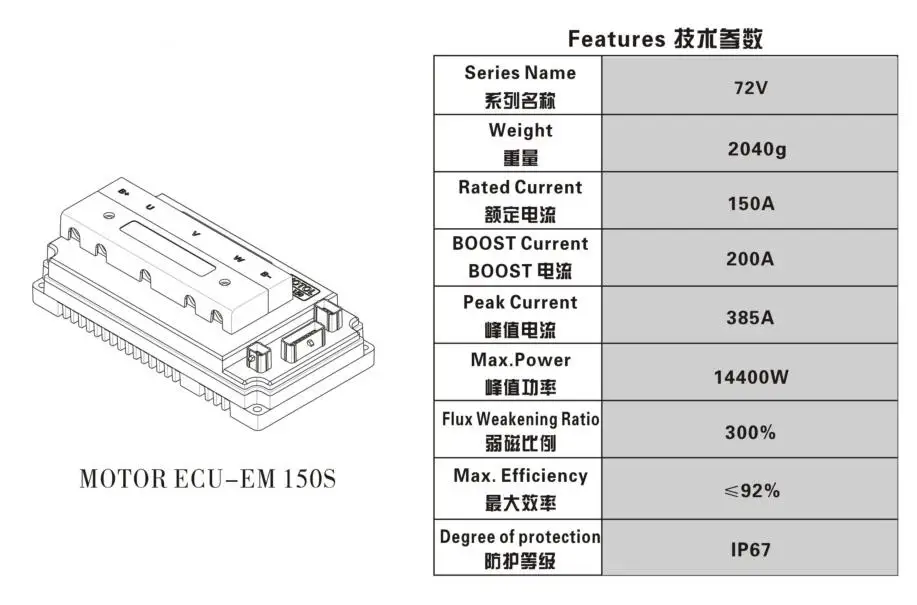

Controller





The Kits include as below.

·1pc QS 3000W Mid Drive Motor with Left/Right fork

·1pc VOTOL EM-150SP, 72V 360A, SINUSOIDAL WAVE BLDC MOTOR CONTROLL (customized)

·1pc Rear synchronous belt wheel

·2pcs Decoration cover

·1pc Rear axle with screws

·2pcs Adapter

·1pc Synchronous belt

·1pc 12inch Aluminmun wheel

·1pc fender

·1pc Belt shield

·1pc Belt side shield

For the pakage, we will pack in two carton with wooden support.

70cm*39cm*25cm, 22.53kg

51cm*48cm*37.5cm, 12kg

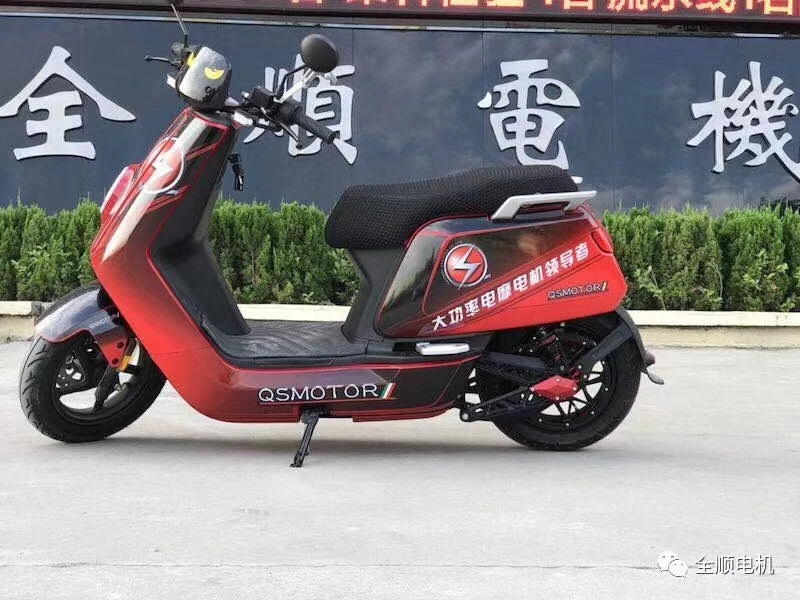

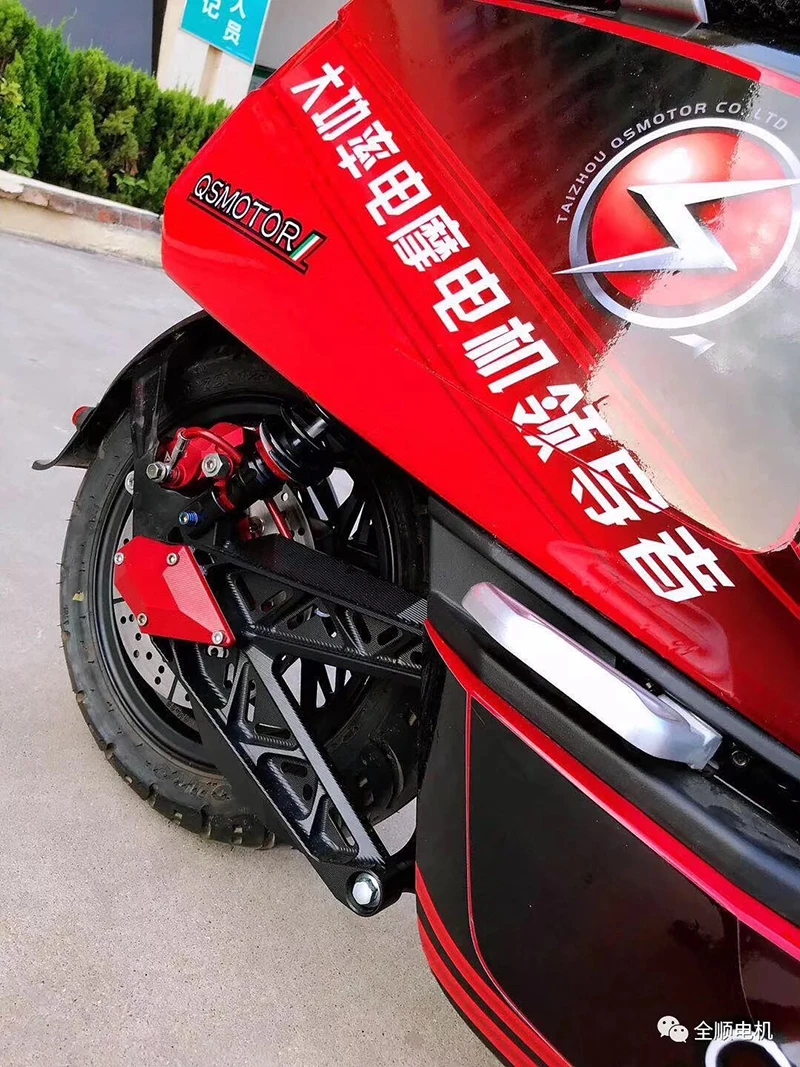

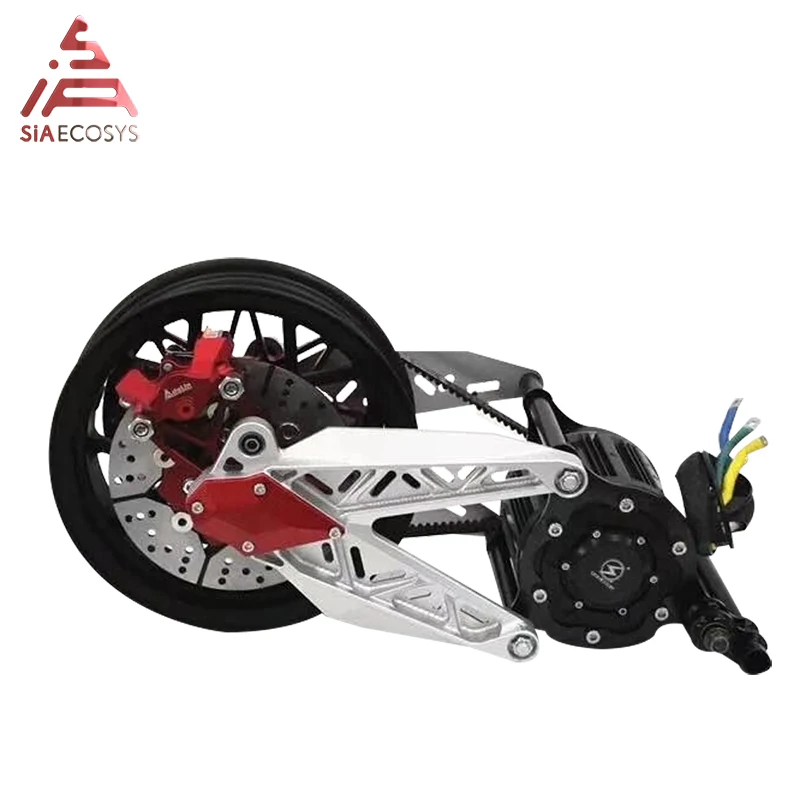

Pictures Show







 Drawing

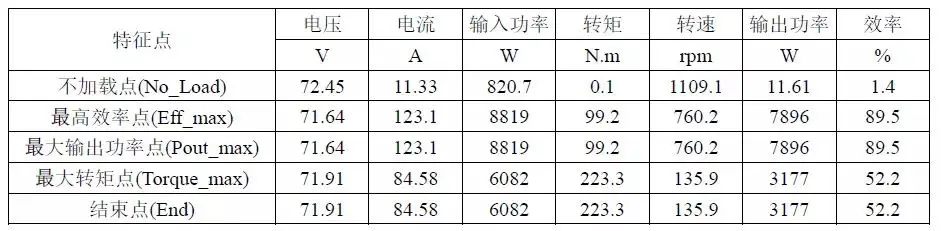

 Performance Test



3000W 138 mid drive motor with  VOTOL EM-150SP controller, 1:4.7 Reduction ratio

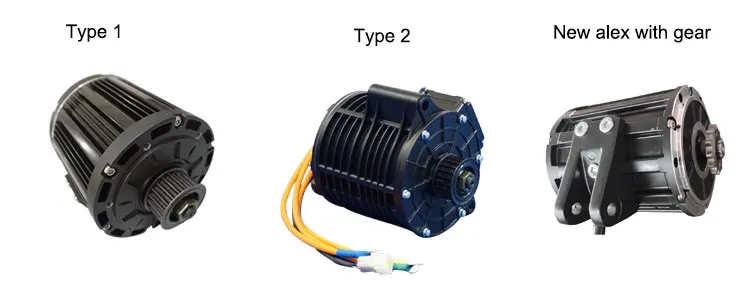

More other styles



How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
