4000W 10kw peak 273 40H V3 brushless electric car hub motor hybrid conversion kits

Supplier: Taizhou Sia Trading Co., Ltd.
Region: Zhejiang, China
Contact: Ms Yang Jasmine
Price: $1730.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	Provide;	Single package size:	43X43X34 cm;
Selling Units:	Single item;	Waterproof Grade:	IP54;
Place of Origin:	Zhejiang China;	Brand Name:	SiAECOSYS;
Single gross weight:	68.0 KG;	Package Preview:	;
Efficiency:	85~92%;	Rim Size:	14inch & above wheel rim;
Output Power(W):	4000W;	Packaging Detail:	Carton Box;
Model Number:	Single Shaft Car Hub Motor;	Speed:	40km/h-100km/h;
Color:	Black;	Certification:	ISO9001, CCC, CE;
Product Name:	4000W 273 40H V3 brushless electric car hub motor conversion kits;	Type:	Brushless dc motor;
Voltage(V):	48v-96v;	Usage:	E-car;

4000W 10kw peak 273 40H V3 brushless electric car hub motor hybrid conversion kits

The Electric Car Kit includes most of things needed (except battery/charger) to convert your standard car into a top-of-the-line performance electric car, which delivers unequaled performance and reliability.

You'll be out cruising along at approx. 60-120kph speed.

1.Key feature:

1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2. It could be installed in wheels, and easy to be hybrid car.

3. 2wd, it could be 72V 100KPH, 2*266N.m peak torque.

4wd, it could be 72V 120KPH, 4*266N.m peak torque.

4. Easily to make 4-wheel drive, which could spot turn.

5. Support regenerative braking

6. High efficiency: 85~92%

2.Notes:

1. Battery and charger are not included in package.

2. The battery voltage depends on your application. (72-144V)

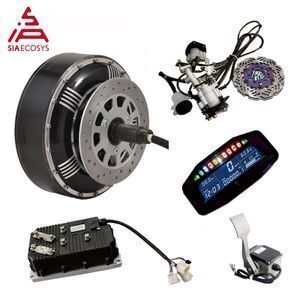

3.Package Includes:

2x 273 4000W 273 40H V3 E-Car Hub Motor

2x KLS7245H Controller

1x Throttle Pedal

1x X8-E Speedometer

1x 04type 1 tow 2 Hydraulic Disc brake system (with disc brake plate)

QS Motor Specification

Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Singleh axle without rim
Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 4000W (8kW peak in few seconds)
Rated Voltage: 48V as default (48V-144V, optional)
Speed: 80KPH as default (24-90KPH, optional)
kV:11.46/143.54/15.69/17.71 etc.
Max Torque: approx 266N.m
Max Efficiency: 86-91%
Continuous Battery Current: 104A (48V)
Peak Battery Current: 210A (48V)
Suggest Peak Phase Current: 228-530A
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
Dual Hall Set with waterproof connectors
10mm² Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 23.0kg/24.7kg
Package Dimension: 43cm*43cm*34cm/piec

PS. Normal Disc brakes is PCD3*80mm, PCD 58mm. It might get loose during driving, so we open new mold to be PCD4*114.3mm, M12.

Drawing

2. KLS7245H, 24V-96V, 350A, Sinusoidal BLDC Motor Controller

General Spec .:
1. Programable, support regenerative braking
2. Include function Cable, RS232 daptor, USB to RS232 connector
•Configurable battery voltage range, B+. Max operating range: 18V to 90V.
•Motor Current Limit, 10 seconds boost: 350A.
•Motor Current Limit, continuous: 140A
IP66+Fuse+better performace in termal dissipation

3. 0-5V Electric Car Throttle Pedal

Throttle Pedal Hall type : JKH model (match with our motor & controller)
Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
Deafult: 5v input voltage (depends on controller design, for our matched controllers, youcan choose 5v input voltage), 0-5v output voltage.

4. 48-100V Programmable Electric Car Speedometer

Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

5. 1 tow 2 04 type Hydraulic Disc brake system (with disc brake plate)

04 dayang left & right 38mm piston caliper with mechanical parking brake (pull type)
hydraulic service brake by foot
pitch of mounting 80 & 103mm
hoses 220cm + 2 x 80cm
T-shape hose connector
mechanical parking brake cable 95cm + 2 x 115cm (optional)
220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thicknees 4mm)
Suitable for QS Motor 273 Single Shaft Hub Motors

How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
