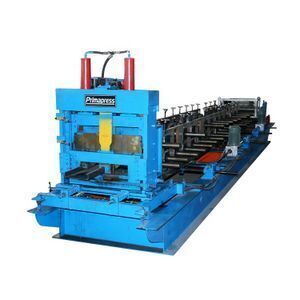

C Z purlin steel plate roll forming machine
-
Supplier: Hebei Feixiang Roll Forming Machinery Co., Ltd. -
Region: Hebei, China -
Contact: Mr Sam Li -
Price: $15000.00 /set -
Min. Order: 1 set
| Thickness: | 1.5-3mm; | Payment terms: | T/T,L/C; |
| Delivery time: | 30 working days; | Production Capacity: | 10-15m/min; |
| Showroom Location: | India; | Package Preview: | ; |
| Brand Name: | Xingbo; | Supply Ability: | 60 Set/Sets per Month We can also produce more in our ability for customer's request; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Key Selling Points: | Automatic; |
| Payment Terms: | L/C,T/T; | Type: | Steel Frame & Purlin Machine; |
| Voltage: | 380V,50Hz,3Ph; | Work Pressure: | 20p; |
| Place of Origin: | Hebei China; | Color: | As customer's request; |
| Cutting: | Hydraulic cutting; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas; |
| Automation: | Automatic; | Local Service Location: | India; |
| Port: | Tianjin Xingang; | Dimension(L*W*H): | 65008130081400mm; |
| Weight: | 5.3t; | Packaging Detail: | Simple waterproof package fit for ocean shipping; |
| Control parts: | Delta PLC; | Power: | 11kw; |
| Product name: | C purlin machine; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ; |
| Condition: | New; | Certification: | ISO9001:2008,CE; |
| Warranty: | 1 Year; |
C Z purlin steel plate roll forming machine
1. Profile | 1. effective width: 80-300mm; 2. material thickness: 1.5-3.0mm; 3. Profiles as attached below; |
2. Process flow | Decoiling--feeding---levelling--forming---measuring-- punching---cutting---production |
3. Decoiler | Automatic hydraulic decoiler 1. coil inner diameter: 450-700mm 2. max coil width: 600mm 3. carrying capacity: 1500kg 4. hydraulic power: 1.5kw 5. oil pump inner diameter: 120mm 6. pressure: 10Mpa 7. Photo as attached below |
4.Forming device | 1. Shaft material: 45# steel, outer diameter 80mm; Roller material: 15GCR bearing steel treated HRC 58-60° 2. Rollers: 5steps levelling rollers, 12steps forming rollers,2 steps feeding rollers, 4steps side roller 3. Transport: by chain 4. Forming speed: 5-10m/min 5. Motor: 15kw 6. Dimension & weight 10.5x1.7x1.4m 7. Weight: 4.5tons 8. Photo as attached below |

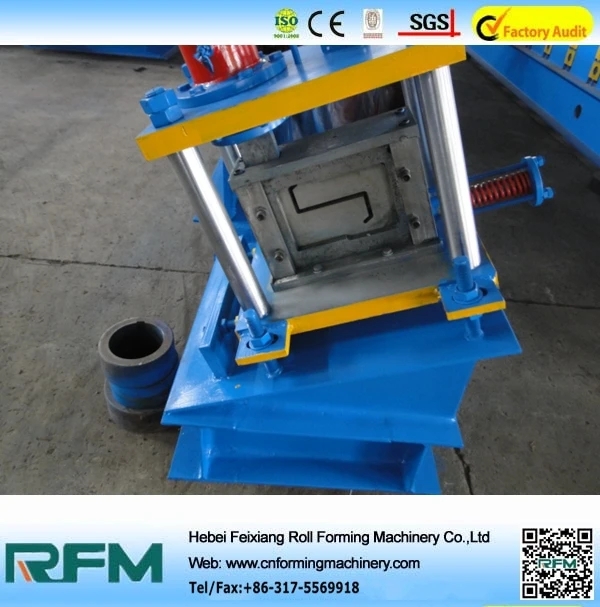

5. Cutting device | 1. Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62 2. Cutting system: automatic hydraulic cutting, stop and then cut; 3. Photo as attached below |
6.Controlling device | 1. screen: 5.7inch Taida touching screen from Taiwan 2. PLC: Taida DVP14ES from Taiwan 3. coder: ENC-1-1-1T-24 from South Korea 4. Photos as attached below |
7. Hydraulic | 1. Advanced hydraulic system from Taiwan 2. Power: 15kw |
8. Spare parts | 1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs; 2. rubber mat 1 pcs; 3. bolt spanner 1 pcs; |
9.Payment and terms | 1. Payment: 30% T/T deposit in advance and balance after buyer's inspection confirmation before shipment; 2. Delivery: within 45 days after receipt of deposit |

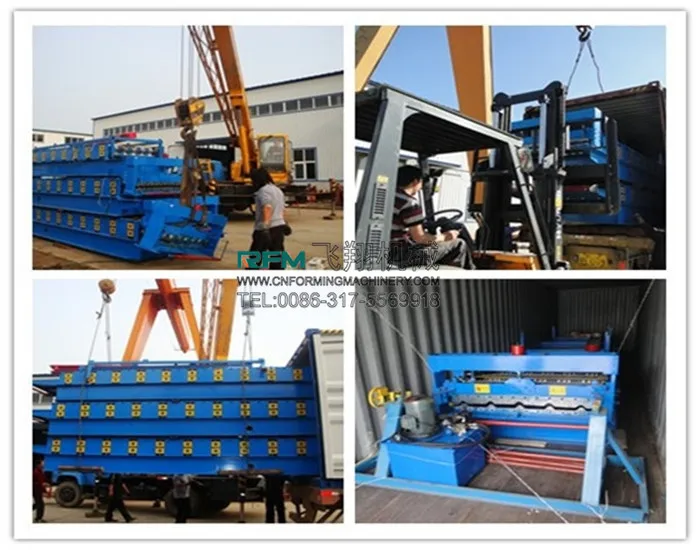

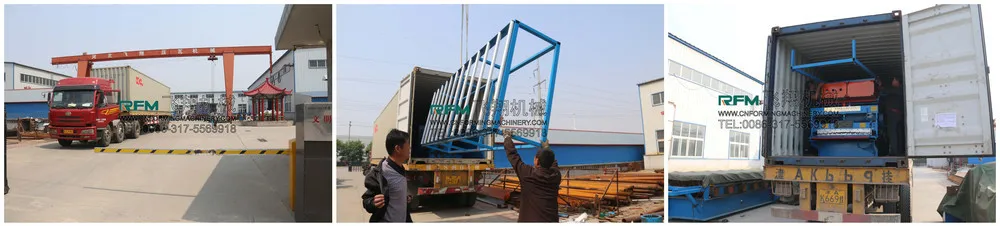

The roof tile roll forming machine main body is naked; The control box, hydraulic station and other spare parts are packed with plywood box. 2, LOADING SIZE: This roof tile roll forming machine body is about 10X1.8M, and other relative parts, normally need one 40' container. The roof tile roll forming Because of the long trip and your super trust,we will make sure machine can be appeared in front of you in fully good condition,you will fall in love with it with first glimpse.
To produce the machines for roof tiles, FEIXIANG is taking EUROPEAN quality standard,choose the best material and components, and adopting our 15 years experience, FEIXIANG achieves that the machine capacity is double of the competitors, and only 1 worker to operate.
-
