Certification: | CE; | Dimension(L*W*H): | 2500*800*1500 mm; |
Packaging Detail: | Plastic wrapping machine, wooden box packaging; | After-sales Service Provided: | Free spare parts; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Voltage: | 220/380V; |
Brand Name: | GRT; | Key Selling Points: | Multifunctional; |
Material: | Stainless steel; | Place of Origin: | Henan China; |
Type: | DEHUMidifier; | Applicable Industries: | Food & Beverage Factory,Farms,Food & Beverage Shops; |
Speed of Screw: | 12 r/min; | Warranty: | 1 Year; |
Weight: | 780 kg; | Screen Hole: | <2mm; |
Power: | 5.5 (kw); | Application: | Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,Food, medicial waste ,cotton fiber and so on; |
Hydraulic Pressure: | 1-5Mpa; | Condition: | New; |

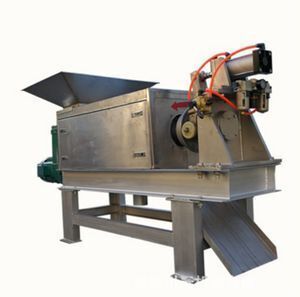

Fruit vegetable plant Juicer Dehydrator
1⋅Plungertype pump provide oil to hydraulic system pressure and control the pressure through the adjustable pressure relief valve,Two fuel tanks mounted on the rea bearing seat,to control the size of the material outlet and the moisture of the slag through piston rod extending.
2⋅The installation direction of extracting screw and conveyor screw of double extractor is in opposite direction
3⋅The outlet is conical body and controlled by the hydraulic cylinder or spring, to adjust the hydraulic or spring to adjust the strength. The material contacting part are made of stainless steel.
Machine Structure
There are machine rack, feed section, press section, transmission parts, electric parts.
Our machine has high strength, high load pressure, no deformation, clogging, corrosion
resistance,wear resistance, non-skid, easy maintenance, long service life characteristics.
Application
1⋅all kinds of bran,sea buckthorn fruit,ginger (to be broken),bamboo shoots and other fruit and vegetable juice
2⋅lees after fermentation of rice bran, sawdust, wood fiber, bagasse, tea slag dewatering; through anaerobic fermentationf cassava residue after dehydration; Gynostemma, Ula grass, celery, the dregs (nonsmooth), etc. dehydration;Sweet sorghum, wheat straw, rice straw, reeds, etc. dehydration
3⋅garbage and other environmental industries dewatering.
4⋅The pressure can be adjusted easily.
parameter
Model | GRT-SP300 | GRT-SP400 | GRT-SP500 |
voltage | 380V | 380V | 380V |
power | 5.5 KW | 15 KW | 18.5 KW |
size | 2920*520*1200 | 3780*810*1550 | 4410*826*1720 |
weight | 780kg | 1500kg | 2240kg |
handling capacity | 1.5T | 3T | 5T |
Mesh size | 200 | 300 | 400 |
Material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
