Processing type: | Continuous type; | Type: | Fluid Bed Drying Equipment; |
material: | stainless steel; | Weight: | 3.5T; |
Place of Origin: | Henan China (Mainland); | Condition: | New; |
Single gross weight: | 3,500 KG; | Delivery Detail: | 0 days after payment; |
Voltage: | 380V,50Hz,3Phase; | Power(W): | 5-30KW; |
After-sales Service Provided: | Online support; | Brand Name: | GRT; |
Heat source: | Gas etc; | Certification: | CE ISO GMP; |
Application: | Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing; | Warranty: | 1 Year; |
Single package size: | 800X130X400 cm; | Selling Units: | Single item; |
Dimension(L*W*H): | 8*1.3*4.0m; |

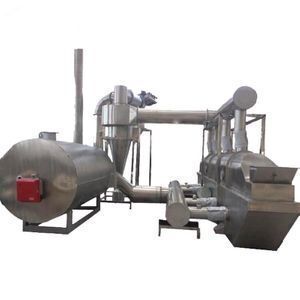

GRT industrial Vibrating fluid bed dryer
Material goes evenly into the bed through feeding conveyor and feeder,under the action of the vibration force,the material moves up forward continuously along the horizontal direction,while undergoes heat exchange with the hot air coming up from bottom,the moisture of material is evaporated rapidly,and the wet air is discharged from the exhaust fan,and the material is fully dried and discharged from the discharge port.
Features
1.adjustable weir plate is set at the discharge port,by adjusting the height of the weir plate to control stayed drying time.
2.perforated plate adopts back pressure process to ensure flatness of perforated plate.
3.the whole electric heating treatment is applied to the lower bed after its completion of production,eliminating the welding gravity,improving the strength of the bed.
4.the center tube which is equipped with vibration motor is welded with reinforcement plate according to the angle of vibration radiation, so that the material is uniformly fluidized.
5.the upper bed is designed to be fixed,there is a soft connection with the lower bed,reducing the load of vibration motor,while reducing the strength of the upper bed.
Application
Parameter
MODEL | GRT-VF-6*0.6 |
VOLTAGE | 380V,50HZ,3PHASE (CUSTOMIZED) |
HEAT SOURCE | BIOMASS,COAL ETC |
TOTAL ELECTRICITY POWER | ABOUT 21 KW |
VIBRATION MOTOR | 1.1KW/PC,1 PIECES (FREQUENCY AND ADJUSTABLE) |
DRYING TEMPERATURE RANGE | RT-150 °C |
HOT AIR BLOWER | 7.5 KW |
INDUCED FAN | 11 KW/PC,1PC |
COLLECTING BUCKE | 200L.THICKNESS 3MM |
CYCLONE SEPARATOR | MC-84 THICKNESS 3MM |

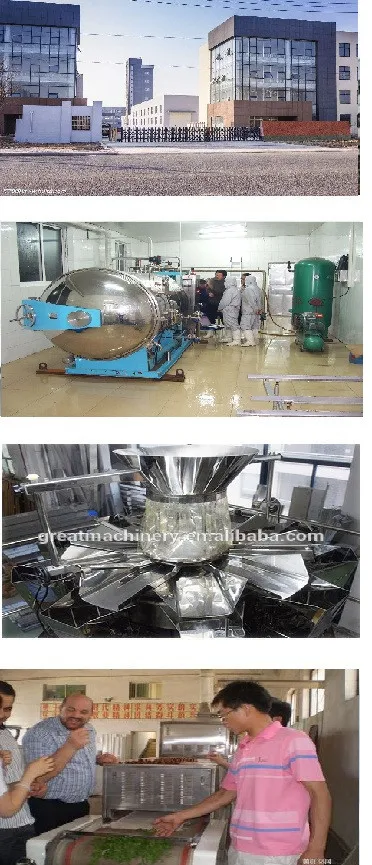

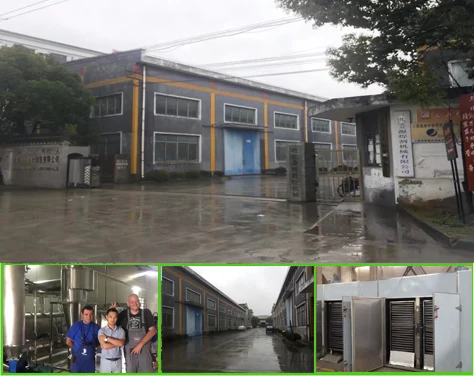

Great Machinery Equipment (zhengzhou) Co., Ltd.
2007 sees the company growth and its business scope enlarge from drying machine to a complete production line,such as washing machine,cutting machine,and packaging machine . Zhengzhou Great machinery Equipment Company is a integration of high-tec research,production,sales and service with total investment of 5 hundred million located in High-tec development zone in Zhengzhou city.
The product is well wrapped by the foam film, wooden packaging
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
