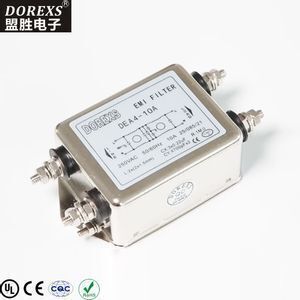

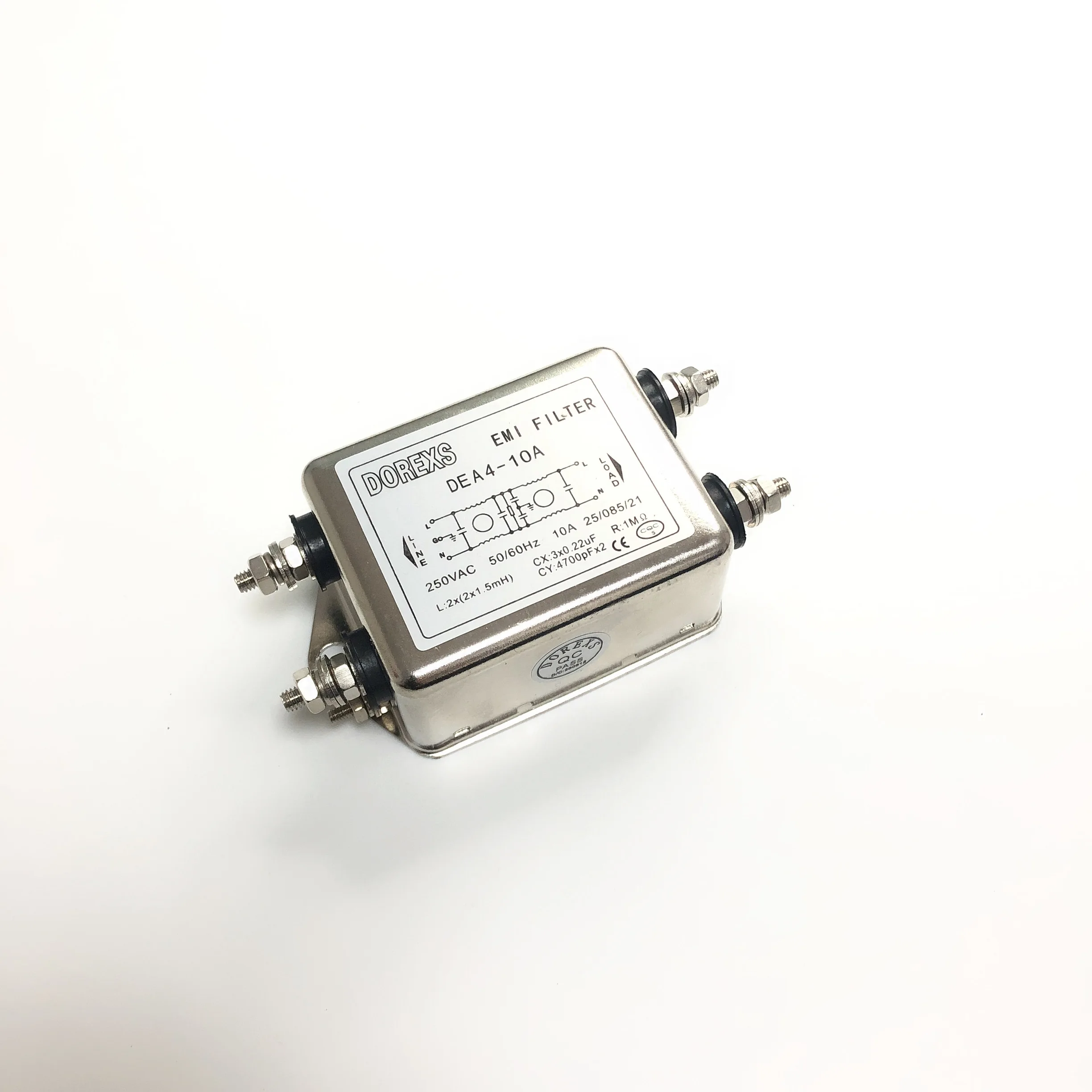

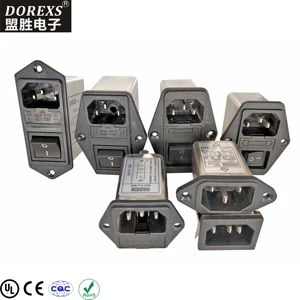

EMI Filters Single phase AC Filters Medical Grade EMI Power Line Filter 1-50A

Product details
Item:DEA4;Packaging Detail:inner: blow moulding plate +outer: strong A-A 5 layer carton packing for RFI EMI LIne Filters;
Brand Name:DOREXS;Insertion Loss:30-100dB;
Payment Terms:L/C,T/T,Western Union;Nominal Center Frequency:50/60Hz;
Supply Ability:200000 Piece/Pieces per Month RFI EMI LIne Filters;3dB Bandwidth:5-10%;
Application:Electronic Equipments;Rated Current:1A~10A;
Test Voltage(1 min):Line: 1500 VDC;Model Number:DEA4;
Package:Carton;Certification:CE CQC;
Input Impedance:50ohm;Package Preview:;
Product Name:EMI Filter;Place of Origin:Sichuan China;
Rated Voltage:115/250vac;Type:EMI Filter;
Port:Chengdu, Shanghai, Guanzhou,Shenzhen;Case:Metal Case;
Transfer Function:Low Pass;Stopband Attenuation:20~100dB;

Product Description

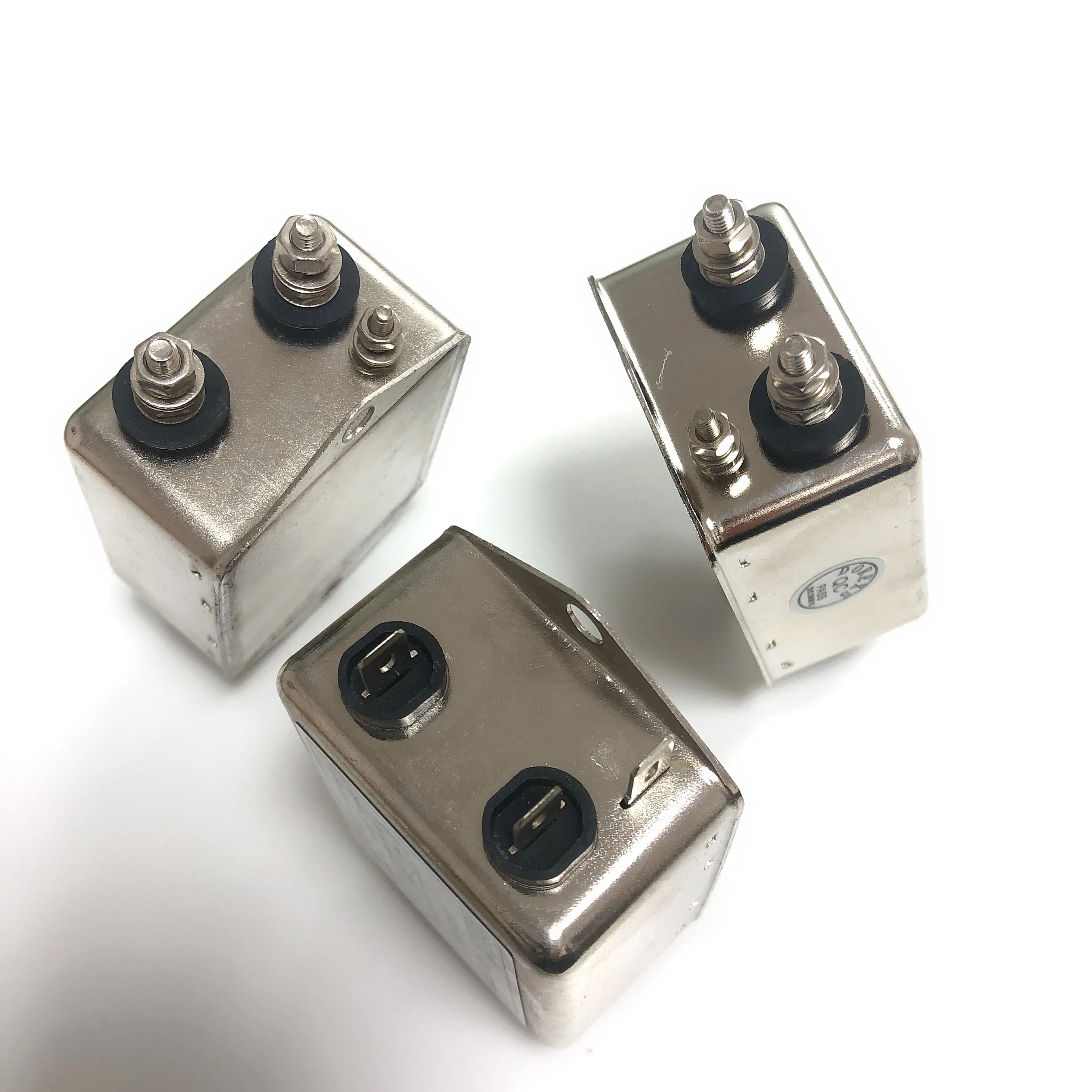

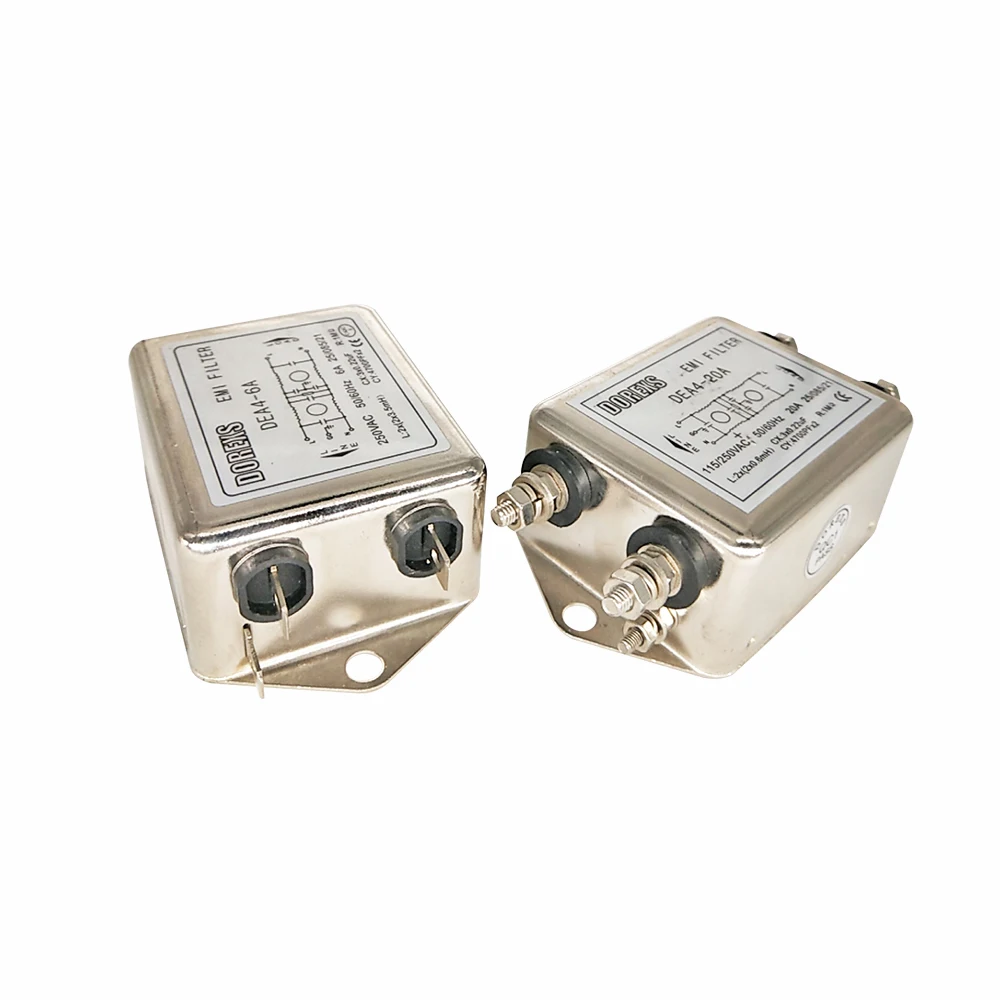

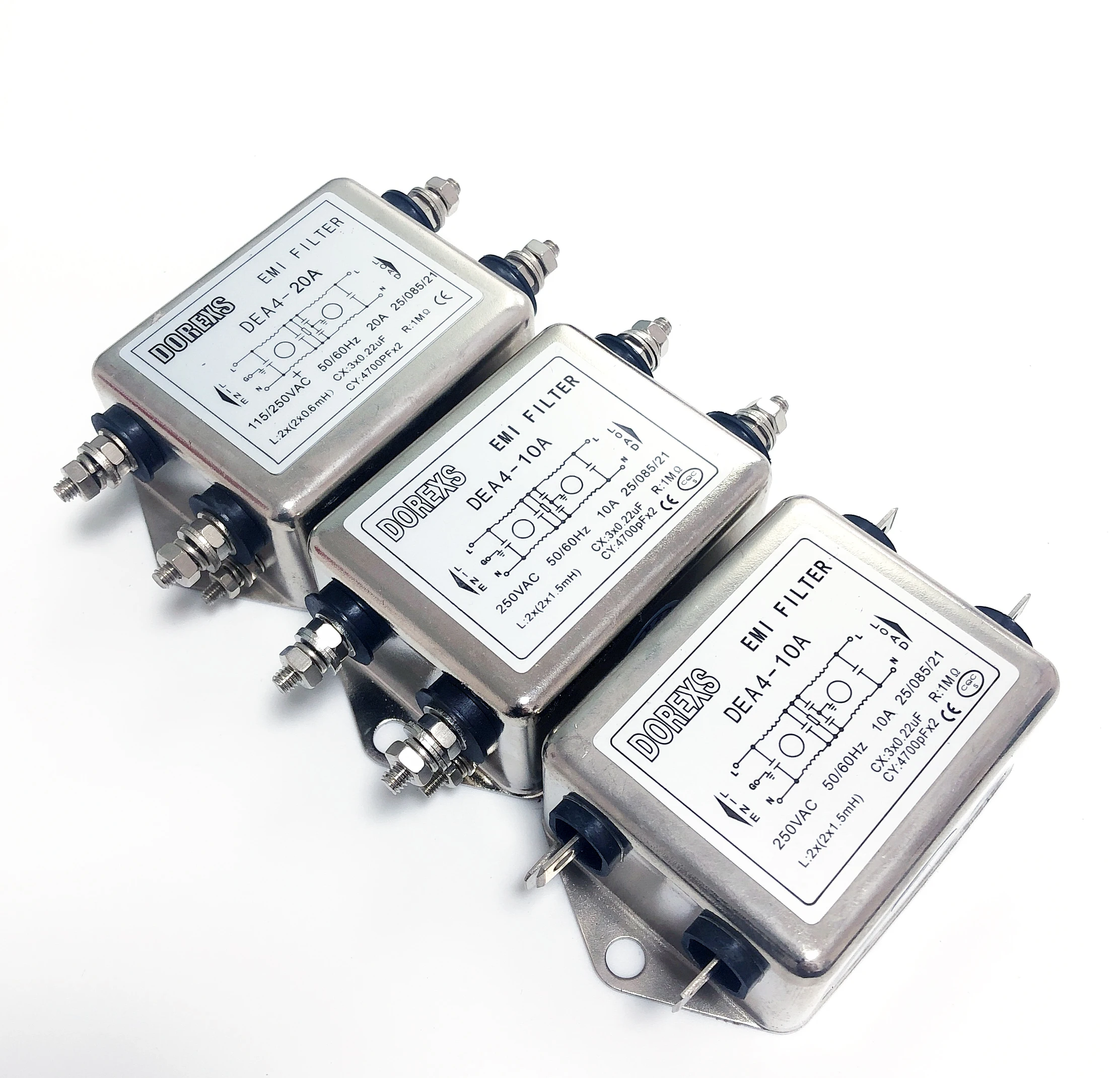

This kind of Two-stage EMI Filter is a reactance type low pass filter installed in the power supply input of electronic equipment. It is made of high quality imported components, thus it has obvious filtering effect. It uses two-stage filter, which has better noise removal effect and can suppress the noise transmitted through the power grid cable. In addition, the Two-stage EMI Filter can improve the sound quality of amplifier by improve resolution to make background quiet. It also has the properties of high quality, precision design, delicate outlook, small size as well as durability. It is widely applied for precision measuring instruments, automatic systems, light equipment and others. The Two-stage EMI Filter is an important tool for modern information society, and it is highly praised by our customers all over the world due to advanced technology.



Applications

Available for Single-Chip computer systems and switching power supplies.

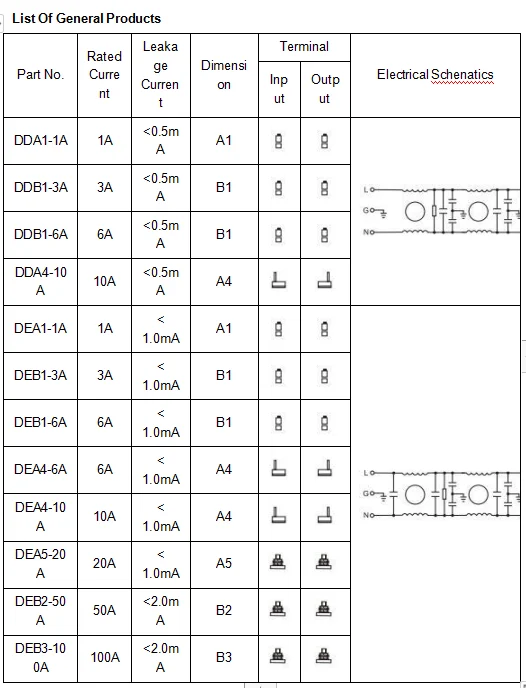

Technical Data

Rated Voltage

115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC(line/line)

1500VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Temperature Rise

<30℃

Climatic Category

25/085/21

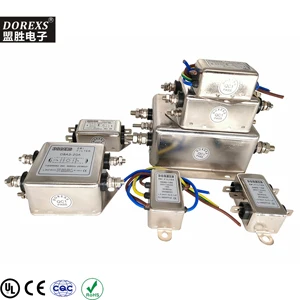

Related Products

                  IEC series↓                   High Performance Series↓







              PCB Series↓                              Three Phases Series↓







Company Information

Chengdu Meng sheng Electronic Co., Ltd. was established in 2008. The company has established and improved a strict quality control and management system.We provide products and perfect services for customers. After years of development, the company has became a professional manufacture that provides comprehensive EMC solutions, engineering implementation, EMI filtering, pulse group suppression, surge suppression. EMI filter includes military and Industrial level, AC single phase, AC three phases, DC power filter. A variety of products have passed CQC certification. The company can produce zero point five to one hundred Amps power filters in two to four weeks,and can provide EMC pre-testing and technical support to customize various specifications of power filter.

Our products have been widely used in power system, frequency conversion system, digital system, communication system, medical instruments, testing equipment, consumer electronics,and so on.It is the first choice of components to pass EMC test and equipment anti-interference.

FAQ

1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
