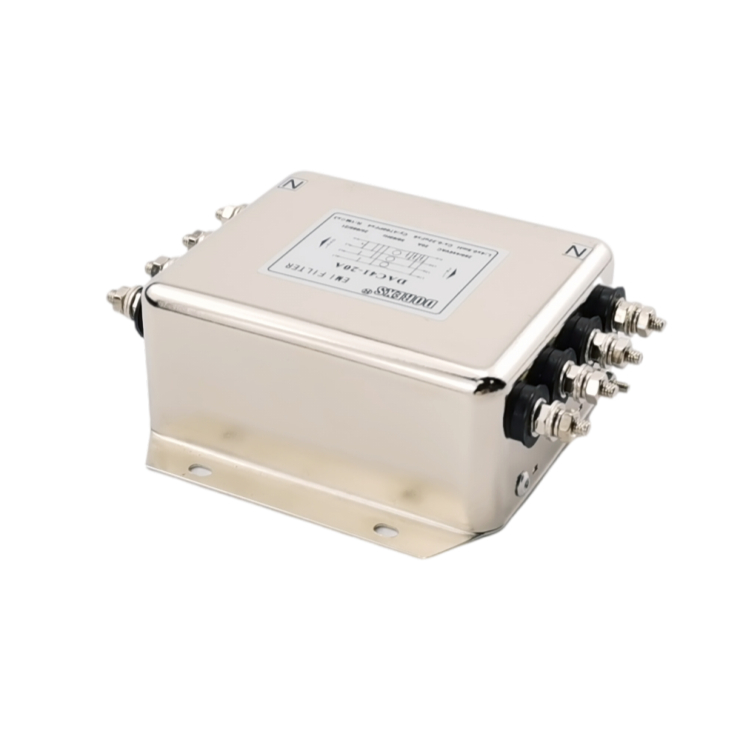

High Performance emc emi filter 3 phase power line filter with 4 bolt emi filter 14 years manufacturer

Supplier: Chengdu Mengsheng Electronic Co., Ltd.
Region: Sichuan, China
Contact: Ms Vivi ZHOU
Price: $18.00 / 1 - 19 pieces
$16.00 / 20 - 499 pieces
$15.00 / 500 - 1999 pieces
$13.00 / >=2000 pieces
Min. Order: 1 piece

Click here to contact

Product details

product name:	3-Phase Power Line Filter with 4 Bolts	type:	EMI filter
Insulation resistance:	>50MΩ@500VDC	input resistance:	50Ω
Conversion function:	Lowpass	brand:	Dorex
tolerant:	±10%	Sales unit:	single product
Height (max):	42MM	Test voltage:	1500VDC (Line/Line) 2150VAC (Line/Ground)
current:	6A-30A	Card:	EMI noise filter
Temperature Coefficient:	-25℃-85℃	Nominal Center Frequency:	0.01-30MHz
Gross weight per piece:	0.800 kg	Install:	bolt
Rated current (max):	30A	Insertion Loss:	20-70 dB
Single package size:	16X13.5X7 cm	place of origin; place of origin:	Sichuan, China
Packaging Details:	Inner: Blow-molded board + Outer: Low-pass filter packed in strong AA 5-layer carton	Installation type:	socket
Model:	DAC41	Rated Voltage - AC:	380/440VAC
Filter Type:	Lowpass	Certification:	CUL CQC CE ROHS
Stop Band Attenuation:	20-70 dB	Rated voltage:	380/440VAC
model:	DAC41	Packaging Preview:
Line frequency:	50/60Hz	pack:	carton
impedance:	50Ω

main products

Rated voltage	380/440VAC
Line frequency	50/60Hz
Test voltage	1500VDC (Line/Line)
	2750VAC (Line/Ground)
Insulation resistance	>50MΩ@500VDC
climate category	25/085/21

This parameter is only a specification product, we support parameter customization

Outline drawing and dimension (mm)

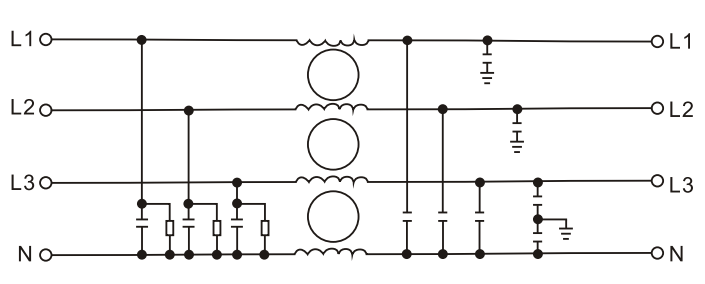

Electrical schematic

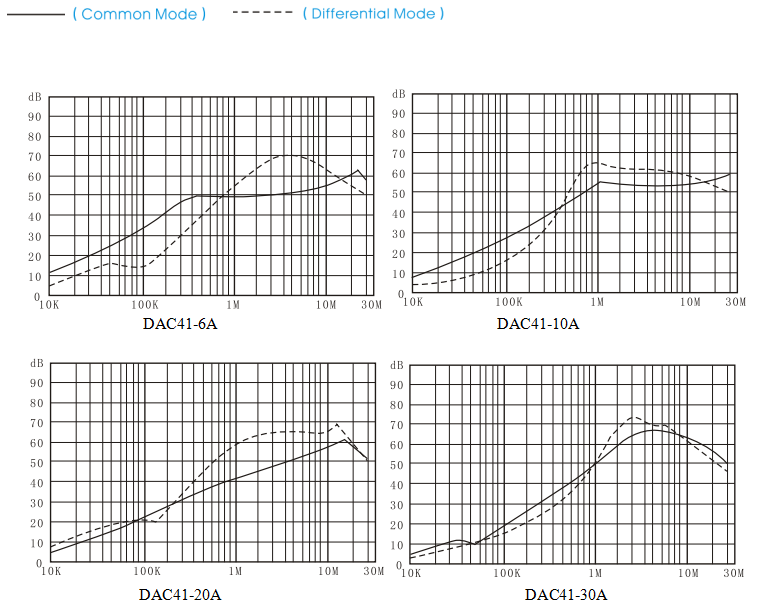

Insertion loss

see more...

quality rate100%

Shipping method: Free samples are available by accepting freight collect

Payment term: 100% T/T, L/C at sight

How to place an order?
You can contact us by email for your order details, or place an order online.

How do I pay you?
After you confirm our PI, we will ask you to pay. T/T and Paypal, Western Union are our most common methods.

What do you do when your customer receives a defective product?
alternatives. If there are some defective items, we usually credit our customers or replace them on the next shipment.

How do you check all the goods on the production line?
We have on-site inspection and finished product inspection. We inspect the goods as they go to the next step in the production process.
