Zixu Mini Portable Handheld Pneumatic Vin Number Stamping Marking engraving Machine for Chassis Number

Product details
Drive type:pneumatic;Dimensions:45*45*55cm;
Certification:CE,ISO;Application:60*20mm;
Single package size:45X45X55 cm;After Warranty Service:Video technical support,Online support;
Local Service Location:Canada,Pakistan,India,Mexico,Thailand,Japan,Sri Lanka,None;Showroom Location:Canada,Brazil,Pakistan,Mexico,UAE,Colombia,Algeria,Uzbekistan;
Machine Type:Pneumatic;Single gross weight:20.0 KG;
Weight:15kg,15KG;Packaging Detail:Each set is wrapped in plastic wrap and packed in a standard export wooden carton lined with foam.;
Selling Units:Single item;Marketing Type:New Product 2020;
Key Selling Points:Easy to Operate;Rated Power:300w;
Condition:New;Core Components:marking head;
Main Axle Rotational Speed:N/A;Brand Name:ZIXU;
Video outgoing-inspection:Not Available;color:blue;
Machinery Test Report:Not Available;Applicable Industries:Garment Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Home Use,Retail,Food Shop,Printing Shops;
Power:300W;Compressed Air( Pneumatic Air):0.2-0.6Mpa;
After-sales Service Provided:Free spare parts,Video technical support,Online support;Warranty:2 years;
Warranty of core components:1 Year;Milling Cutter Diameter:3mm;
Place of Origin:Chongqing China;Repeat accuracy:0.02-0.04mm;
Engraving Speed:3-5 character/s;Feeding Height:10mm;
Type:Vin Number Marking Machine;

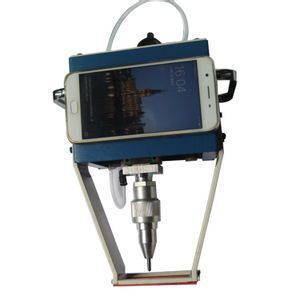

Zixu Mini Portable Handheld Pneumatic Vin Number Stamping Marking Machine for Chassis Number





Zixu Vin Number Marking Machine Main Feature



  • Portable and mini designs, small volume and more practical for using, especially in narrow places.
  • Marking needle uses the alloy material, high degree of hardness ultra wear-resisting, surpasses the domestic similar product.
  • High precision guide linear insure the stable movement with precise position & long service life.
  • Latest Leadshine drivers with fast speed, high precision and stable operation.
  • Adopt Leadshine two-phase hybrid stepping motor, large in output torque, rapid temperature raise and durable in use.
  • Industry T7 control system runs steadily, strong anti-inference capability and environment resistance.
  • Touch-screen operation, intuitive and simple.
  • The casing color can be customized per your request.

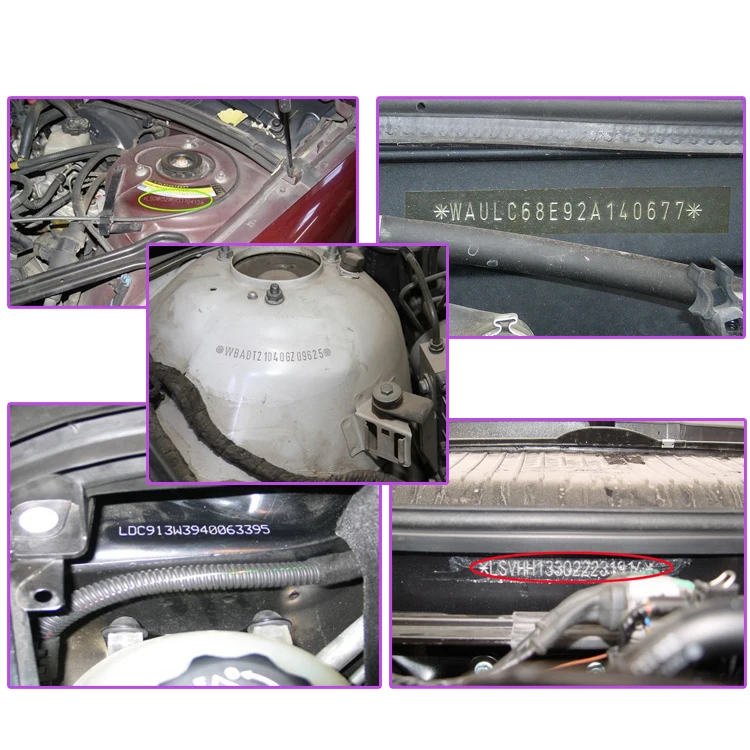

Zixu Vin Number Marking Machine Sample Details

Widely used in all major truck, car, motorcycle manufacturers to mark Vin Number, Chassis Number, Serial Number, contents and patterns on bodywork, frame and chassis even the suface of various of metal materials.





Zixu Vin Number Marking Machine Main Specification



Marking speed

2-5 characters(2x2mm)/s

Stroke Frequency

300times/s

Marking depth

0.01 to 1mm (Vary to the material)



Marking contents

Alphanumeric info, Data Matrix or dot matrix 2D codes,

Shift codes, Barcode, Serial Number, Date, VIN Code, Time,

Letter, Figure, Logo, Graphics and etc.

Stylus Pin Hardness

HRA92/HRA93

Marking area

40x30mm, 80x40mm,130x30mm,140x80mm,200x200mm

Dimensions

320x420x440mm



Marking materials





below HRC60 metallic and nonmetallic materials ,

above HRC60 need special stylus

Repeat accuracy

0.02-0.04mm

Power

300W

Work voltage

AC 110V 60HZ or AC220V 50HZ

Compressed Air( Pneumatic Air)

0.2-0.6Mpa

Connection

 USB and RS-232

Controller

7"LCD touch screen controller

Power type

Pneumatic

Marking directions

up, down, left, right, and the circular arc surface marking

Net weight

12Kg





 Zixu Vin Number Marking Machine Packing & Delivery





  Delviery time

3-10days

Type of shipping

Express,air or sea

Terms of payment

T/T,credit card,western union,paypal

package size

75x55x83cm

Gross weight

22KG

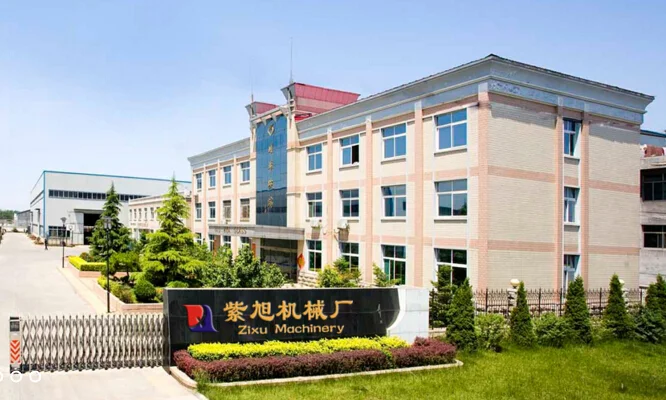

About Us - Chongqing Zixu Machine Works





Established in 2006, Chongqing Zixu Machine Works (hereinafter referred to as “Zixu”) is a professional manufacturer and exporter that is integrating with R&D, production and sales of fiber laser marking machine, CO2 laser marking machine, UV laser marking machine, pneumatic marking machine, electric marking machine, laser cutting machine, marking needle and other relevant accessories. Zixu covers an area of 3,000 square meters and has over 50 employees with the annual sales revenues US$ 3 million. Our factory is located in No. 17 Yunyi Rd., Beibei District, Chongqing City, China, with convenient transportation access.



Over 10 years of efforts, Zixu has become a comprehensive enterprise and an own brand name "CHUKE", "ZIXU", in 2016 set up a branch “Chongqing Chuke Intelligent Machinery & Equipemnt Co., Ltd.”

Zixu has obtained ISO9001, CE, FDA, TUV certificates, all the products adopt international standards, advanced technology on the production and the quality control strictly according to the customer request. Our products are exported to overseas such as America, Europe, India, Brazil, South Korea, Spain and other countries and regions.



OEM services are welcome sincerely, we always ahere to "quality first and service first" and we are looking for global agents, wholesalers in order to further expand markets. Zixu will provide lifelong free training to ensure the stability of the profits of all dealers. Zixu is looking forward to cooperate with customers worldwide and create the better future.
