ZIXU Portable Automatic Pneumatic VIN Number Marking Machine Handheld Chassis Number Dot Peen Engraving Machine for engine

Product details
Core Components:marking head;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Marking window:80x30mm;Selling Units:Single item;
Packaging Detail:package in ply-wooden box;Brand Name:ZIXU;
Application:Metal Marking,50x30mm;Rated Power:300W;
Key Selling Points:Long Service Life;Engraving Speed:5 letters/second;
Package Preview:;Place of Origin:Chongqing China;
Controller:USB PC based controller;Colour:red;
Single package size:45X45X55 cm;Drive type:pneumatic;
Warranty of core components:1 Year;After Warranty Service:Video technical support,Online support,Spare parts;
Single gross weight:18.0 KG;Weight:12kg;
Product name:Chassis Number Coding Machine;Video outgoing-inspection:Provided;
Condition:New;Machine Type:dot marking machine;
Dimensions:340x440mm;Marketing Type:New Product 2020;
Feeding Height:0-350mm;Certification:CE;
Local Service Location:Canada,Turkey,United Kingdom,United States,Italy,France,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Argentina,South Korea,Chile,UAE,Colombia,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;Milling Cutter Diameter:1-5mm;
Min quantity:1 set;Showroom Location:India,Russia,South Africa,Ukraine;
Warranty:1 year;Main Axle Rotational Speed:N/A;
Machinery Test Report:Provided;

ZIXU Free Shipping Portable Handheld Automatic CNC VIN Number Marking Machine Chassis Number Dot Peen Engraving Machine



Hot Sale product







Product Description

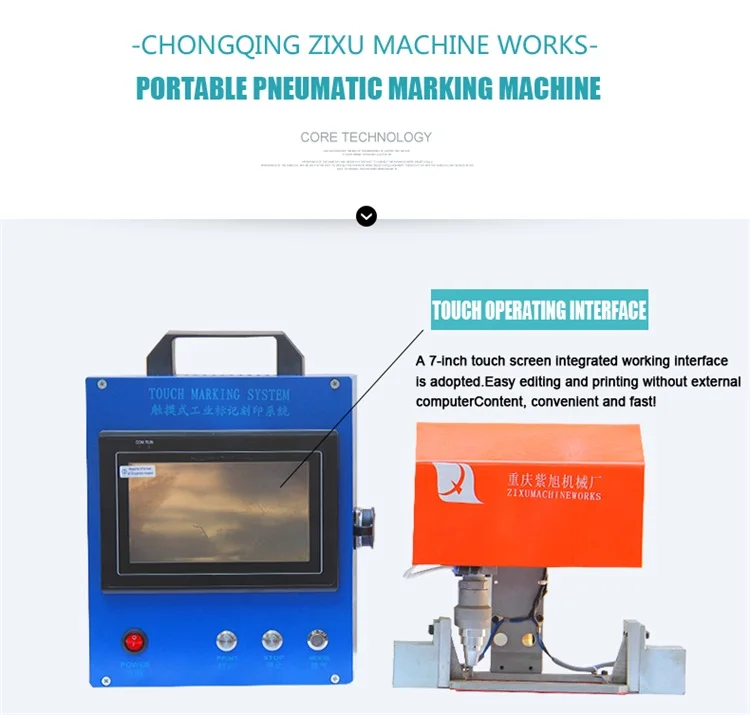

1. 7 inch touch controller and PC controller can be optional.

2. Lightweight, portable design, conveinent for carrying in outgoing.

3. Factory self-processed marking stylus with high hardness HRC60 can mark deep 0.1~1mm.

4. 100 kinds of fonts, can customize according to your VIN code.

4. 2 Years warranty, lifelong free maintenance.

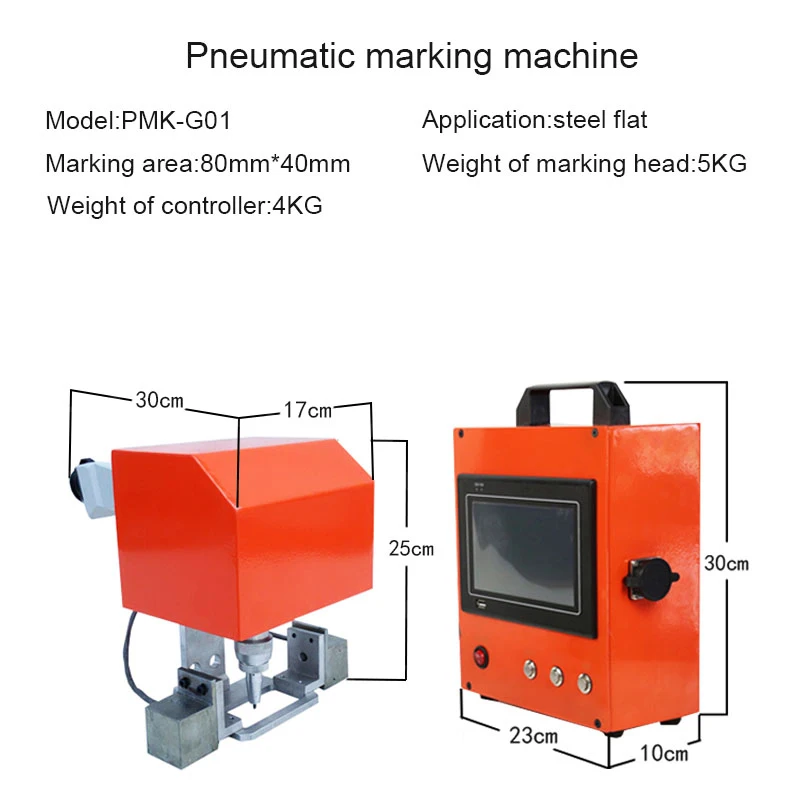

Parameter

 Marking speed

2-5 characters(2x2mm)/s

Stroke Frequency

300times/s

Marking depth

0.01 to 1mm (Vary to the material)

Marking contents

Alphanumeric info, Data Matrix or dot matrix 2D codes,

Shift codes, Barcode, Serial Number, Date, VIN Code, Time,

Letter, Figure, Logo, Graphics and etc.

Stylus Pin Hardness

HRA92/HRA93

Marking area

80x40mm,130x30mm,140x80mm,200x200mm

Dimensions

140x20x240mm

Marking materials

below HRC60 metallic and nonmetallic materials ,

above HRC60 need special stylus

Repeat accuracy

0.02-0.04mm

Power

300W

Work voltage

AC 110V 60HZ or AC220V 50HZ

Compressed Air( Pneumatic Air)

0.2-0.6Mpa

Connection

 USB and RS-232

Controller

PC controller

Power type

Pneumatic

Marking directions

up, down, left, right, and the circular arc surface marking

Gross weight

13kg



 Marking sample


click here visit our shop directly now!!!

Click for More Information!!!



Chongqing Zixu Machine Works

is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters.

Our products include dot peen marking machine, VIN marking machine, gas cylinder marking machine, pipe marking machine, flange marking machine, engine marking machine, electric marking machine and marking stylus for dot peen marking machine.







ZIXU exhibition

We take part in exhibition at home and abroad many times. Sincerely look forward to cooperate with you, warmly welcome worldwide customers.



Package and Shipping

Each machine will be packed in carton box, cooperate with many forwarder and logistics company and give you the best favorable shipping freight and support door to door service.
