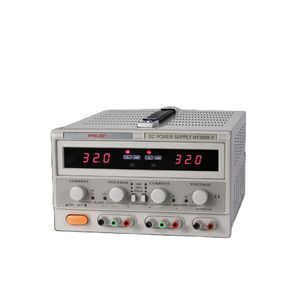

HYELEC HY3005-3 linear mode triple output lab dc power supply

Supplier: Hangzhou Huayi Electronics Industry Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tiffany Liu
Price: $91.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Output Frequency:	50-60Hz;	Brand Name:	HYELEC;
Model Number:	HY3005-3;	Input Voltage:	110V/220V;
Place of Origin:	Zhejiang China;	Supply Ability:	3000 Piece/Pieces per Month;
Payment Terms:	T/T,Western Union;	Packaging Detail:	Standard Neutral shipping packing 1.One piece per carton 2.EPE protective material 3.Size:413424cm 4.G.W.:9KG;
Output Power:	90W;	certification:	CE,ROSH,ISO9000;
Output Voltage:	2*0-30V;	Port:	SHANGHAI/NINGBO;
Output Current:	2*0-5A;

Features:

HY3000-3 series variable DC power supplies are very stable, regulated multiple output DC power supplies allowing continuous adjustment of both the output voltage and current levels.

Technical parameters:

HY3002-3 HY3003-3 output voltage & output current & display HY3005-3	2 x 0~30V, 2 x 0~2A, 5V/3A Fixed out, 2 LED 2 x 0~30V, 2 x 0~3A, 5V/3A Fixed out, 2 LED 2 x 0~30V, 2 x 0~5A, 5V/3A Fixed out, 2 LED
Input voltage	104~127V AC (60Hz), or 207~253V AC (50Hz)
Line regulation	CV≤0.01%+2mv CC≤0.2%+2mA
Load regulation	CV≤ 0.01%+3mv(I≤3A) CC≤0.2%+3mA(I≤3A) CV≤ 0.01%+5mv(I>3A) CC≤0.2%+5mA (I>3A)
Ripple and noise	CV≤0.5mVr.m.s(I≤3A) CC≤3mAr.m.s(I≤3A) CV≤1.0mVr.m.s(I>3A) CC≤6mAr.m.s(I>3A)
Protection	constant current or short-circuit protection
Voltage indication accuracy	LED/LCD±1%+2digits analogue display 2.5%
Current indication accuracy	LED/LCD±2%+2digits analogue display 2.5%
Fixed output	Output voltage: 5V±2.5% Output current: 3A
Line regulation	CV≤0.01%+1mv Load regulation: ≤ 0.1%
Ripple and noise	≤0.5mVr.m.s
Protection	current restricted and short-circuit protection
Environment	0 ~ +40℃ Relative humidity: <90%
Output type	triple output
Dimensions	365 x 265 x 164mm
Weight	8.5kgs

Dual adjustable power supply

Accessories:

1. Manual

2. Power cord

Packing:

1.One piece per carton

2.EPE protective material

3.Size: 41*34*25cm
4.G.W.: 9KG

Company Information:

Hangzhou Heng’ao Electronics Industry Co., Ltd. is a stock enterprise engaged in science, industry and trade. We mainly offer DC power supply and power inverters, which are used in industrial automatization, production process verification and laboratory of college area.

Over 80% of our products are exported to clients worldwide. We have long-term business relations with nearly 70 countries and regions in European, American, Asian, Middle East, and African markets. We also were granted ISO9001 in 2003, CE certificate in 2002 and ROSH certificate in 2008.

We hope more friends to contact us and put forward precious suggestions and opinions, so that we can do better in our products and after sale services. Our commitment is: your satisfaction is our goal, and your trust is the precondition of our development.

Factory Photoes:

FAQ:

Q:what about the products warranty?
A:Usually 12months.

Q:How about the delivery time?
A:Usually for normal item we have goods in stock. the normal lead time for mass production is around 45 days.

Q:Could you OEM for our LOGO?and how about the OEM fee?
A:Yes,we can OEM for your LOGO.The OEM fee we will according your customized details and quantities then discuss with you.

Q:What’s kind of payment you accept?
A:We can accept TT and pay online on alibaba.

Q:What is your MOQ?
A:Our HYELEC brand MOQ is 1pcs.If OEM products,the MOQ according the models.

Q:How many output voltage and current can you supply?
A:We can supply different voltage and current ,and can customized for your want.

Q:Which way for the shipping?
A:We usually shipping small packages by express by air door to door:such as DHL FEDEX UPS TNT and so on.For the large goods,we will discuss with you and suggest that shipping by sea.

Q:Could i get one sample for test?
A:Yes,we can send sample to you.But the sample and express fee need to be paid by your side.
