Factory direct sale 24 port 48 port cat6 ftp utp stp rj45 patch panel

Product details
Package Preview:;Single gross weight:0.8 KG;
IDC:110, Krone, Dual IDC;Place of Origin:Guangdong China;
Brand Name:XXD/OEM;Packaging Detail:Factory direct sale 24 port 48 port cat6 ftp utp stp rj45 patch panel Rectangle box, 1pcs/box, 20pcs/carton for CAT5e 24 Port Patch Panel;
Color:Black/white;Size:19 inches;
T568A or T568B wiring support:YES;Categery:Cat5a, Cat.6, cat.6a, cat.7;
Selling Units:Single item;Single package size:50X10X16 cm;

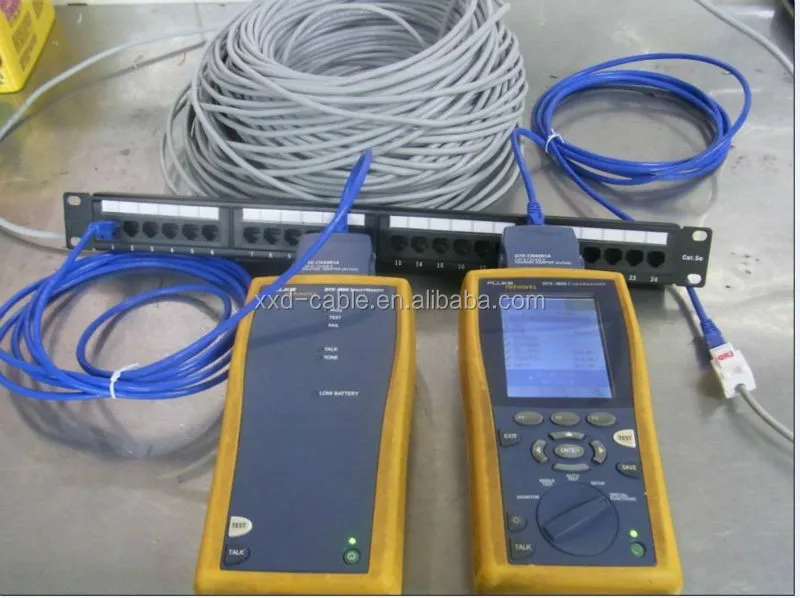

Quality control:100% by testing machine;Model Number:Patch Panel;
Type:UTP/FTP;Ports:12/18/24/48;
Item name:Factory direct sale 24 port 48 port cat6 ftp utp stp rj45 patch panel;Connector Port:RJ45 socket;

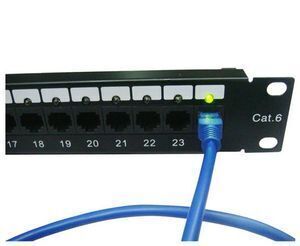

Factory direct sale 24 port 48 port cat6 ftp utp stp rj45 patch panel



Product Description
Product nameMade in china19 inch 24 ports UTP Cat6a Patch Panel
MOQ10PCS
Metal Thickness1.5mm
Port PresentationRJ45 Socket
IDCPC , Accept 22-26 AWG Solid Wire.
PCBFR4 1.6mm(0.04") thickness, 2 layers
Applicable Cable type22,24 and 26AWG (0.64,0.5 and 0.4mm) cable
Return Loss10(dB)
Mating CyclesNot less than 750 times (times)

Specification of Cat6a patch panel:

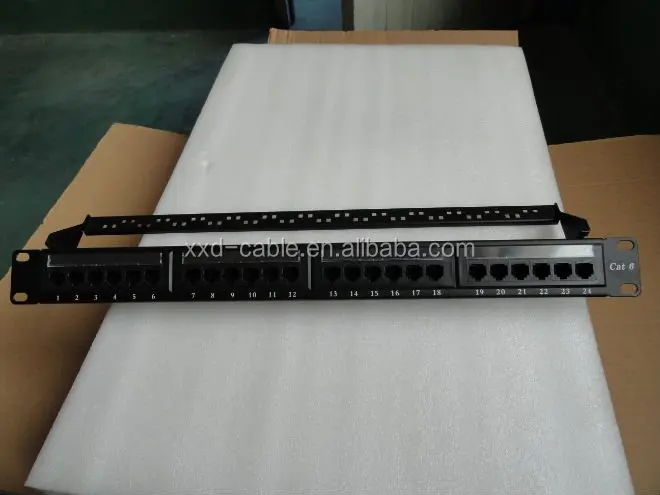

- Cat6a 24 Port Front Access Patch Panel
- Wall mounted CAT 6a component rated patch panel provides excellent performance for data networks requiring maximum speed and bandwidth
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds TIA-568-C.2 Category 6a connecting hardware requirements
- Engineered to provide 110 IDC termination reducing installation time
- Used with ICPCSJ CAT 6a patch cords ICACSPDT00 110 punch down tool and ICCMSR19XX distribution rack
- Includes installation instruction

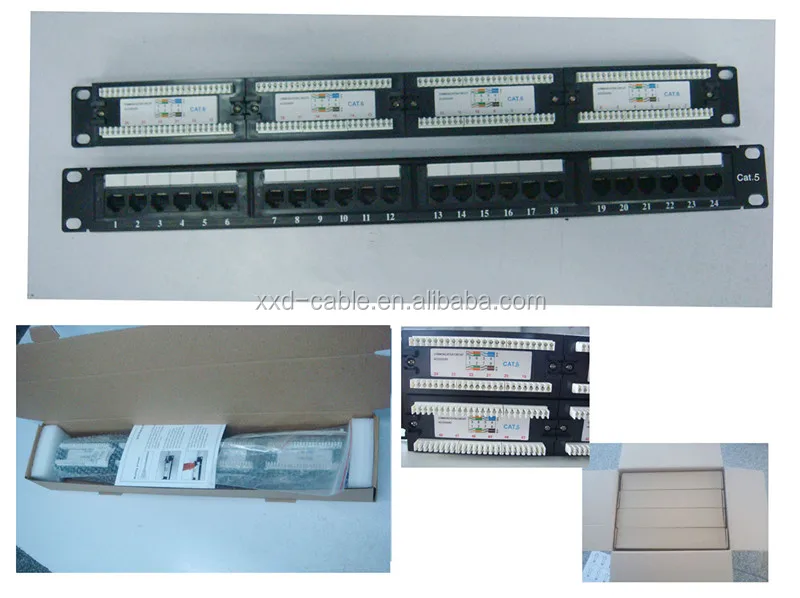

Product Name

Factory direct sale 24 port 48 port cat6 ftp utp stp rj45 patch panel

Category

Cat5E & Cat6 8P8C

Port

24port

Contact

PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U"/0.0762um to 50 U"/1.27um Gold plating on contact area

Color

Black

Termination

Dual IDC

Product Size

10 inch, 1U & 2U

IDC

PC UL94V-0, Accept 22-26 AWG Solid Wire

Standard

ISO/IEC 11801 and EIA/TIA-568Bstandards

MOQ

10pcs

Price

FOB Shenzhen

Packing

1 pcs/box, 20 pcs/carton, carton size: 52 X 26 X 50cm

Payment Term

T/T & Western Union ,Moneygram,Paypal

Description

When building structured cabling systems, patch panels are used in racks and telecommunication cabinets for cable mounting in order to provide a high-quality commutation. A separate patch panel port is designated for each line. A patch panel is a block of jacks, the number of which corresponds to that of ports. E.g., a block of 24 jacks is a 24-port panel.

Numerical markings are put on the ports at the front of the panel. At the back of the panel contacts contain colour and numerical markings. There are areas for additional marking.

Patch panels differ in the number of ports, category and mounting technique.

By the number of ports, 12-, 24- and 48-port patch panels are most widely spread.

By the standards, category 5e and 6 patch panels are mostly used.

The main commutation mean is patch cords (a sections of cable, usually up to 5 m long, of the appropriate category with plug-type connections at the ends). They are used to connect patch panel ports, active equipment, sockets at the working places (PC, telephones, printers, etc).

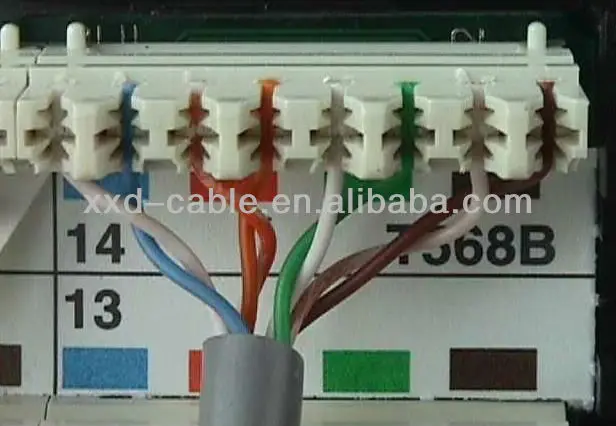

The cable is laid to each port and using a special tool is mounted (connected to) in the IDC module (IDC is Insulation Displacement Connection). There are the following types of IDC modules: of type 110 , Krone and Dual IDC (universal). Depending on the module type different tools are used for cable mounting. Dual IDC is a universal module and admits use both 110 type tool and Krone type tool for cable mounting.

Panels may be mounted on the wall and in 19" telecommunication cabinets, racks and frames. Some kinds of panels are produced according to standard 10".

Panels mounted on the wall may be on a support (with rear mounting) and with front mounting .

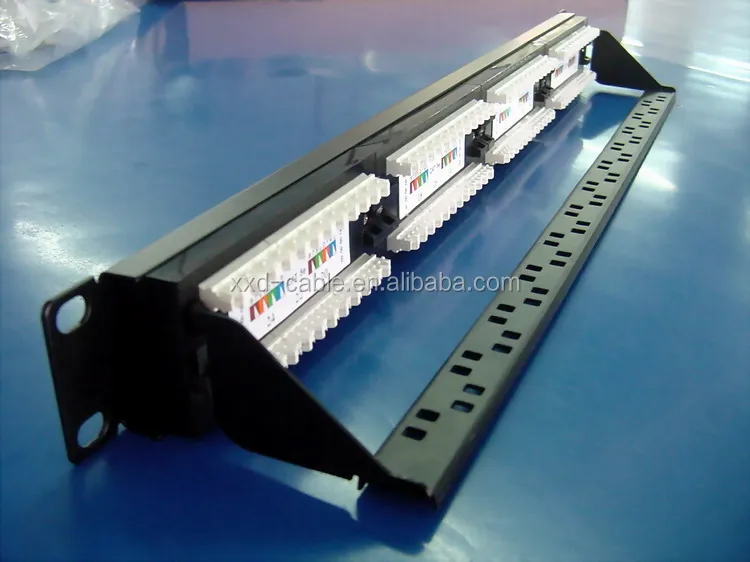

Panels on the support are taken off from the support when mounting the cables, and then they are locked back. Besides, they may be mounted on 19" frames for crosses of type 66, due to the same type of supports used.

Panel with front mounting are fixed directly to the walls. They are more compact, may be mounted directly to the box. The size of 24-port panels with front mounting is 19", which allows their use in racks.

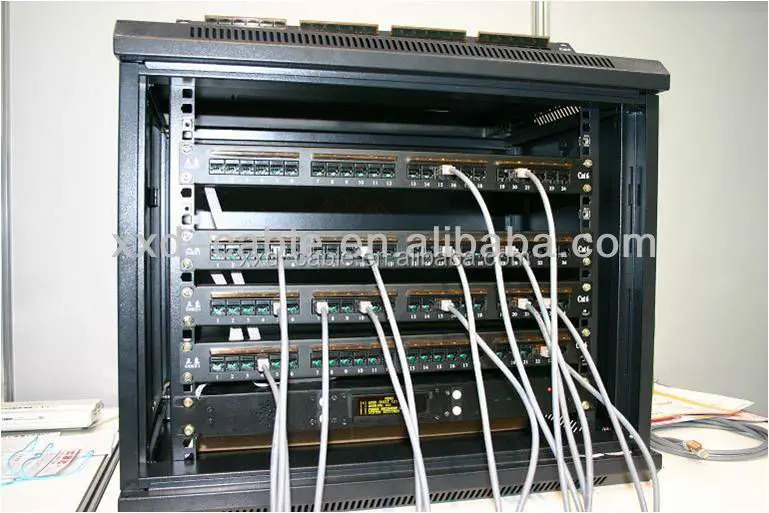

Wall-mounted patch panel with front mounting

According to the type of ports there are telephone and computer patch panel. Telephone panels have ports of type RJ-12 (6p4c, 6p6c) and are used for commutation of telephone lines. To make commutation with telephone stations simple, some telephone patch panels are provided with ports of type Telco (25 pairs).

Computer patch panels have RJ45 (8p8c) ports and are most often used in computer networks. Depending on the requirements to data transmission lines in computer networks patch panels with RJ-45 ports may be of category 5e and category 6 . Patch panels with shielded ports are used in structured cable systems with shielded communication circuits.

Module panels are a separate type of patch panels. These are panels with cells for module of a special format. As module both RJ12 and RJ45, and BNC may be used even for the optical cable, module panels permit to create almost any port configuration needed for task solving.
