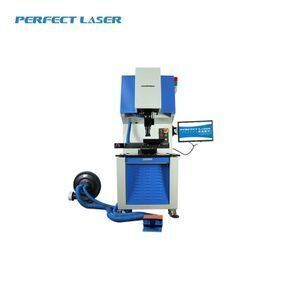

Factory sale porcelain laser cutting machine dice broken Solar Cells panel piece machine for sale
-
Supplier: Perfect Laser (Wuhan) Co., Ltd. -
Region: Hubei, China -
Contact: Ms Lydia Yuan -
Price: $7000.00 /unit -
Min. Order: 1 unit
| Packaging Detail: | 1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2. Air-Worthy Packing or Sea Packing which comply with international standard.; | Cooling Mode: | Air Cooling,Forced air; |
| Scribing Width: | 30μm; | Working Power: | 220V/110V , 50Hz/60; |
| Applicable Material: | laser scribing solar cell , silicone wafer , ceramic; | Graphic Format Supported: | AI,BMP,Dst,Dwg,DXF,DXP,LAS,PLT; |
| Laser Wave length: | 1064nm; | Control Software: | Laser Scriber; |
| Certification: | ce,ISO; | Place of Origin: | Hubei China; |
| Working Table: | Vac-sorb; | Working Area: | 350*350mm;200mm*200mm; |
| Application: | Laser Scribing; | Laser Type: | Fiber Laser; |
| CNC or Not: | yes; | Warranty: | 1 Year; |
| Laser Power: | 10W 20W 30W 50W; | After-sales Service Provided: | Online support,Engineers available to service machinery overseas; |
| Brand Name: | PERFECT LASER; | Scribing accuracy: | ±10μm; |
| Supply Ability: | 3000 Unit/Units per Year; | Port: | Shanghai or Shenzhen; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Scribing speed: | 120-300mm/s; |

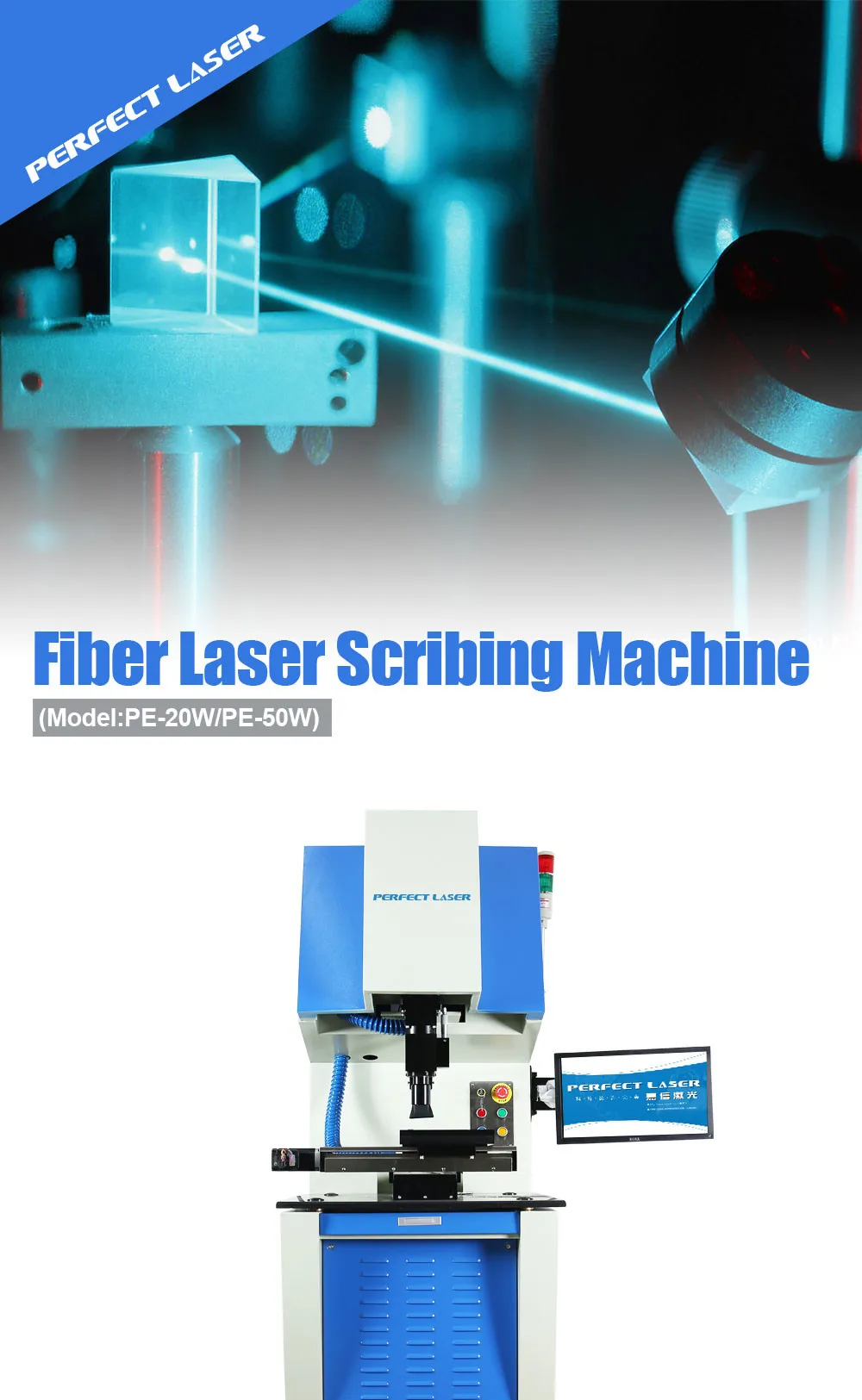

Porcelain Laser Cutting Machine , Dice Broken Solar Cells Machine
Contact:Eva Skype:perfectlaser018@outlook.com Email: perfectlaser018(@)outlook.com
I. Product Description

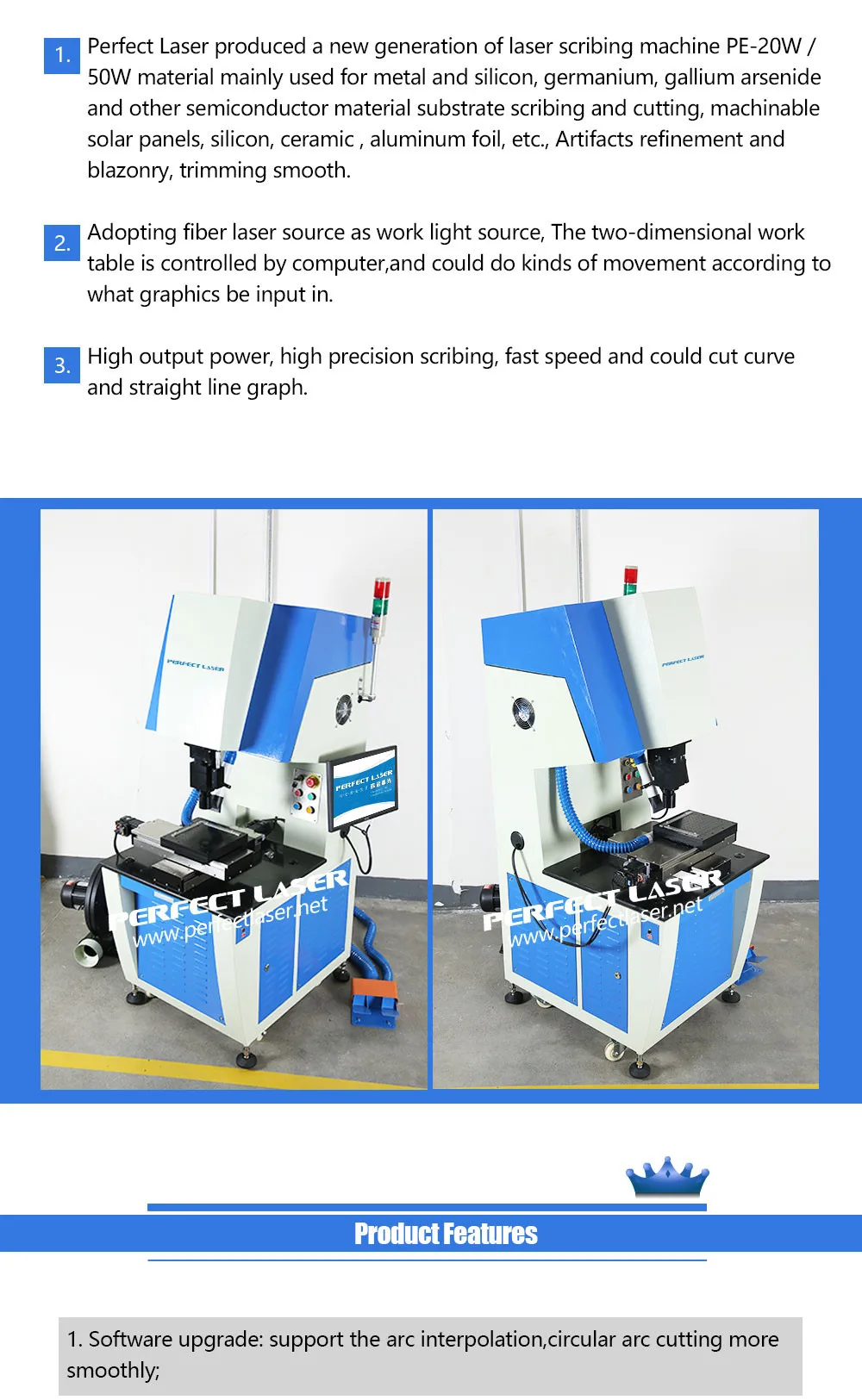

PE-20WD type automatic laser scribing equipment is suitable for monocrystalline silicon and polycrystalline silicon solar cell scribing processing, equally average transverse cutting 56 * 156 mm specifications cell.
Devices have automatic operation function, including automatic material feeding, automatic identification, automatic scribing, automatic splitting, automatic sorting, automatic discharging, dust filter dust removal.

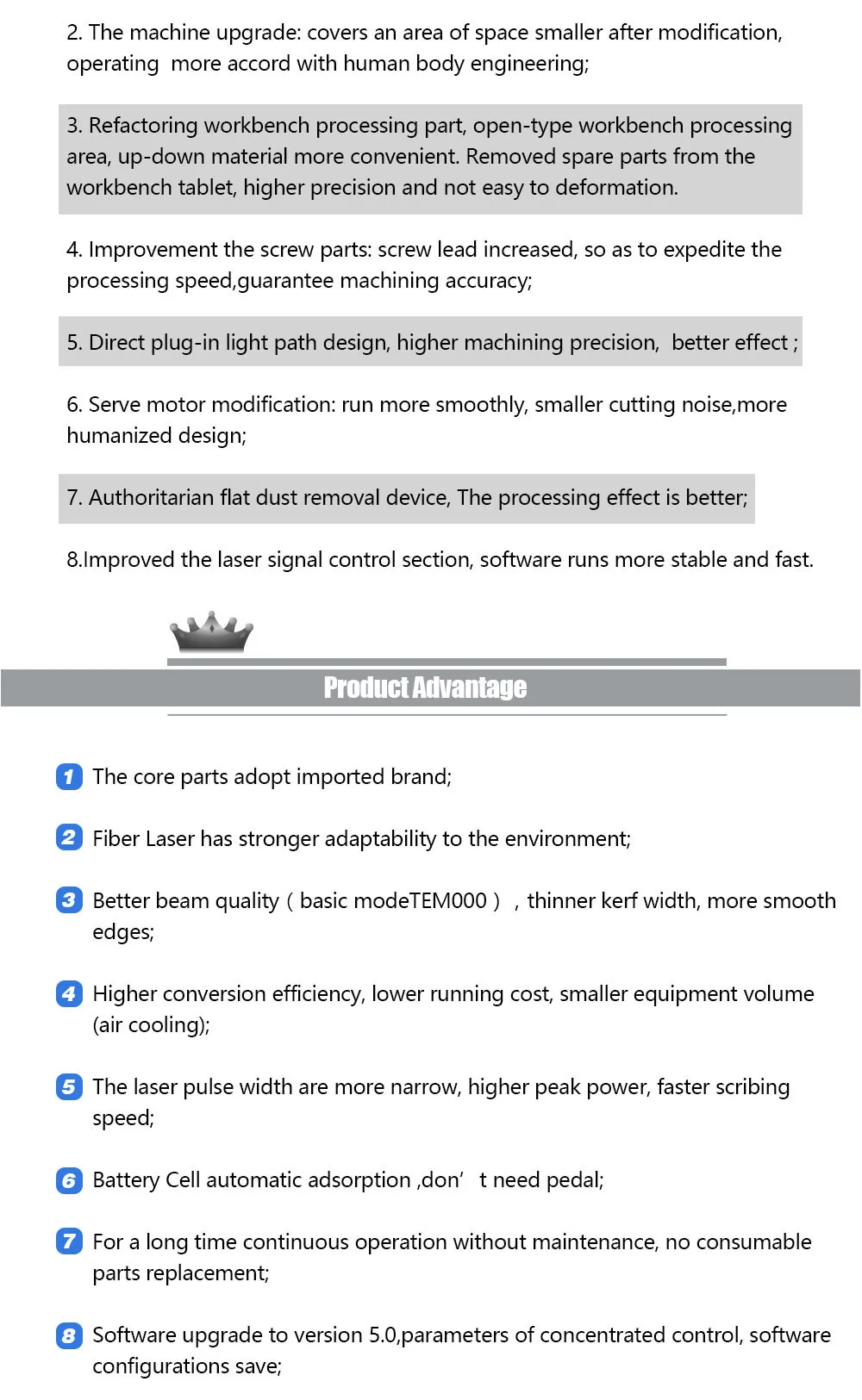

II. Product Features
1. Adopting advanced fiber laser source which is suitable for long service life, free of maintenance, 24 hours continual working with excellent beam quality;
2. Fully automated design: automatic feeding, automatic discharging, automatic identification, automatic scribing, automatic sorting, automatic filter dust removal;
3. High conversion efficiency: lower operation cost, compact equipment volume;
4. Self-developed software with powerful function and humanized operation design.

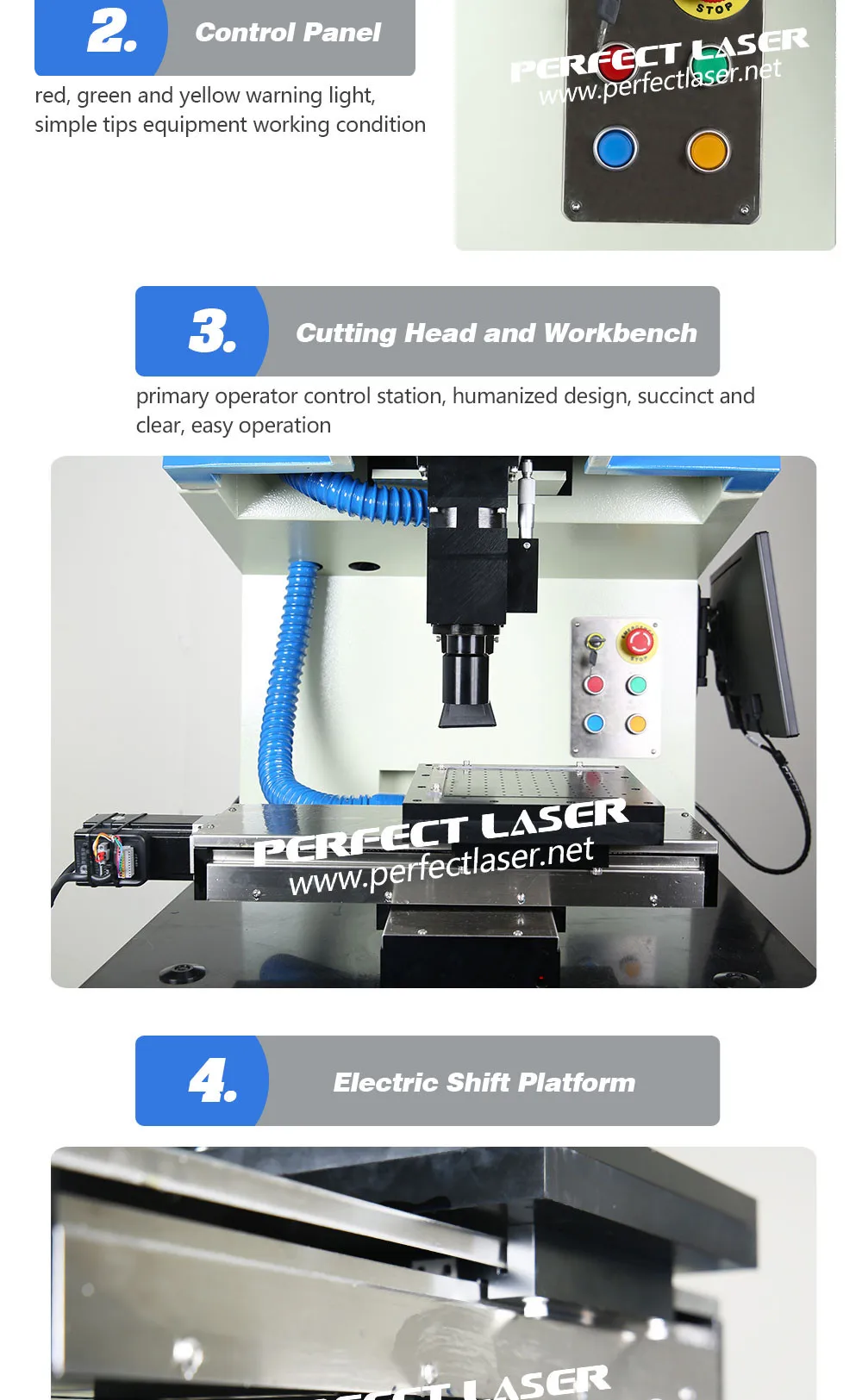

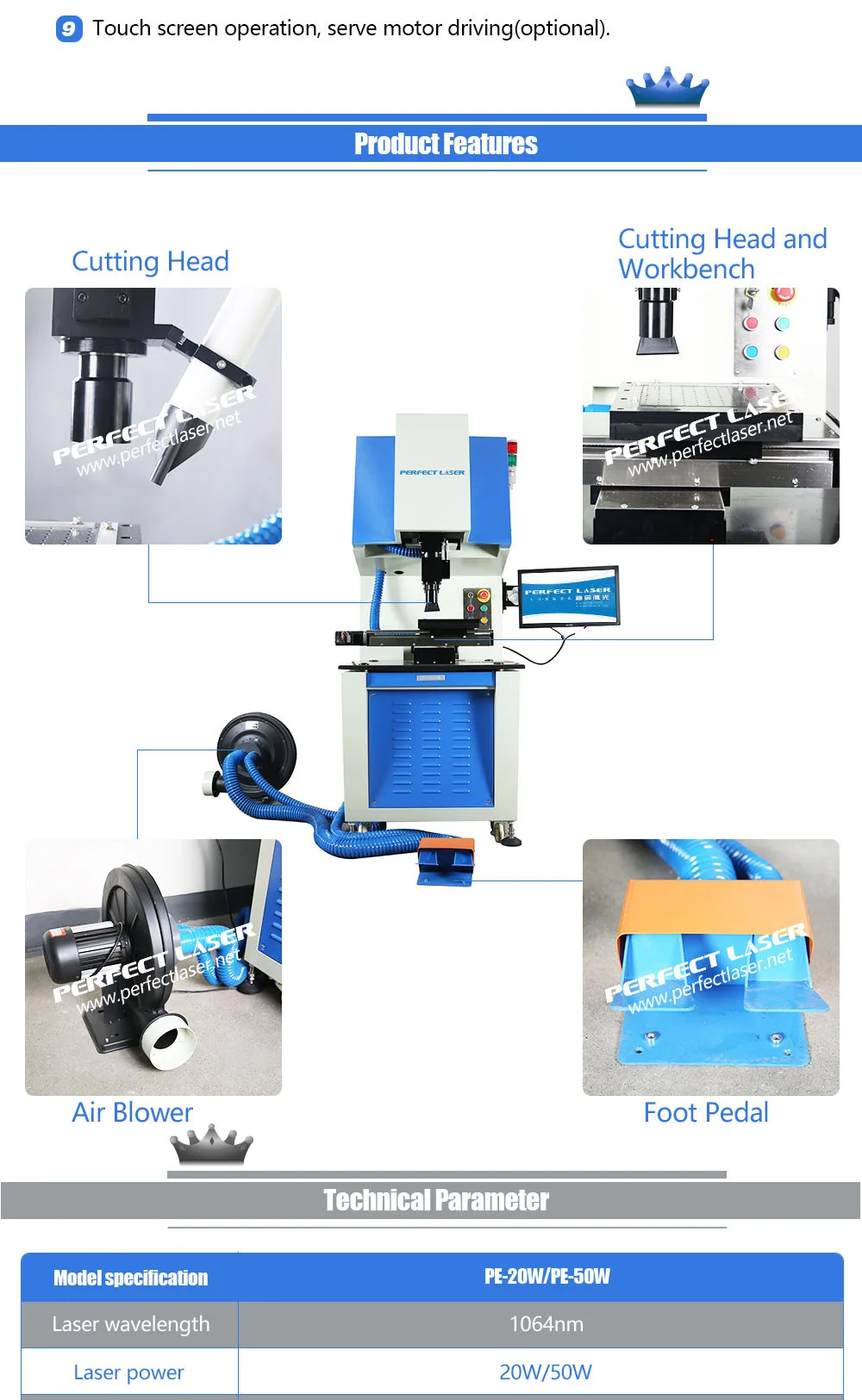

III. Product Structure
1.The machine is fully enclosed except two connecting ports for loading and unloading.
2. Front port adopted high-tech automatic feeding mechanism.
3. Automatic positioning mechanism

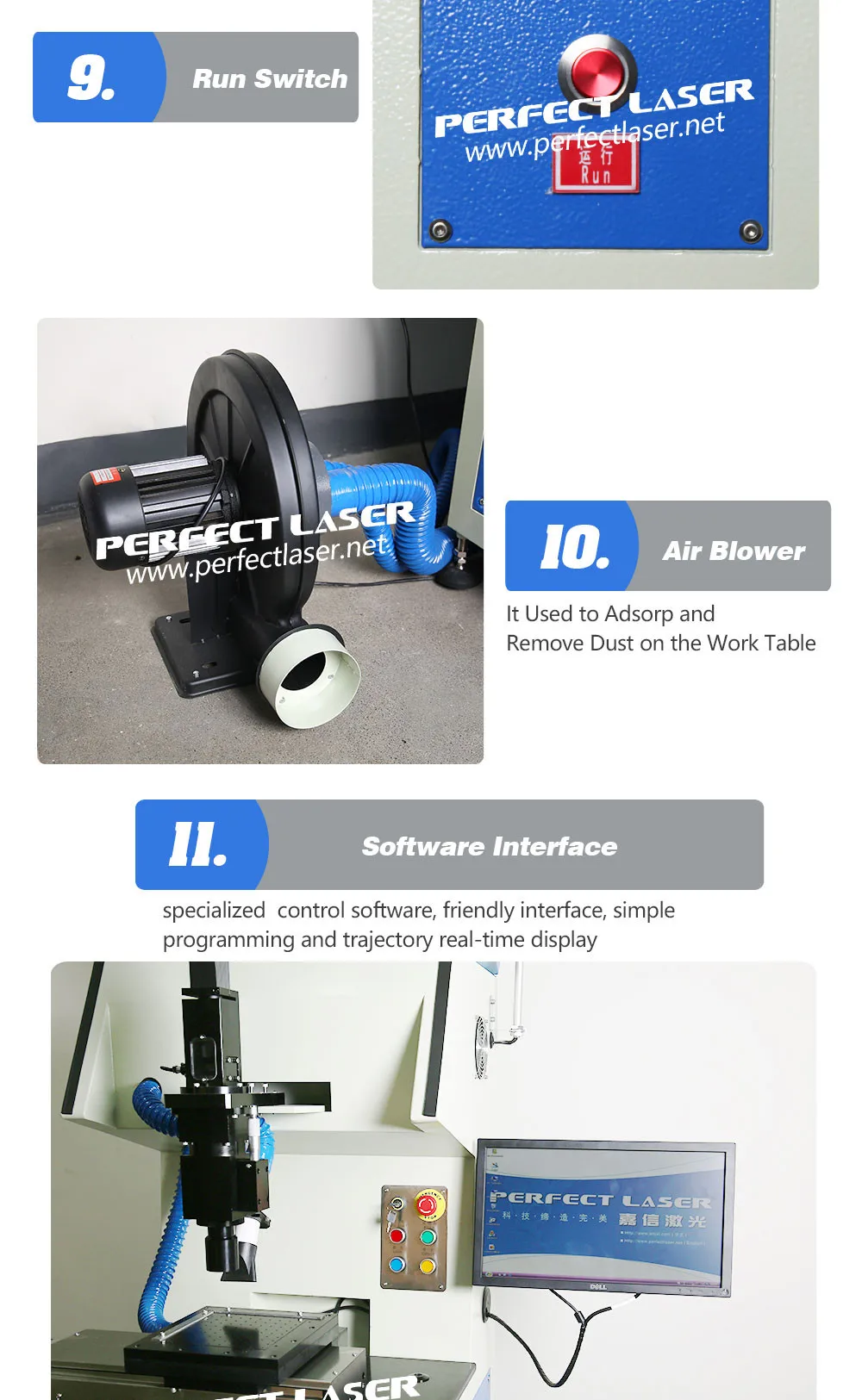

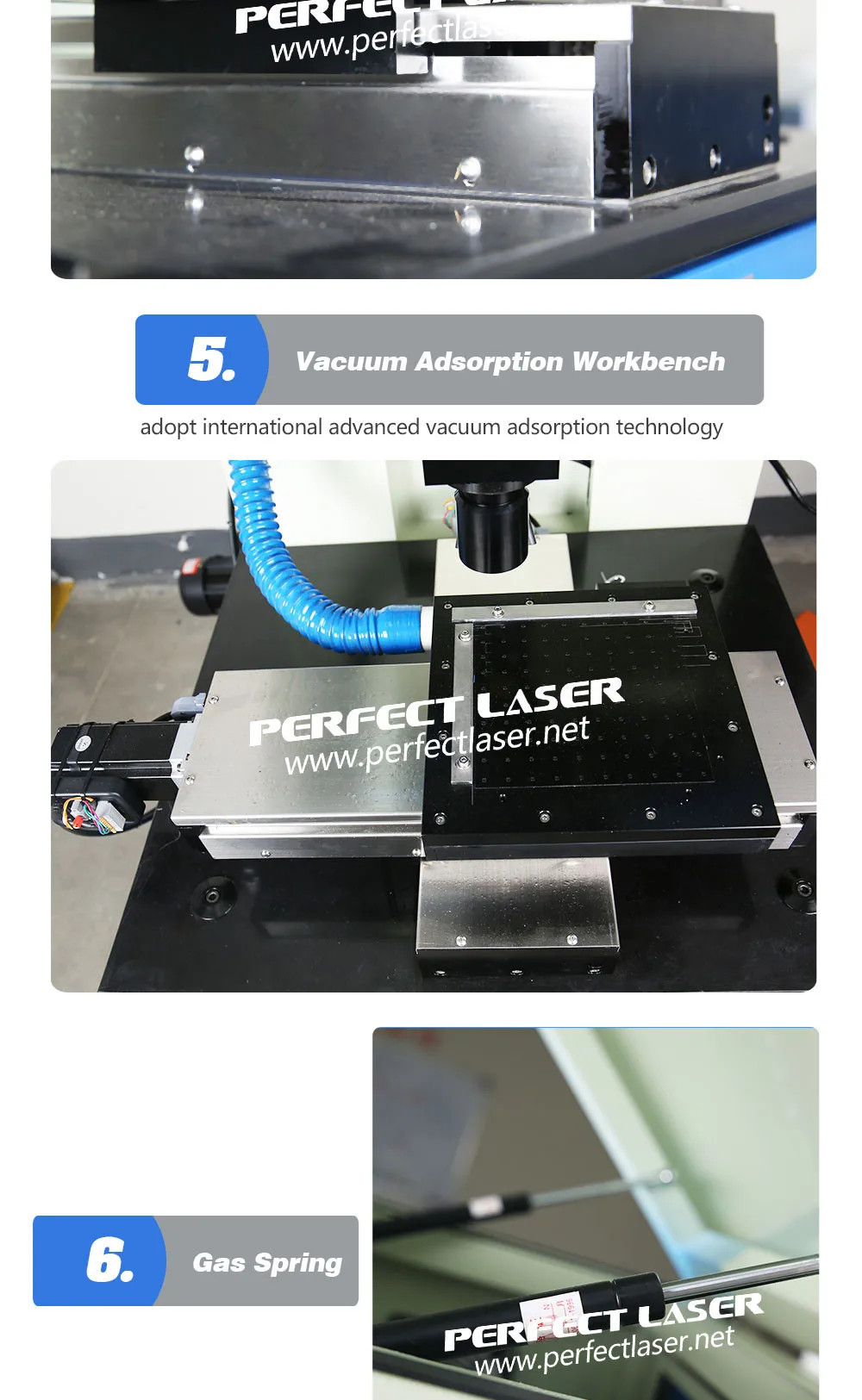

4. Automatic adsorption and extraction dust removal system

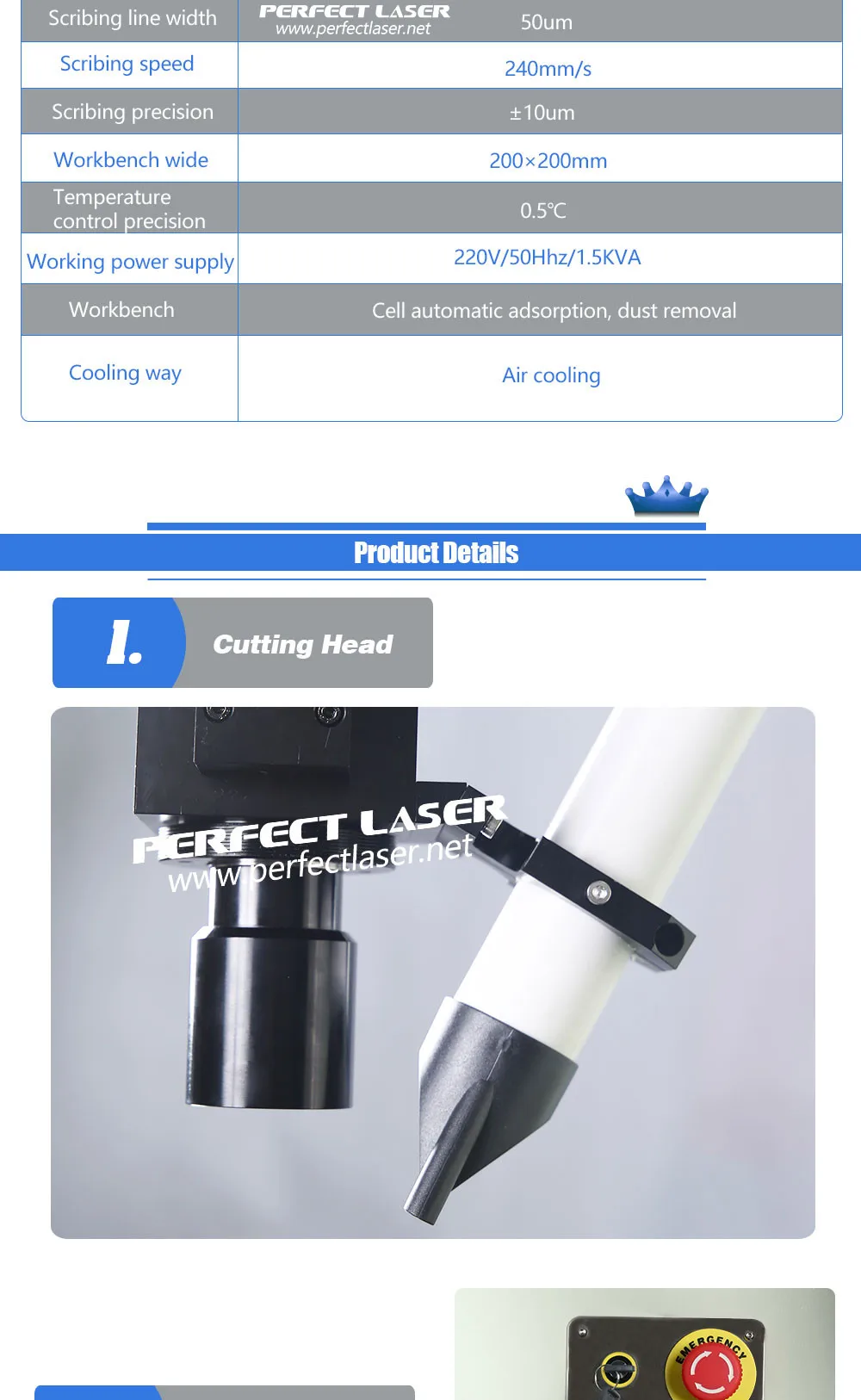

5. High-speed motion scribing laser head
6. Automatic breaking mechanism
7. Automatic detection and automatic identification system
8. Front port adopted high-tech automatic sorting, unloading mechanism.
IV. Technical Data
Laser power | 20W |
Pulse frequency | 35KH |
Scribing speed | 220mm/s |
Spot diameter | 0.03mm |
positioning accuracy | ±0.05mm |
Dividing | 1/2 |
Scribble time | 0.9s/p |
Processing time | 1500p/h |
Fragmentation rate | ≤0.3% |

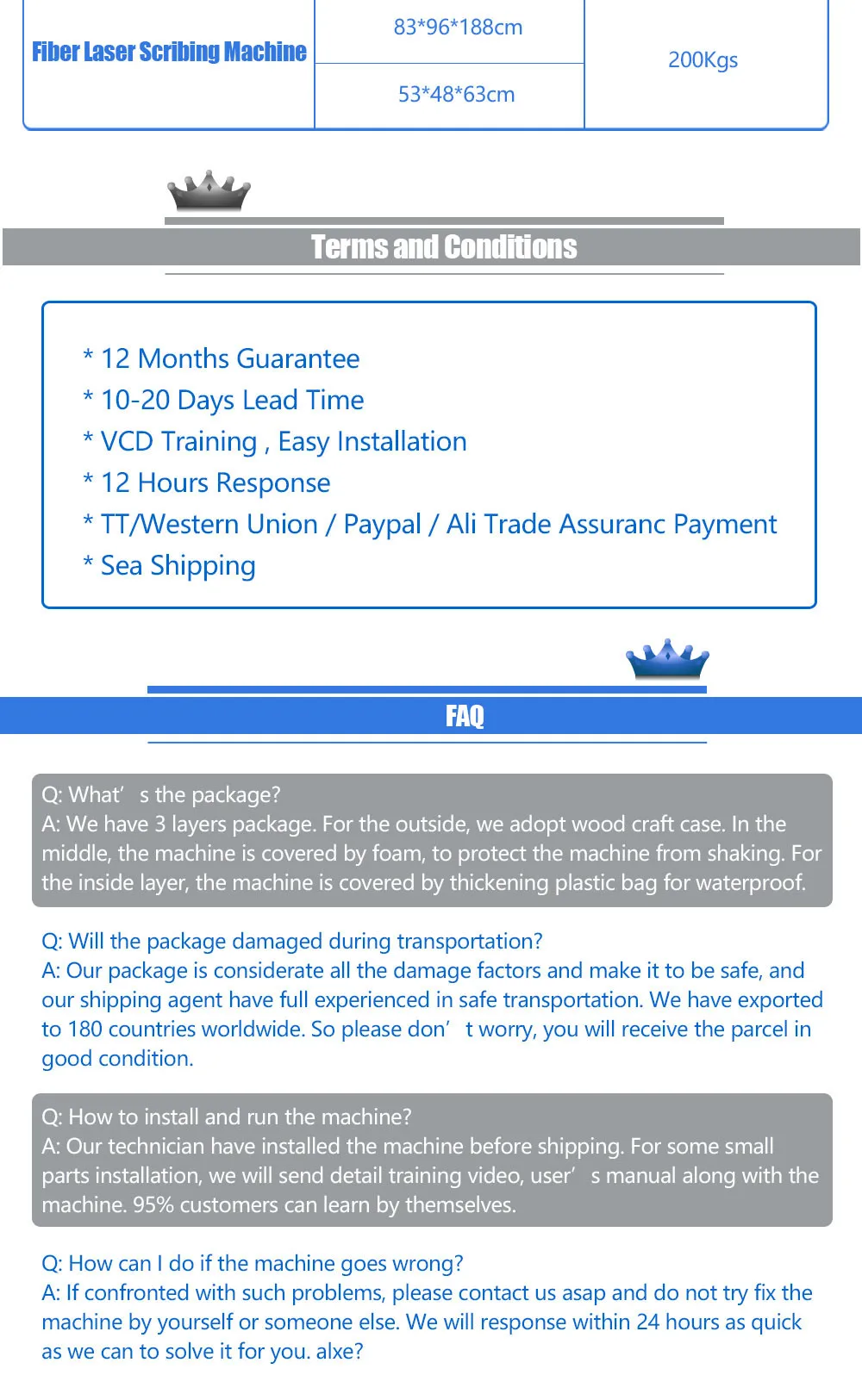

Terms &Conditions :
1.Payment terms: T/T, L/C, West Union, paypal
2. Delivery lead time: 5-7 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standard.
Guarantee :
We have one year guarantee for the machine.We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.
Welcome inquiry! photos, videos, PDF are all available!We will response within 2 hours.
