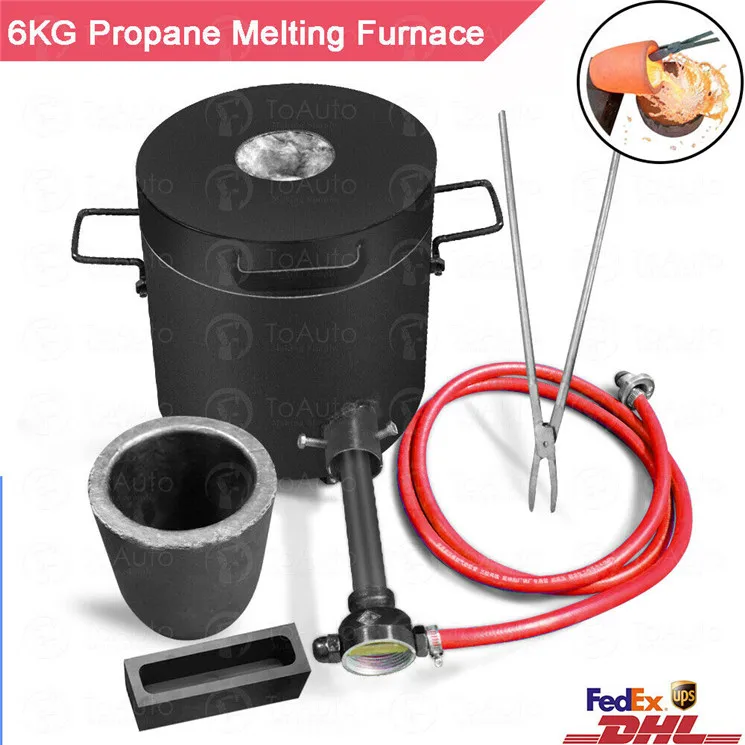

Propane Furnaces 6KG Gas Metal Melting Furnace Propane Forge Copper Gold Silver Graphite Crucible

Propane furnaces do not require any power and can be used on the go. They are excellent for melting gold, silver, copper, brass, aluminum, and other metals.

1. Specifications& Feature

2. Advantage

3. Benefits for you

(1) Adopt high quality 6KG high quality full graphite crucible (without silicon, competitors' crucibles will look like the following for a long time). The service life is up to 500 times.

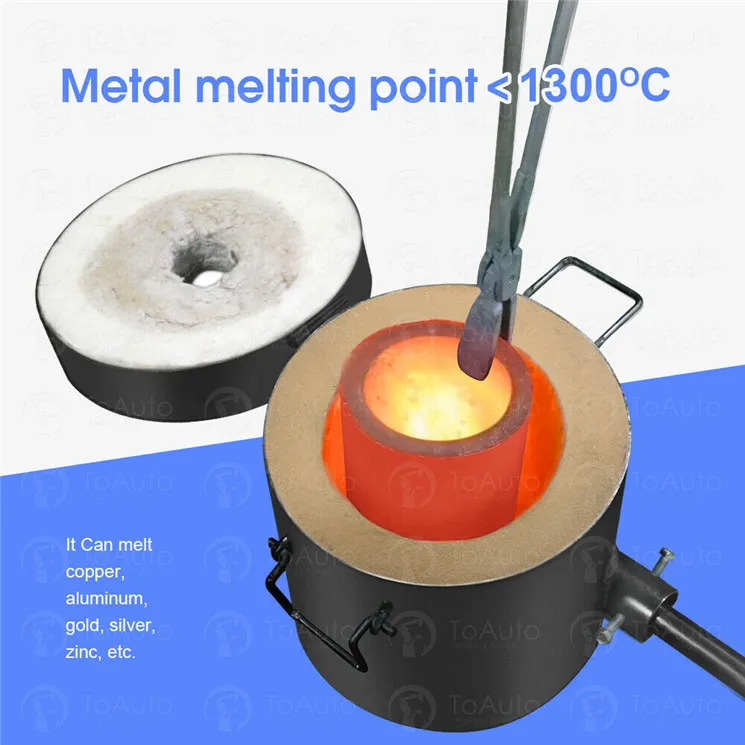

(2) The highest temperature can reach 1300 ℃, and it can melt metal with melting point lower than 1300 ℃. For example: gold, silver, copper, aluminum, zinc

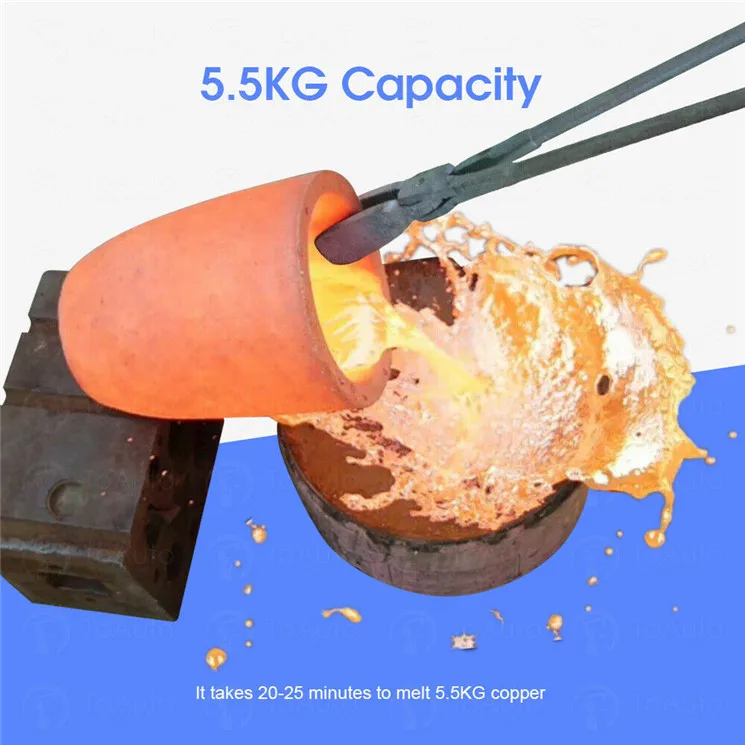

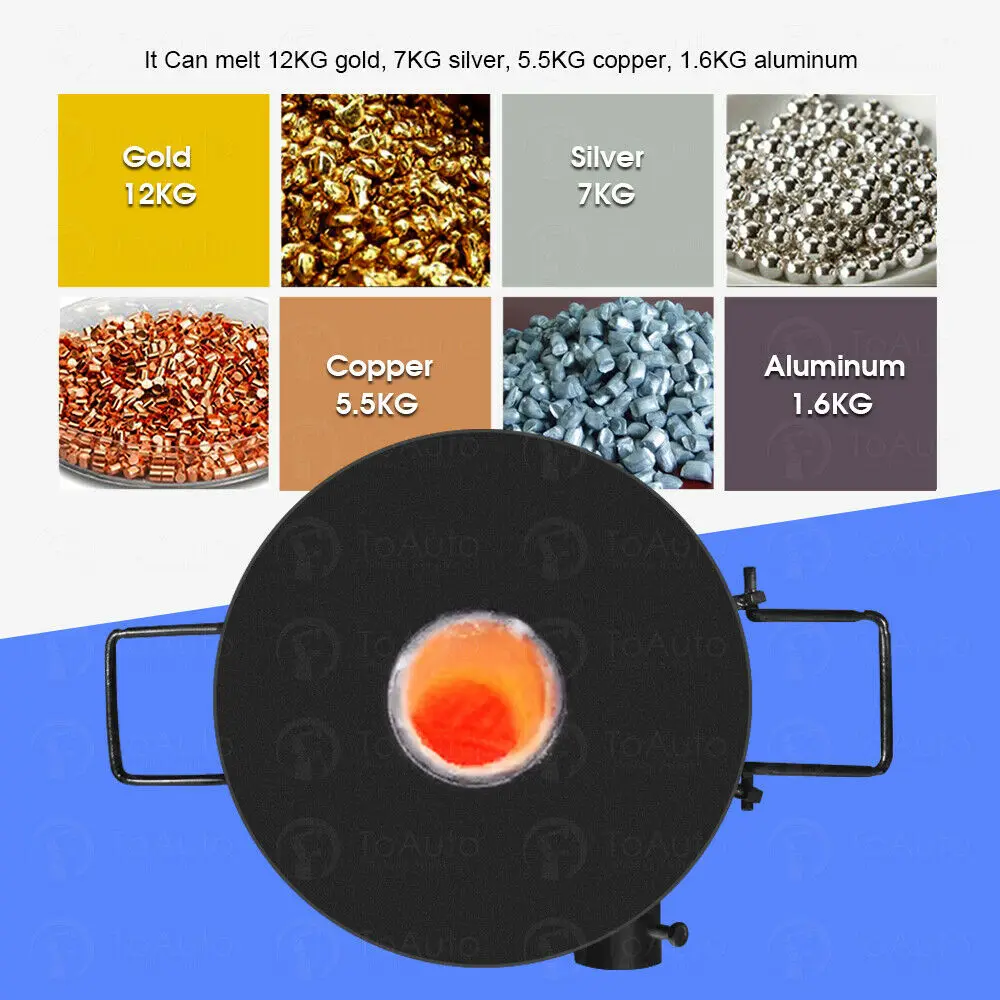

(3) Large capacity: can be melted: 6KG copper 1.6KG aluminum, 7KG silver, 12KG gold. It takes 20-25 minutes to melt 6KG copper

(4) The inner wall adopts a package of 5CM fireproof cotton (which can withstand high temperatures of 1400 ° C) and is a replaceable inner wall material.

(5) Portable size design, foldable handle design, the whole furnace weighs 6Kg, and works in any place.

5. Application area

It is used in DIY, jewelry processing factories, jewelry shops, gold panning and other industries. It is used to melt copper, gold, silver, copper, aluminum, zinc and other metals with melting points below 1300 ° C.

6. Technical Support

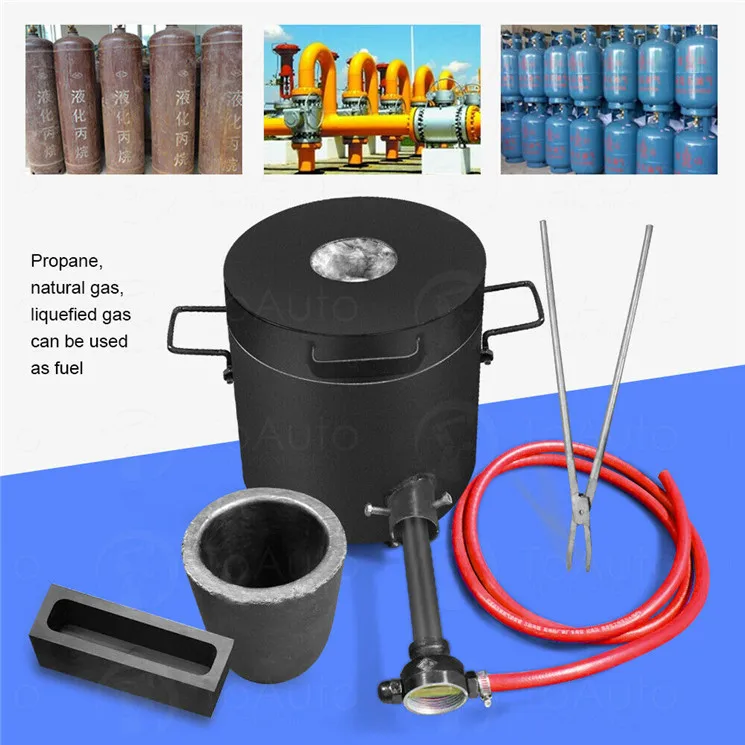

Installation and use: Need to install a pressure gauge and control valve separately, connected to the gas pipe.

Note:

1. Can melt copper, aluminum, gold, silver, zinc and other metals with melting point below 1300 ℃

2. Can melt: 6KG copper 1.6KG aluminum, 7KG silver, 12KG gold. It takes 15-25 minutes to melt 5.5KG copper

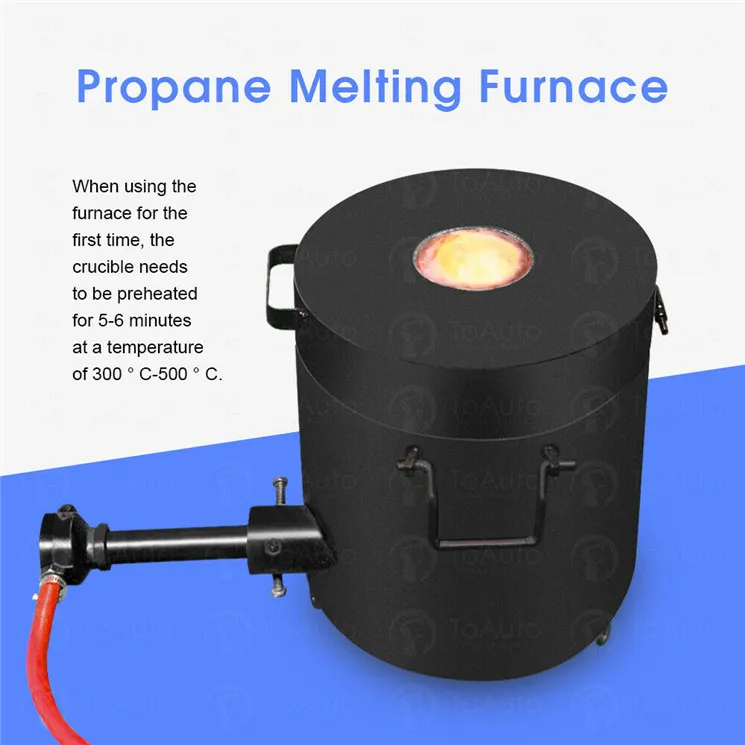

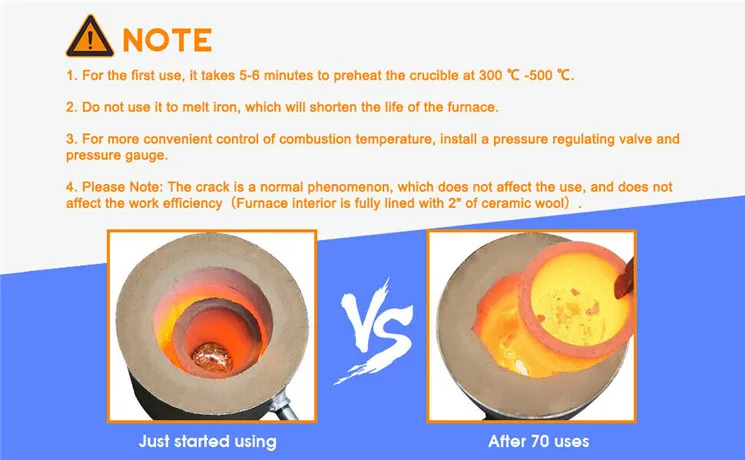

3. Before you use it, it must take 5-6 minutes to preheat the melting furnace and the crucible at 300 ℃ -500 ℃.After you use it, you cann't cool it down quickly, you should cool it down naturally. Graphite Crucible is a consumable, you can change a new one according to your requirement.

4. For more convenient control of combustion temperature, install a pressure regulating valve and pressure gauge

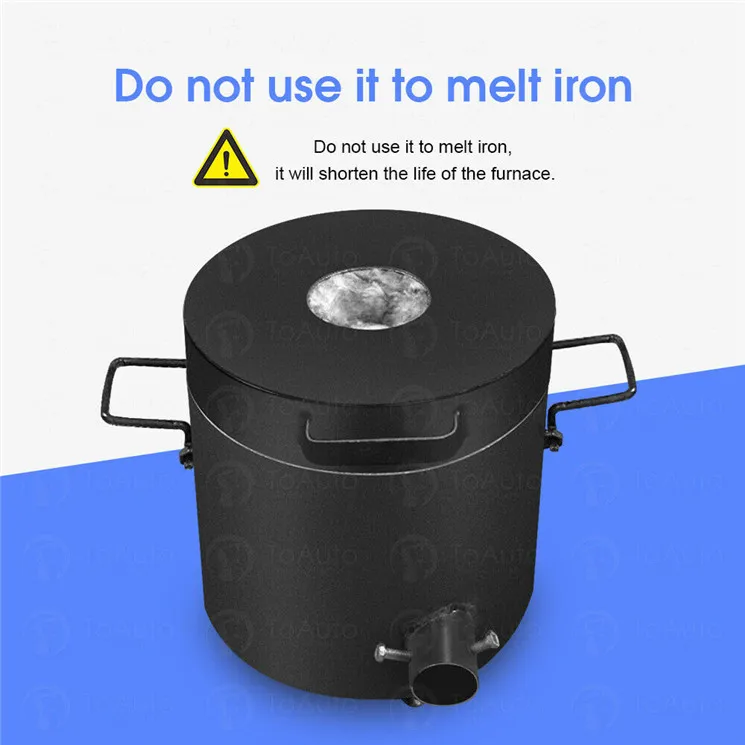

5. Please note: Do not use it to melt iron, which will shorten the life of the furnace.

6 Before use, please bring high temperature gloves, high temperature mask and high temperature clothing. Prepare a bottle of fire extinguisher beside to prevent accidents.

Precautions for use:

1. Use the site to ensure that it is open, ventilated, and free of flammable materials.

2. Keep the escape route clearly marked during emergencies.

3. Keep the fire extinguisher at hand.

4. Before using this product, please bring high temperature gloves, fire protection masks and other labor protection supplies.

5. The entire melting process requires someone to stare.

6. Prohibit overload smelting to prevent liquid metal from flowing out.

7. Be careful when the raw material is added during the melting process.

8. The air pipe needs to be connected to the pressure valve and pressure gauge.

9. It is forbidden to melt iron, manganese and other metals with a melting point higher than 1400 ℃, otherwise the furnace wall will melt.

10. If it is used for a long time, the material of the inner wall of the furnace can be replaced.

11. Do not look directly at the degree of melting during the melting process to prevent heat waves from damaging the body. Only by taking security measures.

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

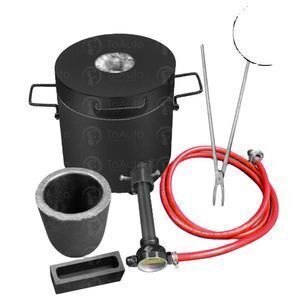

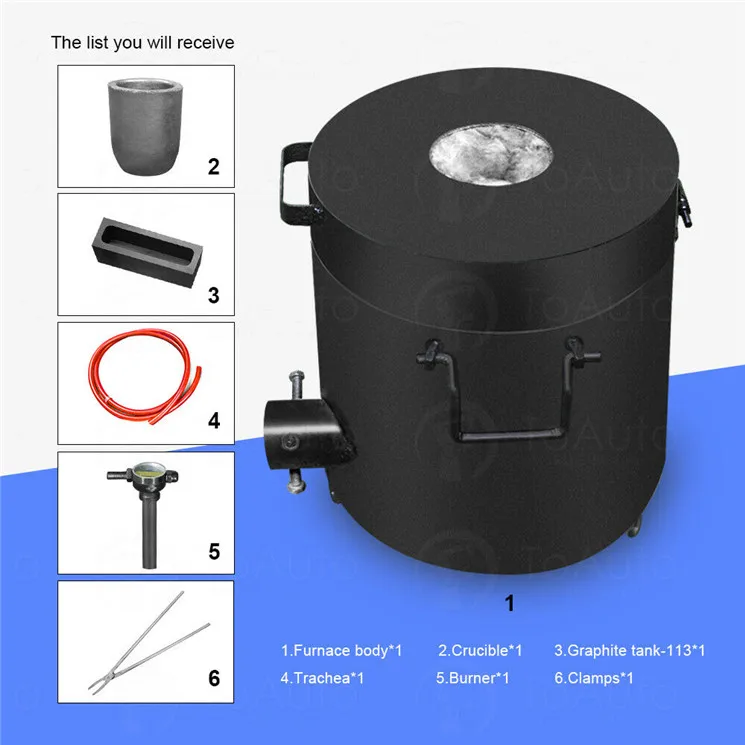

Shipping List

1PCS Gas melting furnace

1PCS 6KG capacity crucible

1PCS Burner

1PCS Trachea
