Electric Metal Melting Furnace Gold Silver Melter with 1/2/3KG Graphite crucible

Product details
Machinery Test Report:Not Available;Selling Units:Single item;
Melting Material:Gold Silver Copper Aluminum Lead;Place of Origin:Guangdong China;
Dimension(L*W*H):20x020x40cm;graphite crucible capacity:3KG/2kg/1kg;
Core Components:PID module and digital control system;Certification:CE/FCC/PSE/RPHS;
Power (kW):1400;Application:Melting Metal;
Type:Induction Furnace;Single package size:22X22X44 cm;
Voltage:110V/220V,110v/220v;Video outgoing-inspection:Provided;
Weight (T):0.01;Brand Name:ToAuto;
Marketing Type:Hot Product 2019;After-sales Service Provided:Online Support,Video technical support,Online support;
Showroom Location:None;Package Preview:;
Key Selling Points:Easy to Operate;Product name:Melting Furnace;
Local Service Location:None;Warranty of core components:1 Year;
Usage:Melting Furnace;Furnace type:Electric Melting Machine;
Condition:New;Power:1400w;
Name:Metal Smelting Furnace;Single gross weight:12.0 KG;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining;Max temperature:1100'C;
After Warranty Service:Video technical support,Online support;Warranty:1 Year;
Packaging Detail:carton;



Product Description

 The Electric Melting Furnace with compact design is ideal for professional use. By using high-quality materials, the smelting furnace can meet the requirements of the industry and the workshop, are suitable for the processing of precious metals such as gold,silver,pure copper,aluminum,Tin,Zinc and other metals with low acid-base property & not too high melting point.

The maximum adjustable temperature of our product is 1100° C(2012 ℉). Thus, the melting furnace is perfectly designed for the melting of precious metals. The melting point of silver is 962° C, gold is 1064 ° C. The regulation of the melting temperature is very user-friendly via a highly modern PID module. This module allows the digital adjustment of the setpoint temperature to the degree accurately. The PID module monitors the actual temperature in the melting chamber at 2-second intervals so that it does not overheat or cool down. The temperature is kept constant around the melting point.

1. Shipping list

1PCS

Melting furnace

1PCS

3KG graphite crucible

1PCS

power cable

1PCS

clamp

1PCS

Instruction manual

2. Specifications& Feature

name

Melting furnace

model

SG-RRL-3KG

Use voltage

110V/220v

power

1400W

capacity

3KG

Maximum temperature

1100℃

weight

12KG

Package dimensions

22*22*40cm

3. Advantage

1.

The product uses quartz furnace

2.

PID temperature control table

3.

High purity graphite crucible

4.

Up to 1100 ° C

5.

1400W working power and 3KG capacity

4.Features

[Large 3KG Capacity]1400W working power and 3KG large crucible capacity. It can smelt the precious metal fast.can be melted: 6KG gold,3.5KG sliver,3 KG copper,0.7KG aluminum.

[Professional Durable Materials]The product uses quartz furnace.The furnace wire seal integrated machine can be heated quickly. The inner tank is made of quartz and has the characteristics of heat resistance, acid and alkali resistance and aging resistance.

[PID Temperature Control Table]Equipped with advanced PID module and digital control system to provide accurate and convenient metal melting, monitoring the actual temperature in the melting chamber at 2 second intervals, so that it will not overheat or cool.

[High Purity Graphite Crucible]The high density of natural graphite makes the crucible have good thermal conductivity,temperature resistance,corrosion resistance and long service life.Specially the groove design acilitates the pouring and filling of the melt.

[Max Temp up to 1100 ° C/2012 ℉]The max heating temperature is up to 1100° C(2012 ℉). The melting furnace can melt metals with melting point below 1100 ° C such as: gold, sterling silver, pure copper and aluminum,Tin,Zinc,Brass Bronze etc.

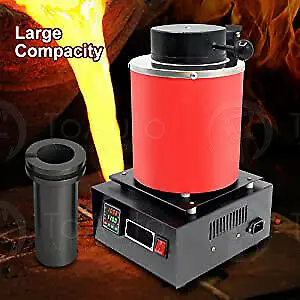

Large 3KG Capacity

1400W working power and 3KG large crucible capacity. It can smelt the precious metal fast.can be melted: 6KG gold,3.5KG sliver,3 KG copper,0.7KG aluminum.




Smelt Quickly

The melting furnace wire seal integrated machine can be heated and heated quickly. It can be fast heated up to 1100 °C/ 2000 °F. It takes 20-25 minutes to melt 3KG copper.

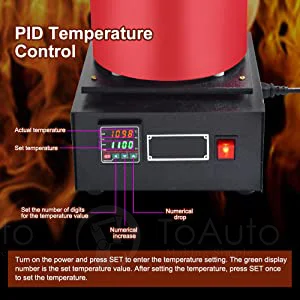

PID Temperature Control

Equipped with advanced PID module and digital control system to provide accurate and convenient metal melting, monitoring the actual temperature in the melting chamber at 2 second intervals, so that it will not overheat or cool., providing you precise and convenient metal melting.

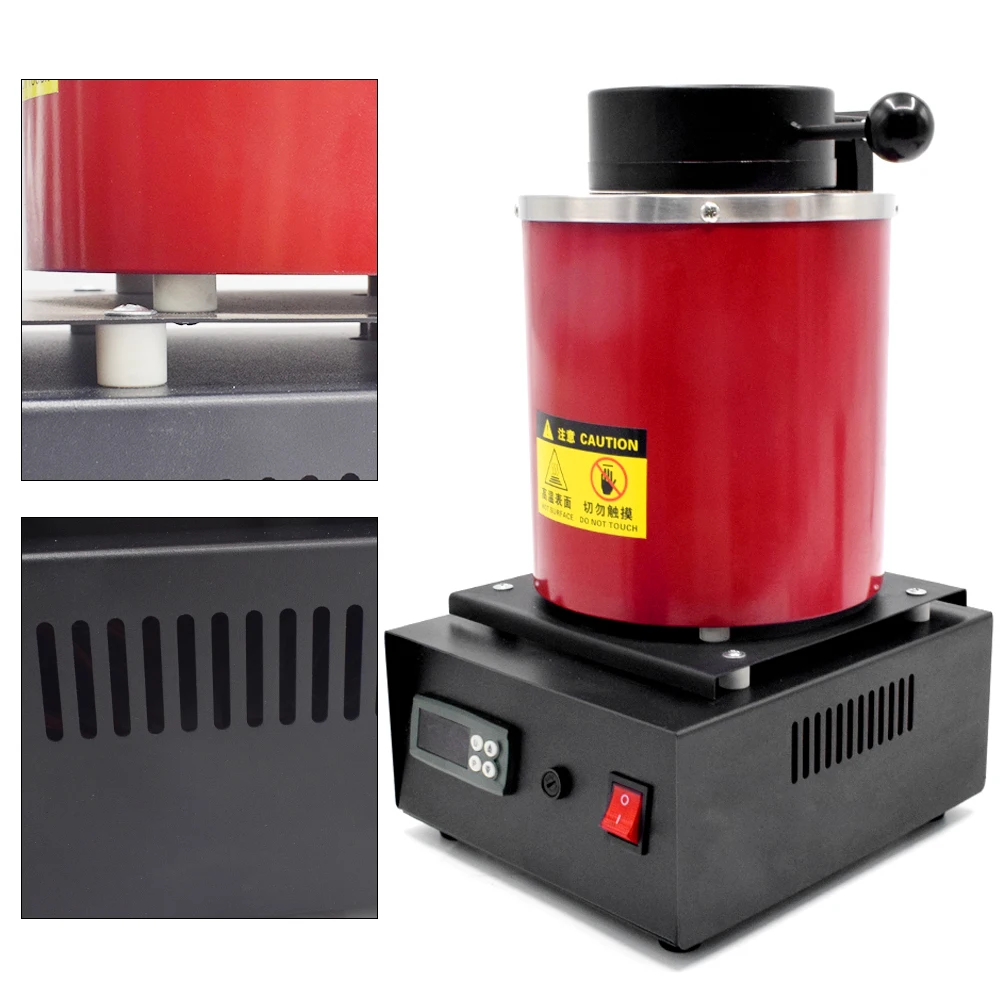

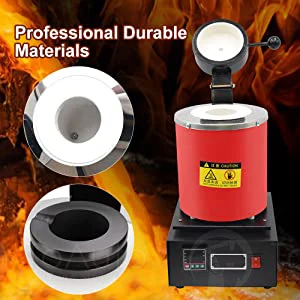

Durable Materials

Materials that have been tested to withstand high temperatures and extreme working conditions. The top of the furnace is made of quartz stone, which has heat resistance, acid and alkali resistance and aging resistance. This is your long-term partner.

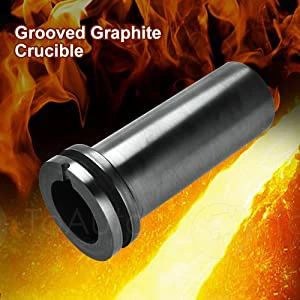

Graphite Crucible

The high density of natural graphite makes the crucible have good thermal conductivity,temperature resistance,corrosion resistance and long service life. Specially the groove design acilitates the pouring and filling of the melt.

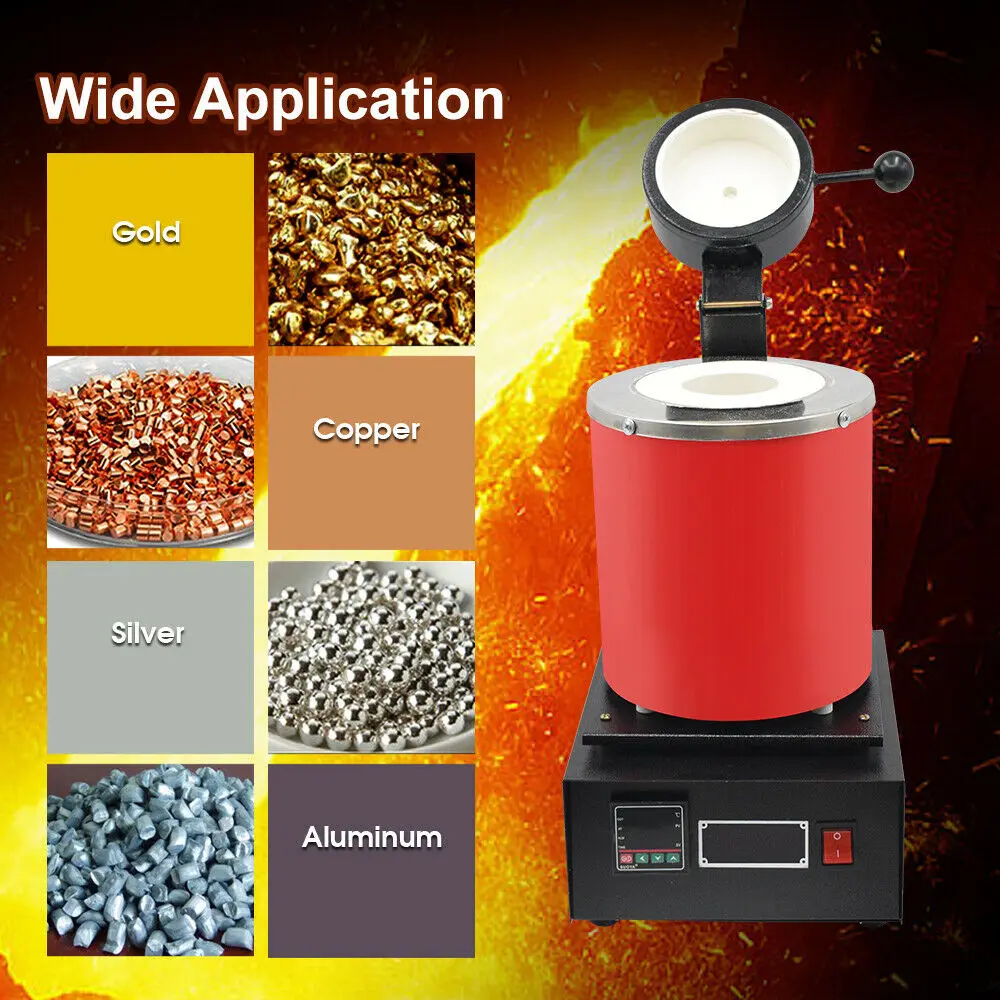

Wide Applications

Melting Furnace is an ideal furnace for industrial and workshops professional use, the max heating temperature is up to 1100° C(2012 ℉).Which can melt metals with melting point below 1100 ° C such as: gold, sterling silver, pure copper and aluminum,Tin,Zinc,Brass Bronze.








Large Compacity

Smelt Quickly

PID Digital Temperature Control

Durable Materials

Designed Crucible Tongs



  Specification



Voltage:110V/220V

Power:1400W

Crucible capacity:1KG/2KG/3KG

Maximum temperature:1100℃(2012℉)

Weight:12KG

Package dimensions:22 * 22 * 40cm

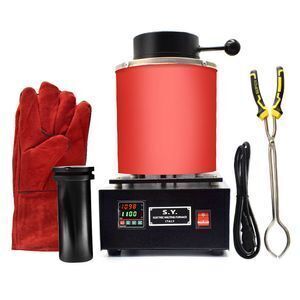

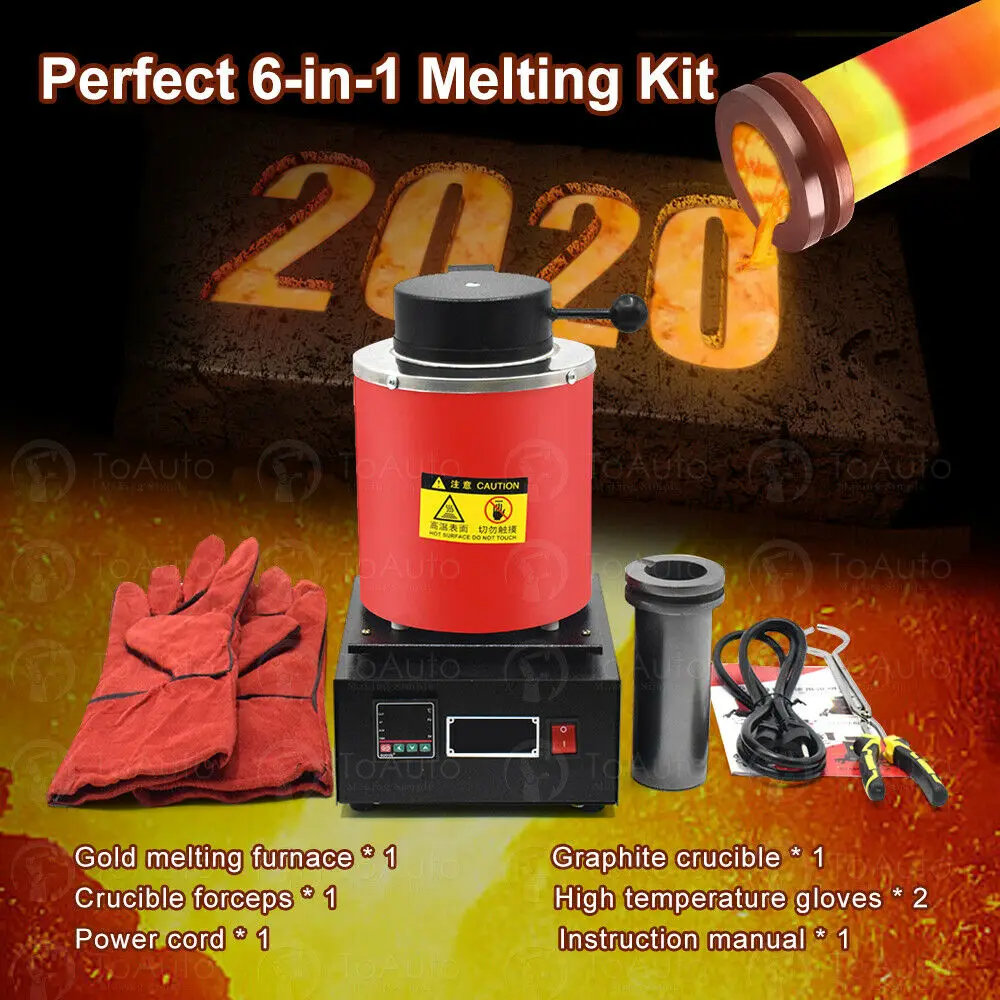

 Packing Content





1×Electric melting furnace

1× Graphite crucible

1× Power cable

1× Clamp

2× High temperature gloves

1× Instruction manual

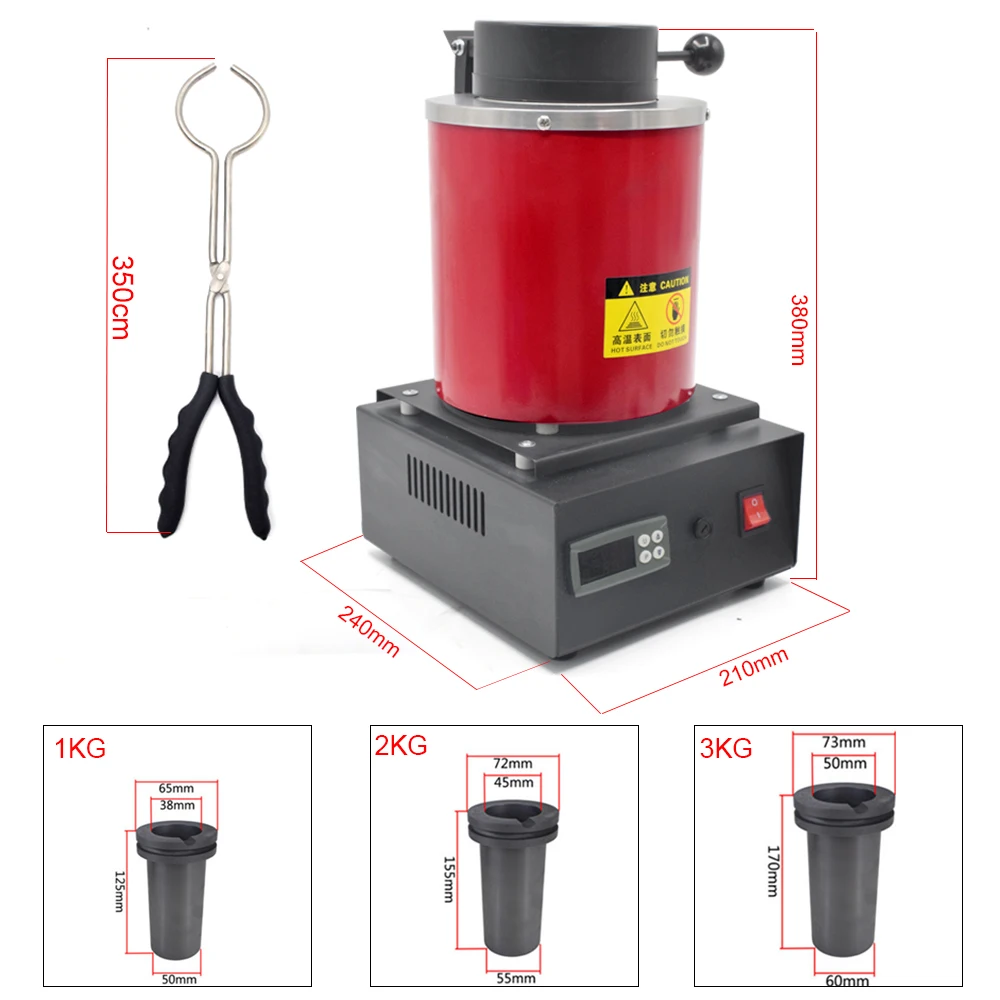

5. More choices available(please leave a message)

model

Voltage

Graphite crucible capacity

SG-RRL-3KG-110V

110 V

3KG

SG-RRL-3KG-220V

220 V

3KG

SG-RRL-2KG-110V

110 V

2KG

SG-RRL-2KG-220V

220 V

2KG

SG-RRL-1KG-110V

110 V

1KG

SG-RRL-1KG-220V

220 V

1KG

6. Application area

Suitable for industrial and workshop applications, suitable for processing smelting gold, sterling silver, pure copper and aluminum

Technical Support

1. The product work is under high temperature conditions, so it can't work for a long time, and it needs to be cooled for 3 hours.

2. When working, mainly protect yourself and avoid high temperature burns

3. The product can't work in humid environment

4. If the molten product contains substances such as acid and alkali, these substances will produce harmful gases with corrosion at high levels. In this case we recommend opening the furnace cover during the smelting process.

5. The maximum temperature of the product is 1100 °C. It is forbidden to smelt beyond this temperature.

6. Before use, check if the crucible is damaged. If it is damaged, replace it immediately.

7. In order to achieve the best results of smelting, do not fill the crucible. Gas is generated during the smelting process, and the metal is filled with metal, which causes an increase in pressure and poses a danger. If the armor is full, open the lid and smelt.

All Products from the factory will be provided for one year warranty after sales and lifetime technical support.







About Shipping
Delivery details:

1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all custom duties taxes. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.

Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
