Spiral Sand Ore Washing Machine High Capacity For Electric Pole Factory

Product details
Certification:ISO;Supply Ability:100 Set/Sets per Month;
Warranty:1 Year;Condition:New;
Capacity(t/h):UP TO 170;Packaging Detail:1."small parts are wooden box package" 2."the major machine nude packing, container, or upon customers' requirement" 3."export standard";
Place of Origin:Henan, China (Mainland);Brand Name:F&D INDUSTRIAL;
Applicable Industries:Manufacturing Plant,Construction works ,Energy & Mining;Motor Type:AC Motor;
Payment Terms:L/C,T/T,etc.;Port:Qingdao, Shanghai, Tianjin;
After-sales Service Provided:Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Product Description

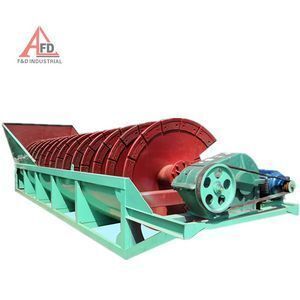

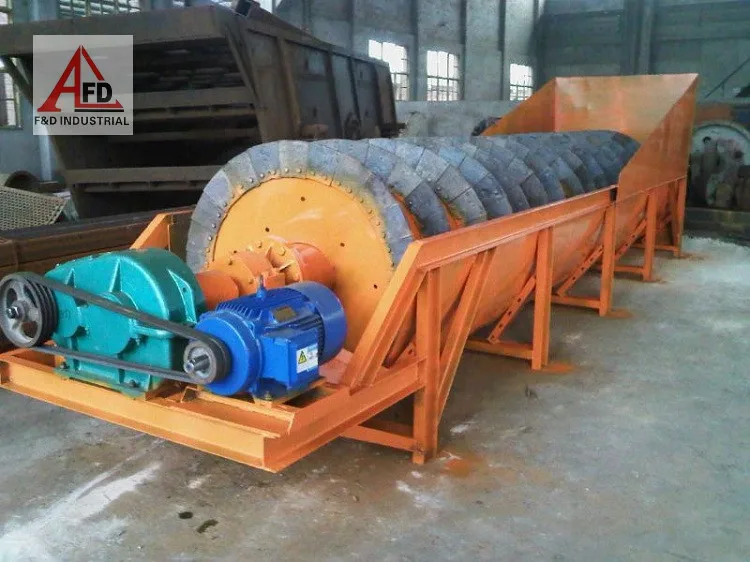

Spiral sand stone washing machine is mainly used in sand factory, electric pole factory, construction site and concrete dam to wash, classify and dewater various sand. It is a kind of water washing style equipment to be matched with sand making machine and can reduce the dust and stone powder which mix with final sand, so sand washing machine can improve the quality of sand.

Advantages

1. High efficiency, reasonable structure, high capacity and low consumption.

2. Long service life and low maintenance cost.

3. Compared with other sand washing machine, the loss of medium and fine sand is minimized, and the grade and fineness can meet the required standard.

4. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.

Technical Parameter



Model

Spiral diameter

(mm)

Trough length

(mm)

Capacity

(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSL0550

500

5000

10-20

3

6540×1220×1630

2.5

XSL0765

750

6500

20-50

5.5

8380×1570×1920

4.3

XSL1075

1000

7500

50-80

7.5

9550×1920×2270

6.7

XSL1275

1200

7500

70-110

11

9700×2320×2660

10.8

XSL1585

1500

8500

90-130

18.5

11000×2830×3150

13.7

XSL1885

1800

8500

110-150

22

11100×3320×3620

15.4

XSL2085

2000

8500

130-170

22

11340×3670×3880

19
