Distillation Column Internals Bubble Cap Tray Bubble Cap Supplier

Supplier: Nantong Sutong Separation Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sara Sha
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	5000 Ton/Tons per Year;	Model:	Bubble cap;
Type:	DN80 DN100 DN150;	Material:	Metal;
Brand Name:	SUTONG;	Package Preview:	;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash;	Name:	Bubble Cap Tray;
Certification:	ISO9001:2015;	Packaging Detail:	Wooden box or on customer requests;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Energy & Mining,Food & Beverage Shops;	Port:	SHANGHAI;
Application:	Column internal;	Function:	Mass transfer;
Response Time:	Within 24 hours;	Customized:	Yes;
Place of Origin:	Jiangsu China;	After-sales Service:	Provide;

Product Description

Product Introduction

Bubble Cap Tray is a kind of tower internals with many advantages such as low pressure drop, big surface area , high mechanical strength and so on. Bubble Cap Tray is widely used to increase gas-liquid contact area to improve mass transfer efficiency.

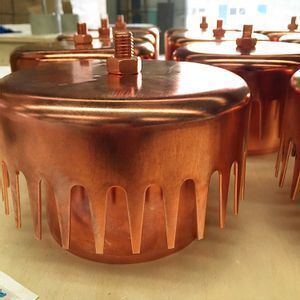

Bubble Cap Tray has riser or chimney fitted over each hole, and a cap that covers the riser. The cap is mounted so that there is a space between riser and cap to allow the passage of vapour. Vapour rises through the chimney and is directed downward by the cap, finally discharging through slots in the cap, and finally bubbling through the liquid on the tray.

Application

Bubble-Cap trays have numerous applications in refinery and gas plants.

Model		Material Type
Model		1			2
Norminal Dia. Dg		80	100	150	80	100	150
Slot Height H	1	20	20	35	20	20	35
	2	25	25	-	25	25	-
	3	30	32	-	30	32	-
Slot Breadth b1		4	5	R4/13.5	4	5	R4/13.5
Slot Number n		30	32	28	30	32	28
Slot Pitch f		8.38	9.82	17.7	8.38	9.82	17.7
Riser Pore Dia. d1		55	68	106	55	68	106

Random Packing

100% Response Rate

STRUCTURED PACKING

100% Response Rate

DEMISTER

100% Response Rate

Material Detecting

Factory Acceptance

Customer: ALFA LAVAL

DEMARK/INDIAN/BRAZIL/COLOMBIA

Product Name: Structured packing

Liquid distributor

Demister

Bed limiter

Support gird

Brand: SUTONG

Customer: MITSUBISHI, JAPAN

Product Name: Bubble cap trays

U type float valve trays

Random packings
Brand: SUTONG

Customer: PERSTORP FORMOX, SWEDEN

Product Name: Bubble cap trays
Brand: SUTONG

Customer: AIR LIQUID, QATAR

Product Name: Structured packings

                            Plastic random packings
                            Liquid distributor
                            Plastic Demister
                            Bed limiter
                            Hump Support
Brand: SUTONG

Customer: EK, France

Product Name: Structured packings
Random packings
Liquid distributor

                            Bubble cap trays
                            Demister
                            Bed limiter
                            Hump Support
Brand: SUTONG

Packing & Delivery

Project Achievements

Our Company

Company Introduction

Nantong Sutong Separation Technology Co., Ltd. (hereinafter: STT) is a company specialized in the design and manufacture of tower internals, packing, tower trays and the process of energy saving. Mainly develop the production, test and engineering service of mass transfer and separation in Chemical, Petrochemical, Refinery, Fertilizer and Environmental Protection areas. The relevant processes include rectification, absorb, extraction, regeneration, evaporation, stripping and waste water treatment of the tower separation, also including the design of dust filter and demister in the Environmental Protection. We can provide highly professional Engineering & Technology service, solve many difficult Engineering problems in different areas.

STT is a national High-tech company, the nominated supplier of Sinopec Group, the nominated company of National Technology Center of Chemical Engineering Design, the research and developing base and the only one nominated manufacturer of Nanjing University Separation Division, the nominated manufacturer of East China University of Science and Technology. We also established friendly cooperation with famous Design Institutes and Scientific Research Institute.

STT offer a complete technical consulting, engineering design, installation, commissioning test and key-delivered project, provide lifetime warranty to the undertaken project. We provide our clients the best priced tower packing, trays and tower internals with good quality, practical utility and high - efficiency. We can supply considerate service, and react quickly to the market for the research.
