Brand Name: | RBT; | Showroom Location: | none; |
Local Service Location: | none; | Color: | Customized Color; |
Key Words: | Warehouse AGV Car; | Warranty: | 1 Year; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,logistics storage; | Certification: | CE ISO; |
Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Gear; | Warranty of core components: | 1 Year; |
Video outgoing-inspection: | Provided; | Power supply: | Battery; |
After-sales Service Provided: | Field installation, commissioning and training; | Place of Origin: | Henan China; |
Usage: | Movement; | Feature: | Easy Operation; |
Marketing Type: | New Product 2020; | Advantage: | Professional; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Application: | Warehouse; |
Supply Ability: | 100 Set/Sets per Month cnc stone router; | Type: | Electric; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Condition: | New; |
Machinery Test Report: | Provided; | Product Name: | Fully automatic AGV transport car; |
Packaging Detail: | standard exportation package; | Port: | China main port; |
Package Preview: | ; |

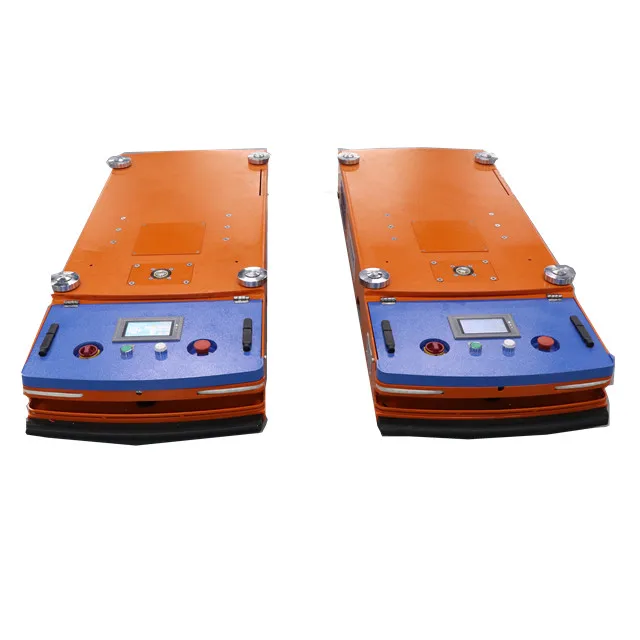

Best Welcome Fashion Factory Price Automated Guided Vehicle

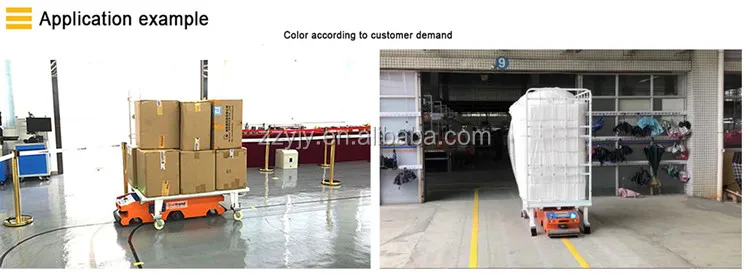

Automated Guided Vehicle (AGV) Systems Are Used For Transfer Materials In Warehouse Environments, And Movement Of Material From Production Areas And Storage Areas To Other Areas In Manufacturing Industry And Logistics.
AGV Application Can With Lifting Function, Conveyor, Robot Arm, Towing Hook, Etc.
We Can Customized Different Feature For You.
Parameters of Best Welcome Fashion Factory Price Automated Guided Vehicle
Number |
Item |
Basic Parameters |
1 |
Dimension |
L730mm*W510mm*H330mm |
2 |
Delivery method |
Bidirectional carrying type |
3 |
Navigation method |
Magnetic strip guidance |
4 |
Drive mode |
Differential speed driving |
5 |
Minimum turning radius |
600mm or spin around |
6 |
Driving speed |
0-35m/min |
7 |
Moving functions |
Move forward&backward, turn left&right and spin around |
8 |
Control unit |
PLC |
9 |
Wireless network |
WIFI/RF network |
10 |
Landmark type |
RFID |
11 |
Stop Accuracy |
±10mm |
12 |
Maximum weight loading capacity |
100KG |
13 |
Power supply mode |
DC24V |
14 |
Battery capacity |
20AH~40AH |
15 |
Duration |
≥8h |
16 |
Charging method |
Offline charging/Online charging |
17 |
Operation Interface |
Touch screen |
18 |
Safety prevention |
Roadblock detecting sensor+machianical bumper+emergency stop button |
19 |
Error warning system |
Tricolor light+buzzer |
20 |
Applied environment |
Indoor;temperature:0-50°C,humidity:60-80;gradient<2 |
21 |
Working life/ |
10 years |
1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500t

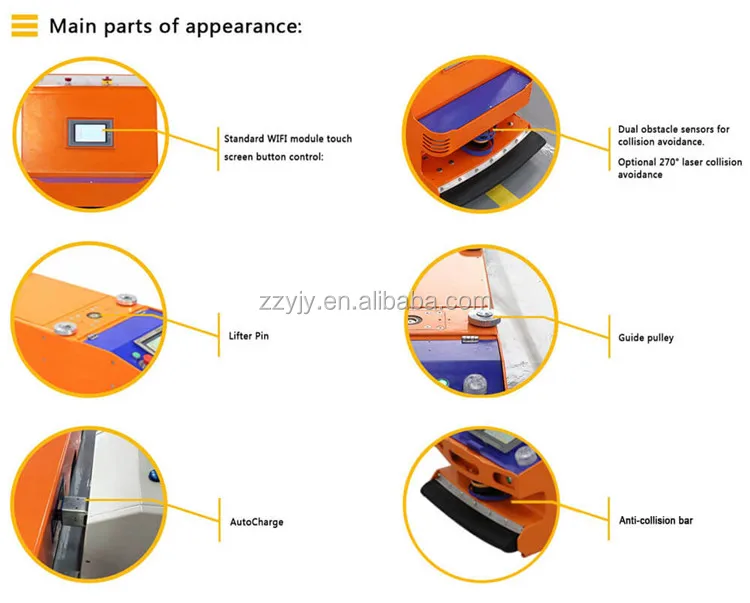

3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Package Detail:
1)Outside package:Standard plywood package.
2)Inner package:Stretchy film and plastic film for humidity.
3)Also we can package according to your requests.
Delivery Detail:
1)For standard machines,it will be 7-15 working days after payment
2)For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
Pre-Sales Service:
1)Inquiry and consulting support.
2)Detailed professional product quotation
3)View our Factory.
After-Sales Service
1)Training how to instal the machine, training how to use the machine.
2)Engineers available to service machinery overseas.
3)Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4)Provide english version manual and operation video CD disk.
5)1 year guarantee for whole machine.
6)If you need any component of the machine,we will provide the best price for you.
1)If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.
2)How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
3)How about your guarantee period?
One year.If you have any questions during this time,we will solve it for free.
4)How long is your delivery time?
Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
