Elegant Shape Industrial Robotic Arm Robot For Weld

Product details
Dimension(L*W*H):3000*1100*1500mm;IP level:body IP54 wrist IP67;
Warranty:1 Year;Product name:arm robot for weld;
Brand Name:RBT;Supply Ability:100 Set/Sets per Month;
Material:Metal;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Power:2000;Application:Painting cutting handing marking grinding assembly;
Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Printing Shops,Construction works ,Energy & Mining,Advertising Company;Horizonal Travel(mm):2500;
MOQ:1 Sets;Port:China main port;
Package Preview:;Condition:New;
Packaging Detail:standard exportation package;Place of Origin:Henan China;
Vertical Travel(mm):900;Certification:CE ISO;
Max loading:10 Kg;Type:Fully Automatic;
Weight:170kg;Axis:6;
Keyword:arm robot for weld;After-sales Service Provided:Field installation, commissioning and training;
Color:Customer Required;

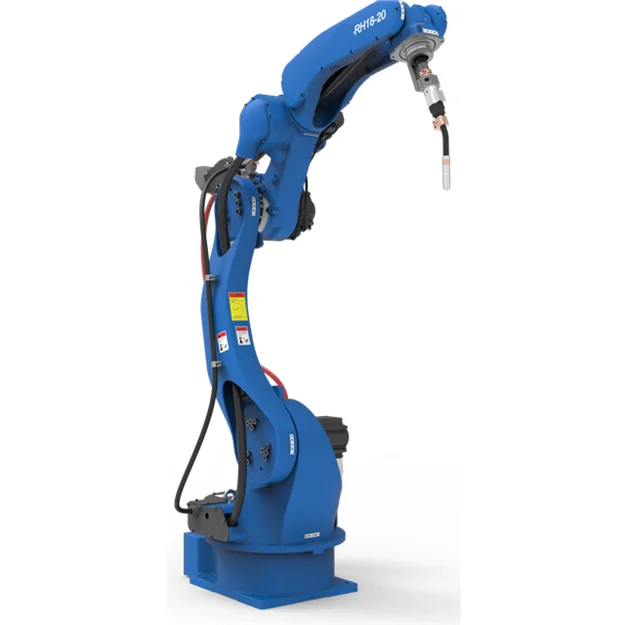

Elegant Shape Industrial Robotic Arm Robot For Weld

Product Description

Main Features ofElegant Shape Industrial Robotic Arm Robot For Weld

1.(1) High quality multi-axes (6 axis, 5 axis, 4 axis) industrial robotic arm with payload 3kg 5kg, 6kg, 7kg, 8kg, 10kg, 12kg, 20kg, 25kg, 30kg, 50kg, 60kg, 80kg,120kg, 165kg, 210kg.
 (2) 4-axis SCARA robots with payload 3kg and 6kg.
 (3) Self-developed electrical arc tracker, laser tracker.
 (4) Welding positioner, walking rail track.
 (5) Free professional and detailed training.
 (6) Life-long comprehensive 24-hours technical support.
 (7) Pre-selling technical support. Our professional engineers help clients choose the correct robots.
 (8) Abundant software functions on different-types working processes.Including palletizing, welding, spraying, appointment, remote, tracking, vision, punching, bending applications etc.

2.Our products are widely applied in machine tool loading and unloading, pick and place, welding, palletizing,material handling, deburring, spraying etc. We have more than 40 patents and intellectual property rights.

3.The advantages are : High quality, highly cost-effective, Well-knit compact structure, high speed, high precision, high expansiblity, easy operation, high flexibility, high reliability, easy maintenance.





Parameter list

 Parameters of  Elegant Shape Industrial Robotic Arm Robot For Weld

Number of shaft:6 axis (J1, J2, J3, J4, J5, J6, Xs, Ys)
Payload:3kg
Repeadted Positioning Accuracy:±0.05mm
Self Weight:56kg
Installation Method:Ground Mounted
Power Capacity:1.1kw
Maximum Reach Distance:800mm
Minimum Reach Distance:190mm
Axis J1(turn):±170°
Axis J2(lower arm swinging)-90°+75°
Axis J3(uper arm swinging)-90°+90°
Axis J4(arm rotary)±170°
Axis J5(wrist pitch)±120°
Axis J6(wrist rotary)±360°
Axis J1(turn)190°/s
Axis J2(lower arm swinging)225°/s
Axis J3(uper arm swinging)270°/s
Axis J4(arm rotary)270°/s
Axis J5(wrist pitch)337°/s
Axis J6(wrist rotary)420°/s
Synthetic arm tip speed:1.5m/s
End flange:solid
Can it be changed to 5 axis?Yes
Main Application:Material handling,palletizing,machine tool loading and unloading,teaching,playing chess









Robot System

Product Application of Elegant Shape Industrial Robotic Arm Robot For Weld

It‘s widely used in furniture, building material area, food and beverage area, pacakaging area, chemical area and so on, we will according custom requirements design right robot grip.

Packaging & Shipping

Package Detail:

1).Outside package:Standard plywood package.
2).Inner package:Stretchy film and plastic film for humidity.
3).Also we can package according to your requests.
Delivery Detail:

1).For standard Machinees,it will be 7-15 working days after payment

2).For non-standard Machinees and customized Machinees according to clients' specific requirements,it will be 15 to 30 working days after payment.

Our Services

Pre-Sales Service:
1. Inquiry and consulting support.
2.Detailed professional product quotation
3.View our Factory.
After-Sales Service

1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3.Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4.Provide english version manual and operation video CD disk.
5.1 year guarantee for whole machine.
6.If you need any component of the machine,we will provide the best price for you.

Company Information



FAQ

Q: How about your after-sales service?

A:We offer you 24 hours service phone,skype or MSN.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How about your guarantee period?

A: One year.If you have any questions during this time,we will solve it for free.

Q:How to provide robot packing solution?

A:Provide your packing requirments, like produts, packing way, workshop area.

Q:How to desing robot gripper/tongs/grab/arm?

A: According to client demand to design.

Q: How ensure our robot grip/tongs/grab works?

A: Before shipping, we will make test and we send test video to clients.
