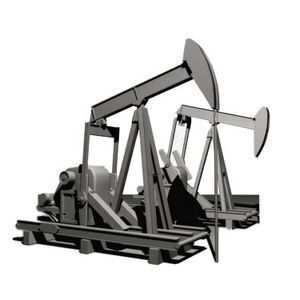

API C-320D-256-120 Oilfield Pump Jack

Product details
Core Components:Pump;Certification:API 11E;
Condition:New;Port:QingDao,TianJin,ShangHai;
Machinery Test Report:Provided;Applicable Industries:Energy & Mining;
Marketing Type:New Product 2020;Warranty:1 Year;
Weight:4-44Tons;Gear reducer model:40~1824;
Dimension(L*W*H):(5-13.63)*(2-3.6)*(3.5-10.6);Voltage:380V;
Features:Conventional Walking-beam;Video outgoing-inspection:Provided;
Local Service Location:United States,France,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Japan,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Romania;Product name:API C-320D-256-120 Oilfield Pump Jack;
Showroom Location:United States,Italy,Philippines,Brazil,Peru,Saudi Arabia,Mexico,Russia,Kenya,South Korea,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Nigeria;Model Number:C-40D~C-1824D;
Gear reducer lubricant:120# gear lubricant in winter,200# gear lubricant in summer;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Production Capacity:100%;Warranty of core components:1 Year;
Gear type:Involute gear reducer;double circular arc gear reducer;Place of Origin:Shandong China;
Brand Name:SJ;Load Rating:7600~42700lbs;
Rated torque:40000~1824000in.lbs;Supply Ability:100 Set/Sets per Month API C-320D-256-120 Oilfield Pump Jack;
Packaging Detail:Package for the whole unit and transported with the container, each unit will need 0.5-2 no. of containers (according to the size of model) for API C-320D-256-120 Oilfield Pump Jack;Crank direction:Clockwise and Counterclockwise;
Stroke frequency:4~12;Stroke length:48~216inch;
Blanced type:crank blanced;

API C-320D-256-120 Oilfield Pump Jack

Product Description

Shengji can provide a wide range of API pumping units depending on users’ requirements. They come with a 1-year warranty. Shengji API units are available according to customer requests. They can choose from double circular arc gear reducer or involute gear reducer. Shengji has nearly 200 pumping unit processing equipment and a complete production tooling that guarantees accuracy in the manufacturing process. Shengji pumping unit has the following key parts: crank pin, taper sleeve and a tailstock. By improving the supporting equipment, scientific processing technology, strict quality control,superb technical level; Shengji API pumping units are also suitable for inferior working conditions. These API pumping units are reliable and stable, hence their popularity among customers since Shengji uses forging for key parts.

Shengji exports more than 600 API pumping units annually with most products sold to reputable companies such as PDO, CENTRY, SHORESS, Schlumberger, OMV.  Shengji pumping units have low failure rates.

Features

1. Carry out API 11E standards strictly.

2. Reducer with API production qualification.

3. Complete production tooling.

4. The use of forgings in key parts.

5. Engineers available to service machinery overseas

Specifications

NO.

Model

Load Rating

(lbs)

Stroke length

 (in)

Stroke frequency

(min -1)

1

C-40D-76-48

7600

48;37;26

6;9;12

2

C-57D-76-54

7600

54;41;28

6;9;12

3

C-80D-133-54

13300

54;43;31

6;9;12

4

C-80D-119-64

11900

64;52;40

6,8,10

5

C-114D-119-86

11900

86;76;59

6,8,10

6

C-114D-143-64

14300

64;52;40

6,8,10

7

C-114D-143-74

14300

74;62;50

6,8,10

8

C-160D-173-86

17300

86;74;61

6,8,10

9

C-160D-200-76

20000

76;62;51

6,8,10

10

C-228D-213-120

21300

120;102;85

5,7,9

11

C-228D-246-86

24600

86;74;61

5,7,9

12

C-228D-173-100

17300

100;86;71

5,7,9

13

C-320D-305-120

30500

120;102;85

5,7,9

14

C-320D-256-120

25600

120;100;86

5,7,9

15

C-456D-305-120

30500

120;102;85

5,7,9

16

C-456D-305-144

30500

144;124;106

4,6,8

17

C-640D-365-144

36500

144;124;106

4,6,8

18

C-640D-365-168

36500

168;142;116

4,6,8

19

C-640D-305-168

30500

168;142;116

4,6,8

20

C-640D-365-192

36500

192;164;136;110

4,5,6

21

C-912D-365-144

36500

144;124;106

4,6,8

22

C-912D-365-168

36500

168;142;116

4,6,8

23

C-912D-305-192

30500

192;168;135;120,95,74

4,5,6

24

C-912D-365-192

36500

192;164;136;110

4,5,6

25

C-912D-427-144

42700

144;124;106

4,6,8

26

C-912D-427-168

42700

168;142;116

4,6,8

27

C-912D-427-192

42700

192;164;136;110

4,6,8

28

C-1280D-365-192

36500

192;164;136;110

4,5,6

29

C-1280D-427-192

42700

192;164;136;110

4,5,6

30

C-1280D-427-216

42700

216,192;168;144

4,5,6

31

C-1280D-427-240

42700

240;207;175;145

4,5,6

32

C-1824D-427-192

42700

192;164;136;110

4,5,6

33

C-1824D-427-216

42700

216;192;168;145

4,5,6
