Shanghai Cixi The Local Display 0.5% Cast iron material PD Mechanical Fuel Oil Oval Gear Flow Meter

Product details
Single package size:32X25X33 cm;Place of Origin:Shanghai China;
Single gross weight:17.0 KG;Brand Name:GN;
Flow range:40-120000L/H;Warranty:free one year;
Type:Variable Area Petrolum Flowmeters,Variable Area Oil Flowmeters;Medium:Oil,liquid;
Certification:GS;Selling Units:Single item;
Experiences:more 20 years;Output:pulse,4-20ma,hart;
Certificate:ISO ,CE,SGS;Accuracy:0.5%;
Max temp:165C;Model Number:CX-OGFM-;
Max pressure:5.0Mpa;Customized support:OEM,ODM,OBM;
Certificates:ISO,SGS and CE certificates;

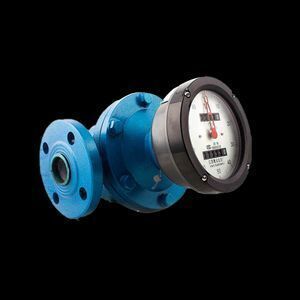

The Local Display 0.5% Cast iron material PD Mechanical Fuel Oil Oval Gear Flow Meter

Related product

Product Description

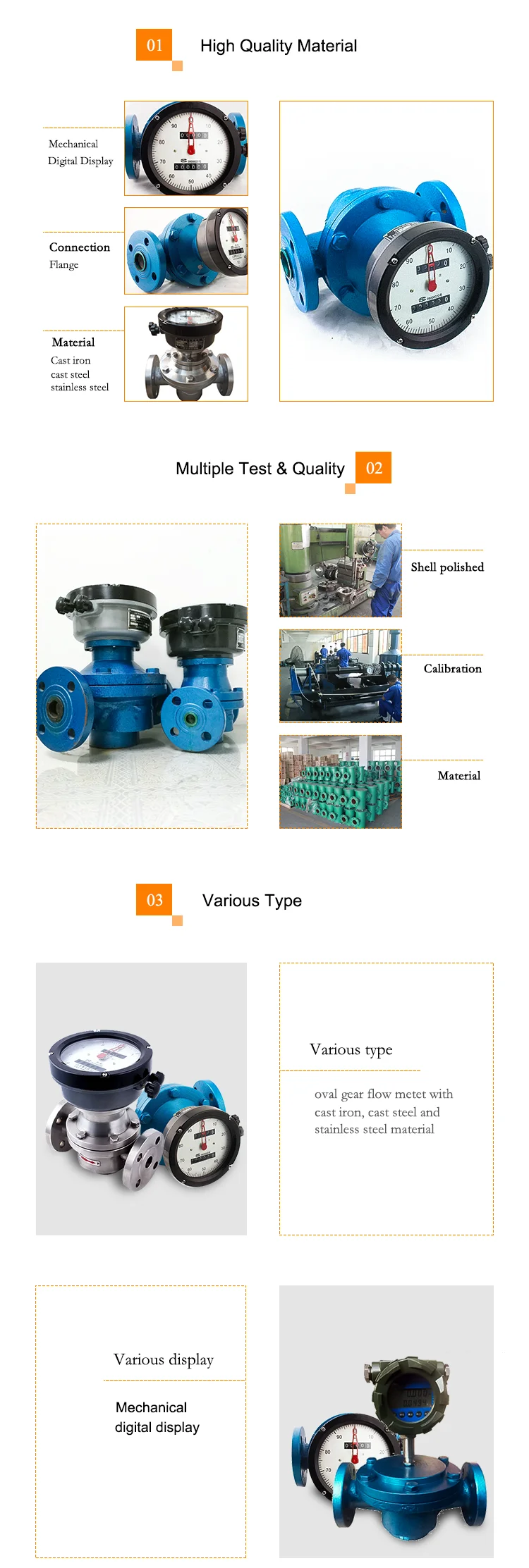

A.[Features of Cast iron material PD Mechanical Oval Gear Flow Meter]



Widely range of liquid viscosity

the viscosity of medium is 0.6Mpa.s~250Mpa.s



Various of Display and Output

The Cast iron material PD Mechanical Oval Gear Flow Meter with digital display and mechanical display ;pulse or 4~20mA Output;



Various applications

the Cast iron material PD Mechanical Oval Gear Flow Meter suitabke for various applications such as chemical industry ,oil,medicine and electricity,etc.



High accuracy

Beacuse of the principle of Cast iron material PD Mechanical Oval Gear Flow Meter,the accuracy is 0.5% or 0.2%.

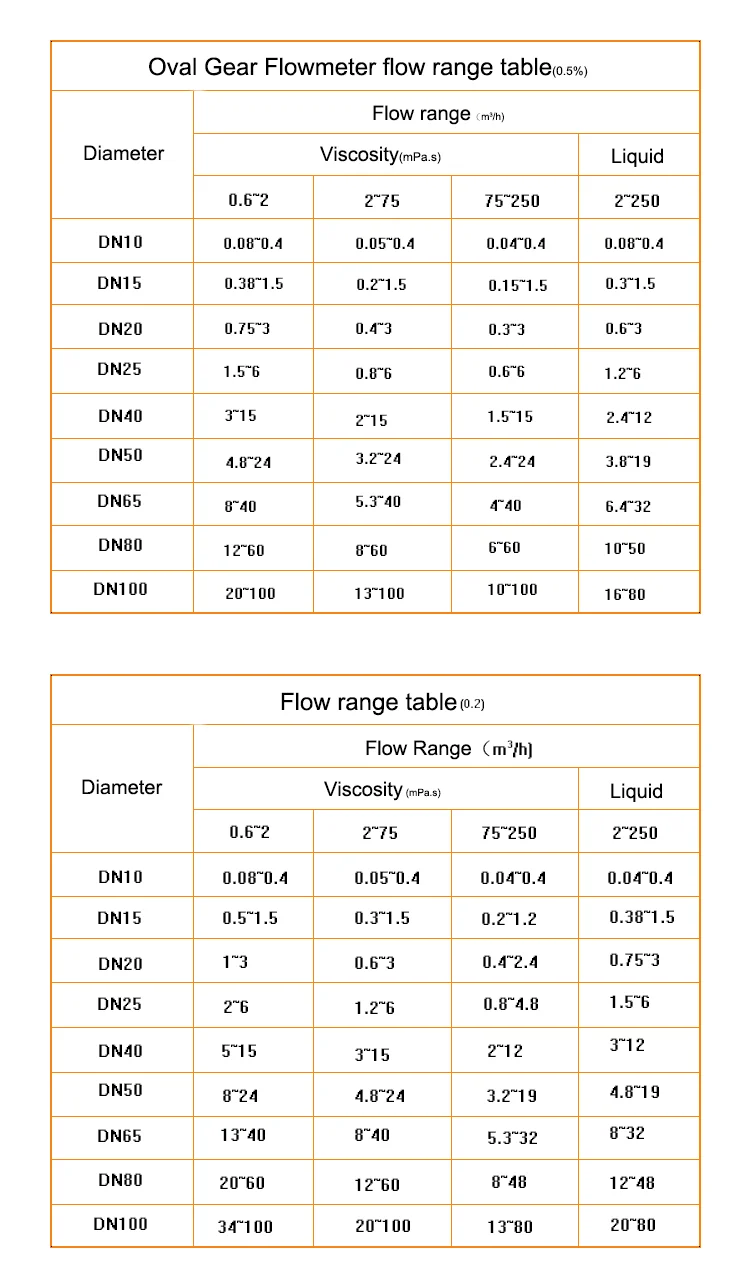

B.[Parameters]

 Production Name  Cast iron material PD Mechanical Oval Gear Flow Meter
 Medium  Main Medium is Oil
 Accuracy  0.5% or 0.2%
 Output  Pulse output ,4~20mA Output and without output
 Material  Cast iron,cast steel or stainless steel material
 Display  LCD Display or Local Mechanical display
 Function  Return to zero function
 Accessories  ''Y''Filter or square filter
 Temperature  -20~100℃
 Viscosity  0.6Mpa.s~250Mpa.s

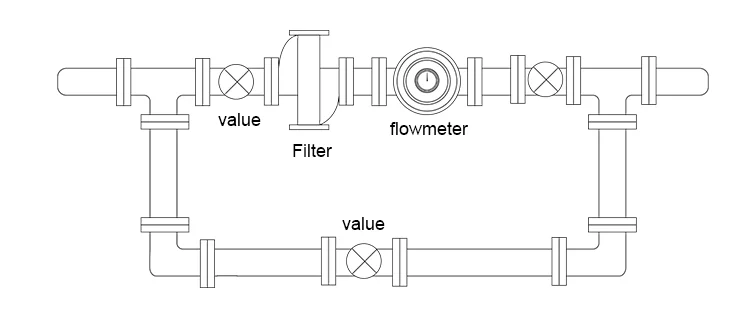

C.[Installation]

  • The flow direction should be same as the sign on the body,the location must be convenient for you reading.
  • The Cast iron material PD Mechanical Oval Gear Flow Meter should be installed at normal temperature location where without harmful gas to avoid damaging the flow meter;
  • Pls installa the bear horizontal state

  • Pls keep the pipeline is clear before installa the flow meter and installa the filter to avoid the Impurities got into pipe.
  • The flow adjusted value should be installed at downsteam,First,you should open the adjusted value and second to open the shut-off value.
  • Pls ensure the liquid without any gas;
  • If the mediun's viscosity is high,sometime ,you should heating to reduce the viscosity;

D[Company info]

  • Our Company is Top 10 Manufacture on Alibaba;
  • We have about 30 years of experience in Manufacture;
  • Our products have been exported to more 100 coutries and area;
  • ISO,SGS,CE and more ceterficates for you reference;
  • Patent technology and more than 3 years working life
