Quality Goods Magnescale SONY Linear Scale

Click here to contact

Product details

Brand Name:	SONY;	Product name:	Quality Goods Magnescale SONY Linear Scale;
Place of Origin:	Guangdong China;	product item:	SONY Linear Scale;
Delivery type:	by express ,air,ship;	Delivery time:	within a week;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Plug:	7pin ot 9pin;
Supply Ability:	500 Set/Sets per Week we have two produce line to make it;	MOQ:	1 set;
voltage range:	110V-220V;	color:	Black;
Resolution:	0.001mm, 0.005mm,0.01mm;	number of axis:	2, 3 or 4;
Model Number:	SONY Linear Scale;	Delivery Detail:	delivery within two days after receive the payment;

Welcome BiGa grating Machinery company !!!

Your every requirement will treated seriously!

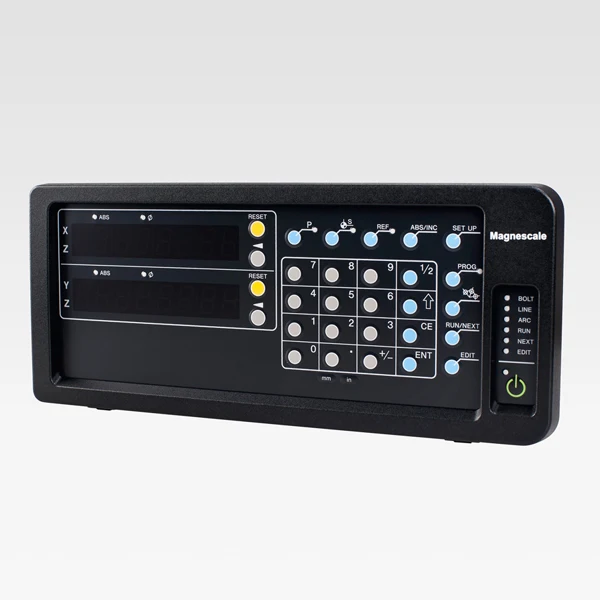

Digital Display Digital Display

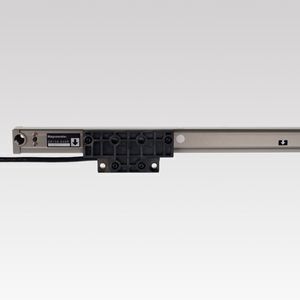

This is SONY Linear Scale .

Digital Display Digital Display Digital Display

Our product SONY Linear Scale widely applied to milling machine,grinding machine,lathe,

EDM and so on.According to customer’need,the company can supply products such as

grating of special types and specifications,as well as magnescale,both assorted with other

apparatus and special mechanical equipments.

Digital Display Digital Display Digital Display

1.The technical parameter of SONY Linear Scale

Temperature range	Service:0~40°C/Storage:-20~70°C
Power source	Ac110~240V50~60hZ30VA 0.5A
Number of axis	2/3
Display function	8LED
Quantizing error	±1
Readout box input signal	TTL square wave
Input frequency	>100KHZ
Resolution	10um, 5um, 1um, 0.5um
Operating keyboard	light touch buttons
Linear scale Grating space	0.04mm, 0.02mm, power supply is +5V. the difference between two and four TTL o utput signal is 90°.
