MS300-600 wood Profile Wrapping Machine with PUR Hot Melt Glue

Supplier: Jinan Amachine Machinery Co., Ltd
Region: Shandong, China
Contact: Ms Yolanda Lee
Price: $6200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Based profile:	Profiles;
Certification:	SGS/CE;	Power:	15kw;
Brand Name:	Amachine;	Warranty:	1.5years;
Port:	Qingdao port;	Place of Origin:	China;
Voltage:	Custom;	Supply Ability:	20 Set/Sets per Quarter;
Payment Terms:	T/T;	Packaging Detail:	Standard exporting packages;
Dimension(LWH):	5000x950x1800mm;	Glue Type:	hot glue;
Weight:	600kgs;	After-sales Service Provided:	Free spare parts;

PUR hot glue profile wrapping machine

wood Profile Wrapping Machine with PUR Hot Melt Glue

Large size PUR hot melt aluminum profile wrapping machine for PVC film

How to work:

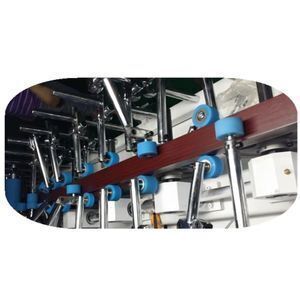

Simulates the manual veneer movement, Paste the decoration film on the surface of the base profiles by various press wheels .The center line or the highest point or the lowest point of the profile is generally selected as the starting point. The profile is fixed point by point and the profile is sequentially fixed to form the envelope line of the profile.

MS-PUR-300 hot glue wrapping machine

Available cladding material: Pvc decorative film, decorative paper, solid wood veneer, Boeing board, composite aluminum film,etc.

Advantages: 1)Dont need heat after gluing , no volatilization ,good to environmental protection

2) Machine price is economic , and wrapping speed is faster.

Disadvantage: 1)Higher cost in PUR glue and wrapping film, 2)when wrap samll workpiece , it will waste much 3)Because of faster wrapping speed , it is hard to control , and easy to run off .

MS300 technical parameters

Gluing method	Coat hot glue by roller
Wrapping width	300mm
Wrapping height	80mm
Warpping length	600mm and above
Feeding speed	0-50m/min
Total power	15kw
Overal size	5000x950x1800mm

Company introduction

1. Own three factoris involved Aluminium profiles processing machine , AL/PVC window and door machines , Insulation glass machines.

2. Machine quality ,delivery time , after-sale service ,etc can be definately guaranteed ,

3. Machine price is definatley much more competitive than other trading company .

4. Machine guarantee time is definatley longer than others.

5. Machines have been exported to almost 20 countries .

Our service

1. Provide free installation service.

2. Design according to your requiremnts for free.

3. Provede technical assistance and analysis for fee

4. Machine Accissories will be provided for free .

5. Customers can get in touch with us any time by email , phone , etc.

Packages & shipping

All machines are packed in safe standard exporting wood cases .

Frequently asked questions

1.Q: if machines can be customized according to requirements?

A: Yes , definately

2. Q: Lead time for a fully automatic powder coating production line?

A: 25-35 working days.

3.Q: What you can do if my machines have problems?

A: 1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

4.Q :Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5. Q:If I make Aluminum window and door, how many basic machines required?

1).double head cutting saw

2).Lock hole copy milling machine

3).End milling machine

4).Automatic Corner connector automatic cutting saw

5).Single head Corner combining machine
