Low Price Toilet Paper Making Plant,Small Scale Toilet Paper Making Machine

Supplier: Zhengzhou Mayjoy Import & Export Co., Ltd.
Region: Henan, China
Contact: Ms Danielle Ren
Price: $7000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Embossing parts:	Steel roller,wool roller,Rubber rollers;	Core Components:	PLC,Engine,Gear,Motor,Bearing,Gearbox;
Weight:	2500kg;	Video outgoing-inspection:	Provided;
Certification:	ce;	Product Type:	Toilet Tissue;
Supply Ability:	50 Unit/Units per Week;	Warranty:	1 Year;
Machinery Test Report:	Not Available;	Brand Name:	Mayjoy;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Produce speed:	0-200meter/min;
Power:	4-11kw,6.25kw;	Showroom Location:	India,Uzbekistan;
Production Capacity:	2.5ton/day;	Port:	Qingdao Ningbo;
Paper remove shelf:	1-3 layers;	Name:	Small Scale Toilet Paper Making Machine;
Program controller:	PLC computer Program;	Packaging Detail:	Plywood package,wooden case or in container or in proper way;
Payment Terms:	L/C,T/T,Western Union;	After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Applicable Industries:	Hotels,Restaurant,Home Use;	Warranty of core components:	1.5 years;
Brake:	Electric,pneumatic control;	Volatge:	380v50hz;
Model:	MJT-1575;	Dimension(LWH):	650032001700mm;
Marketing Type:	New Product 2020;	Processing Type:	Paper Slitting and Rewinding Machine;
Place of Origin:	Henan China;	Voltage:	380v;
Package Preview:	;	Local Service Location:	India,Uzbekistan;
Condition:	New;

Low Price Toilet Paper Making Plant,Small Scale Toilet Paper Making Machine

Introduction of Small Scale Toilet Paper Making Machine

Our factory original produce automatic toilet paper rewinder adopting international advanced PLC computer programming technology, and frequency adjustable speed, and electronic brake and the configuration has touch type picture human-computer interface system, latest development free core volume paper forming complex volume system, reached rewind volume effect with core or no core , one machine more with more usage, makes machine in years of market put using can full upgrade, makes the operation more convenient and shortcut, greatly improve the production efficiency.

Technical of Small Scale Toilet Paper Making Machine

Name	Automatic toilet paper rewinder drilling machine
Model	MJT-1575	MJT-1760	MJT-1880	MJT-2800	MJT-3500
Original paper width	1800mm	2000mm	2200mm	2800mm	3500mm
Original paper external dia	1100mm(specification can order by customer need)
Finished product dia	Adjustable
Program controller	PLC computer Program
Produce speed	0-200meter/min
Embossing parts	Steel roller,wool roller,Rubber rollers
Embossing situation	No Embossing ,single layer Embossing,double layer Embossing (need order)
Machine conveyor	Continuously variable transmission, the host machine not adopt belt conveyor to ensure every section distance and the whole length accuraction .
Paper remove shelf	1-3 layers
Brake	Electric,pneumatic control
Main power	5.5kw-11kw
Dimension	according different model
Total weight	according different model

Features of Small Scale Toilet Paper Making Machine

1. This model is designed with PLC control system, fully automatic in production process, the function is complete and the production speed is high. The finished rewinding process implements tight first and loose later and different stage loose degree, resolve paper and core apart in the long storage time.

2. It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower

speed when exchanging the core.

3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes. Automatic alarm for breaking off of paper.

5. Equipped separate tension control for each unwinding jumbo roll.

6. It is convenient to change the feature to produce any other core pipe winding.

7. Left paper remind after sealing of product for convenient use.

8. Jumbo roll stand is installed by pneumatic.

9. Stepless adjustment , every function can independent operation.

10. Three layer horizontal paper remove shelf, pneumatic type wide belt for

paperfeeder, each group of original paper shelf has independent tension adjustment device ; point-to-point embossing, pattern is distinct and beautiful, light weight, can be configured according to the user's needs for steel to steel embossing ;inching switch for the traction of the original paper, the operation is simple, safe and practical.

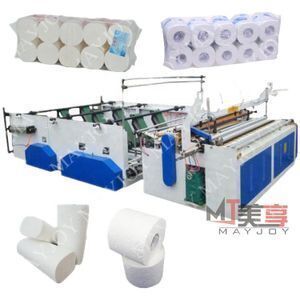

Image Photos of Small Scale Toilet Paper Making Machine

Support Equipment:

1)Toilet paper cutting machine

The toilet paper cutting machine is to make the cutting the long Stripe toilet paper(or strip big square paper) to The into needed specifications rolls toilet paper or different square towel paper.small area,easy operation,wheel with glue no noise;equipment device automatic grinding force,Move plate device,reliable run performance,high productively.

Model:	MJ-Q
Paper roll size:	≤ 1300(dia)*3500mm
Final dimension:	80-280mm(dia), length adjustable
Capacity:	3000kg/day
Power supply:	1.5kw
Machine size:	13308001800mm
Weight:	500kg

2)Toilet paper sealing machine

Toilet paper sealing --water-cooling -sealing machine, in common condition equip with the toilet paper rewinder machine and toilet paper cutting machine ,mainly for sealing the toilet paper packing bag.
1.This sealing machine is convenient to operation ,sealing tight,high efficient
2.Adopting water cool principle,reduce cooling time of the sealing part, prolong the high temperature tape using life ,make the sealing parts have a better effective.

Model:	MJ-S
Power supply voltage	220V
Power	30-100w (water pump); 50w(heating wire)
Heating wire size	5*0.3mm (sealing heat wire) 0.5mm(cutting wire dia)
Sealing width	380-800mm
Machine size	850700800mm
Machine weight	45kg

Our service:

1. Quality guarantee

We are not only selling machines, also provide you the most satisfying after-sale service.

We will, without charge, offer replacement for defective parts which is caused on product quality in one year. Lifelong service is offered with cost charge after one year.

2.Packaging & Shipping

We can help you to arrange shipment by Sea, by Air or by Express. We also accept customer inspection on the goods before delivery.

The goods will be packed in standard export wooden case or if in large quantity, in 20 feet or 40 feet container.

3. Overseas Service

Our engineer can go to your workshop for installation and maintenance by customer's requirement.

Related Products:

We also have napkin paper,toilet paper,facial tissue paper,handchierf paper processing machinery.If you have great interests in our products,pls feel free to contact me:
