Aluminum Profile Doors Window Double Mitre Cutting Saw Machine

Supplier: Shandong Eworld Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Ewin Wang
Price: $3300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Input voltage:	230/460V /3/60Hz;	Cutting width:	10~120mm;
Applicable Industries:	Manufacturing Plant;	Core Components:	Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC;
Cutting angles:	90, 45;	Port:	China Port;
Marketing Type:	Ordinary Product;	Certification:	CE&ISO;
Voltage:	230/460V /3/60Hz;	Warranty:	1 Year;
Machinery Test Report:	Provided;	Supply Ability:	50 Set/Sets per Month Double head miter saw for PVC UPVC Plastice window;
Payment Terms:	T/T,Western Union,MoneyGram;	Input power:	3Kw;
Packaging Detail:	Cutting miter saw UPVC window machine ,seaworthy wooden box;	Power:	3Kw;
Saw feeding speed:	0~3m;	Name:	Aluminum Windows And Doors Frame Double Head Cutting Saw;
Weight:	1500KG;	Air pressure:	0.5~0.8MPa/ 120psi;
Warranty of core components:	1 Year;	Air consumption:	60L/min;
Package Preview:	;	Showroom Location:	None;
Applicable Material:	Aluminum;	Cutting length:	400~3700mm;
Key Selling Points:	Easy to Operate;	Motor rotation speed:	2800r/min;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Dimension(LWH):	4.5x1.2x1.4m;
Brand Name:	Eworld;	Video outgoing-inspection:	Provided;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Production Capacity:	100%;
Local Service Location:	None;	Condition:	New;

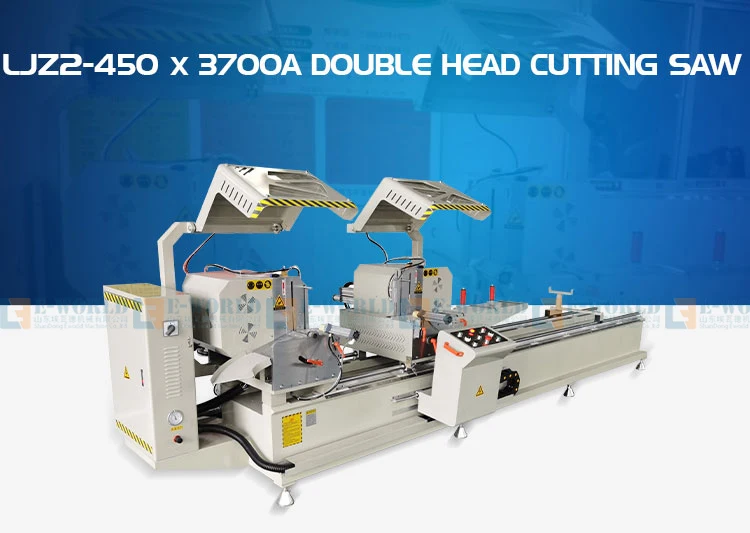

Aluminum Profile Doors Window Double Mitre Cutting Saw Machine

Product Description

Double-head Saw machine is used for cutting aluminum profiles. The main spindle is manufactured by the specialized manufacturer. And the imported linear bearing motional pair is used to move the head horizontally. The blade feeding is hydraulic damping drive with large processing range. And the maximum cutting length is 3700mm. The cutting angle is 45 angle and 90 angles.


MODEL	LJZ2-450*3700A
Input voltage	230/460V /3/60Hz
Input power	3Kw
Air pressure	0.5~0.8MPa/ 120psi
Air consumption	60L/min
Motor rotation speed	2800r/min
Cutting length	400~3700mm
Cutting length tolerance	+ 0.005

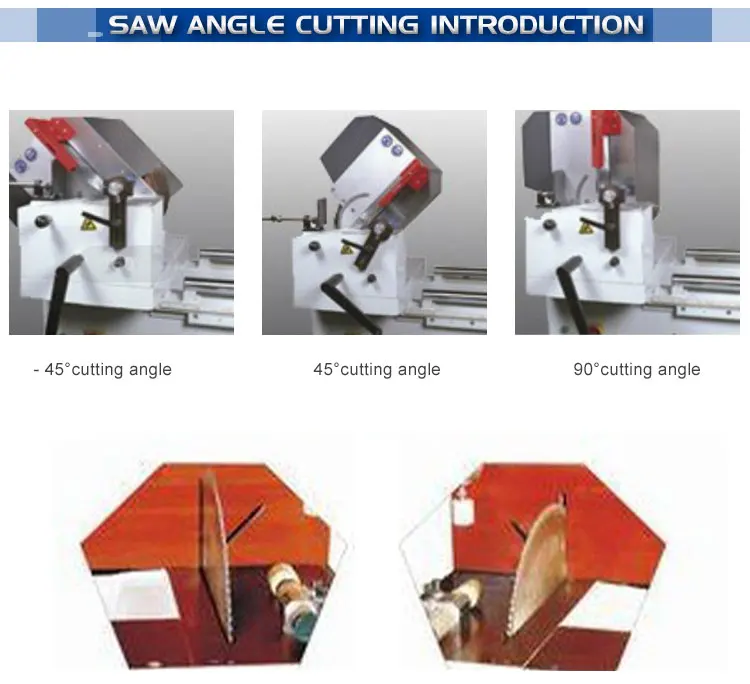

Cutting angles	90, 45
Cutting width	10~120mm
Cutting height	10~200mm
Saw feeding speed	0~3m
Saw blade standard	450mmx4.4x30xZ120
Overall dimensions	4.5x1.2x1.4m

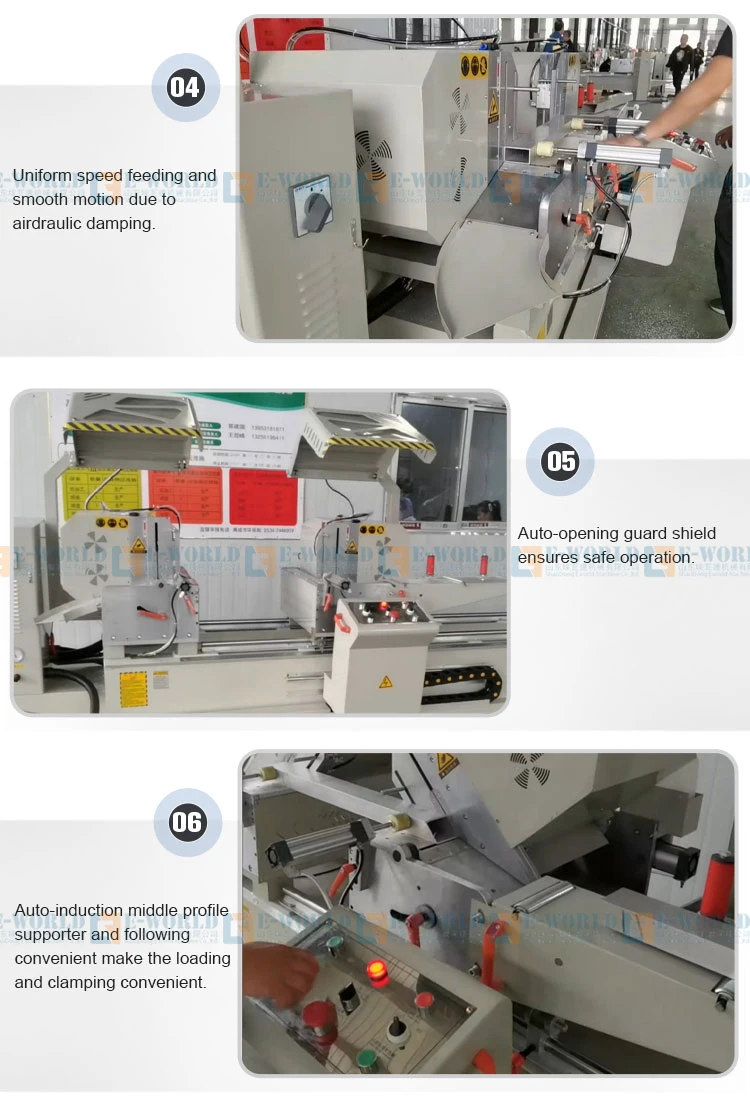

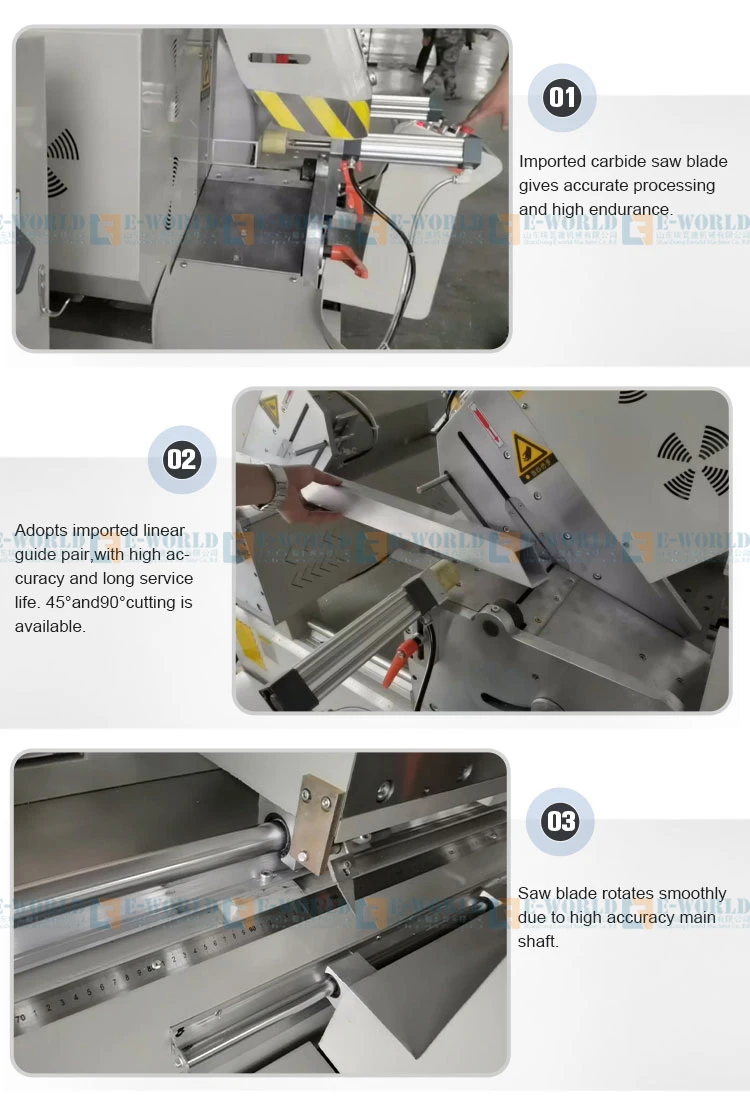

Product Details

Company Information

Shandong Eworld Machine Co.,Ltd,which belongs to Eworldgroup( HK), is one of the famous and big manufacturers of glass equipments, windows equipments, CNC equipments. Since its inception in 2002, and after many years of development and growth, the company is now playing a leading role in glass machinery and windows door machine in China.Eworldgroup has 12 factories,which is located in Foshan,Bengbu,Weifang,Dezhou,Rizhao,Jinan City.Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of “EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers with the best service.

Eworld Machine main products: Double Insulating Glass Machine , Glass Washing machine, Glass Cutting machines, Glass Edge machines, Glass laminating machines,Glass Handling Lifter,CNC Glass Machining Center,Glass Screen Printing Machine,Glass Sandblasting Machine,Cutter Plotter, CNC Router,Laser Machines,PVC window and door machine,Aluminum window and door Machines.
