Automatic CE Hot Sale Glass Beveling Edging Machine With Top Quality

Supplier: Shandong Eworld Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Ewin Wang
Price: $17000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Control system:	PLC(Mitsubishi);	Weight:	3500kg;
Local Service Location:	None;	Machine Type:	Glass Straight-Line Beveling Machine;
place of origin:	Shandong ,China(Mainland);	Production Capacity:	0.7-3.5m/min;
Marketing Type:	Ordinary Product;	Glass Thickness:	3-25mm;
Warranty of core components:	1 Year;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Certification:	CE certification,ce;	Condition:	New;
Usage:	Highly automatic;	Driven Type:	Electric;
Brand Name:	Eworld;	Package Preview:	;
Showroom Location:	None;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Packaging Detail:	seaworthy wooden box;	after-sales services:	Full set services;
Dimension:	700012002500mm;	Warranty:	1 Year;
Voltage:	380V/50 Hz;	Name:	Horizontal glass stright-line edging machine;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Brand:	Eworld;
Key Selling Points:	Easy to Operate;	Dimension(LWH):	7m * 1.2m * 2.5m;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Power:	21kw;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Application:	Glass Deep Processing;	Core Components:	Pressure vessel,Motor,Bearing,Gear,PLC,Pump,Engine,Gearbox;
Supply Ability:	30 Set/Sets per Month;	Place of Origin:	Shandong China;
Port:	China Main Port;

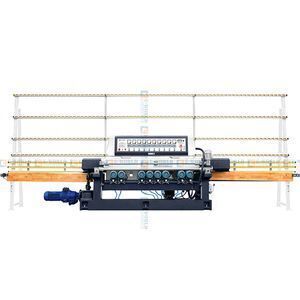

Automatic Vertical glass beveling grinding machine

Product Description

1.Brief introduction:

It is used to grinding of flat glass’s bevel and bottom edge in bulk,combining bevel edge’s coarse grinding,fine grinding and polishing with bottom edge’s grinding at one time.Swing frame structures are forward and bakward in synchronization.The clamp plate and middle splint are refined with 40r materials,so their wear ability can reach an incalculable limitation.In addtion, the motors for grinding heads adopt international famous brands.Overall, this is a practical beveling machine made up of good-quality components.

1.1 Adopts the design of 2-wheel grinding, 3-wheel accurate grinding, 3-wheel polishing and 1-wheel hemline repair.
1.2 CVT adjusts the processing speed.
1.3 PLC controller if needed.
1.4 Input and output conveyors adopt timing belt to improve the stability of transmission.
1.5 The finished edge will be as bright and clear as the glass itself.
1.6 Easy to operate and maintain.
1.7 All items have got CE approved, and are strictly according to CE standard.

2.Features and function:

2.1.Single chip control system

2.2.9 wheels, 1 felt polishing wheel, with cerium oxide, pneumatic polishing assistant.

2.3.Glass thickness, angle adjustment adjusted on control panel

2.4.High speed inducing motor. Speed 2480rppm/min.

2.5.Conveyor chain

2.6.Stainless steel water tank

2.7.Aluminum or steel glass support for option

3.Main Techincal Parameter:

Quantity of motors: 9 sets

Minimum grinding size: 25 mm ×25mm

Thickness of the processed glass: 4mm - 12mm

Grinding speed: 0.7 - 3.5m/min
Bevel degree: 0-40°

Bevelig width: 1.5mm-40mm
Power: 21.5kw
External dimension(L×W×H): 7.5×1.5m×2.25m
Weight:3500 kg
Voltage: 380V/50 Hz
Pack size :3.8m×1.2m×*1.5m

Packaging & Shipping

Eworld Machine produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.

Our Services

1.Our Goal

Eword strives to find a balance between quality and price, so that customers can buy the best machine and we can win-win.Eworld Machine provides full set services and high-quality but low-price products.We are always looking for long term cooperaion, not one time deal.

2.Pre-sale

Eworld provides 24 hours high-quality service.When clients contact Eworld and ask for products,E-World answers at once,except our clerks sleep,which condition we answer within 10hours.Eworld understand how important it is for the customers to choose a suitable machine ,we are ready to come up with a best solution for customers.

3.On-sale

For all you requests,we will supply the best solution to you as soon as possible.If you have any inquiry or problems,please contact us with E-mail ,skype,alibaba,whatsapp,phone,etc.

Eworld welcome customers to visit the factory,we will pick you up from airport or train station.Eworld location is convenient to welcome clients because of next to train station.

4.After-sale service

When customers buy the glass edging machine ,E-World promises that the machine will be delivered in 20-25 days after deposit.

E-World arranges commodity’s packages suitable for shipment of sea.

E-World provides English instruction about manual guide and video technical support.Any problems please let we know,and we will give detailed support and advice.

E-World promises worry-free repair of one whole year after installation, the original fault parts

damaged, be free of anycharges.When the serious breakdown and big fault happens,E-World has engineers and they can fly to there to solve it.

FAQ

Frequently Questions

1.Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

2.Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free

3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.

4. Q: Do you provide equipment operation training?

Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5.Question:if our price is higher than another company or factories ?
Answer:
please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

6.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

7.Question: What is the payment ?
Answer:
Any payment method you want,such as L/C,T/T,D/P,West-union and so on.

If you are a glass fabricator, looking for High quality Vertical glass stright-line beveling edging machine for business expansion,

If you have interest to set up glass a production line as your new business,

Or you have any questions about glass equipment,

Any details information or help you want, please contact with me.
