CNC Automatic CE Standard Hot Sale Glass Cutting Machine For Floating Glass

Supplier: Shandong Eworld Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Ewin Wang
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting speed:	0-180M/min(Can adjust);	Machinery Test Report:	Provided;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Condition:	New;
Dimension(LWH):	400032001100mm;	Local Service Location:	Canada,Turkey,United States,Morocco;
Material:	Stainless Steel;	Voltage:	380v Or As request;
Weight:	2TONS;	Warranty:	1 Year;
Supply Ability:	5 Set/Sets per Month;	Brand:	Eworld Machine;
Automation range:	CNC;	Name:	Glass Cutting Table;
Production Capacity:	100%;	Machine Type:	Glass Cutting Machine;
Key Selling Points:	High-accuracy;	Marketing Type:	Ordinary Product;
Electrical parts:	Top configuration;	Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;
Sea port:	Qingdao Seaport;	Showroom Location:	Turkey,United States;
Video outgoing-inspection:	Provided;	Brand Name:	Eworld Machine;
Glass Thickness:	3-25mm;	Warranty of core components:	1 Year;
Certification:	ce;	Applicable Industries:	Manufacturing Plant;
Port:	Qingdao;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Power:	8KW;	Packaging Detail:	This one need 1*20' container;
Package Preview:	;	Core Components:	Pressure vessel,Motor,Bearing,Gear,Engine,Gearbox,CNC;
Cutting optimization:	Customers' Request;	Usage:	Cut Glass;
Service:	After-sales Service Provided;	Place of Origin:	Shandong China;

Automatic High-Quality Glass Cutting machine

Product Description

We are the manufacture of glass cutting machine. We have many kinds of glass cutting machine.

include manual glass cutting machine, T cutter,

Semi automatic glass cutting machine,

NC glass cutting machine, CNC glass cutting machine,

CNC integrated glass loading cutting breaking machine,

CNC glass cutting line and so on.

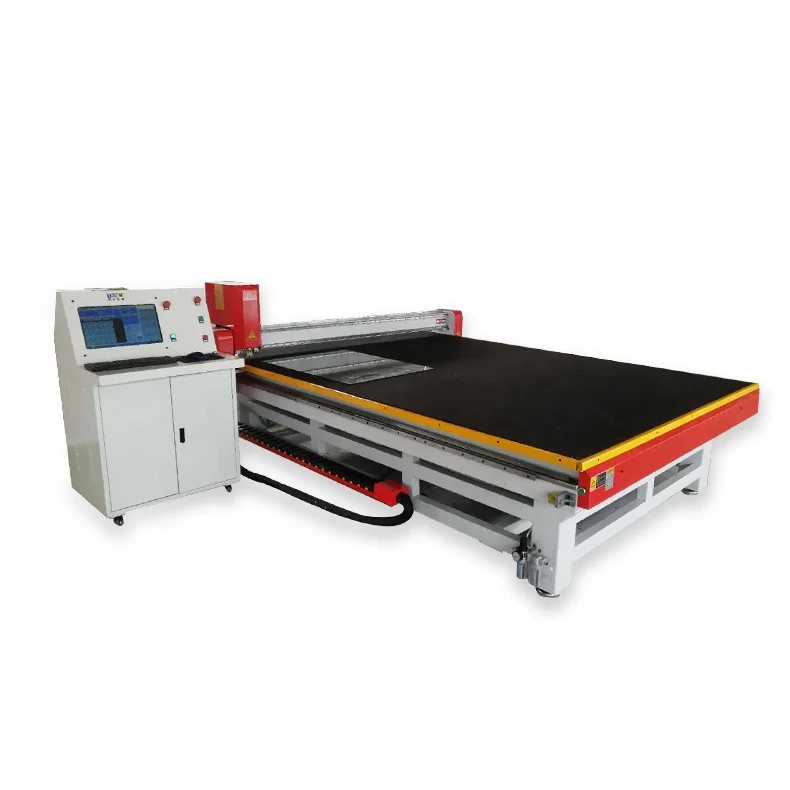

This one is one type CNC glass cutting machine.

Eworld Machine, Only give high quality machines to our customers.

Brief Introduction

CNC2620 is a high intelligence machine,which core components(Motors) all are designed and imported from Japan. Under sensor controlled, glass automatically find glass edge

in the X and Y directions.

Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size(We provide optimization system), and give out the data for processing.

Feature

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2.The X,Y axis adopt reliable motor drive(Two motors), selected pairing, ensure the smooth movement.

3.Using high precision level gear rack drive, high precision, speed and strength.

4.Adopts imported linear guide square, high precision, long life.

5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.

7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.

Eworld Machine, Only give best glass processing machinery to our customers.

Equipment

1. Equipped with imported cutter wheels and a set of setting tool.

2. A set of stability voltage power supply.

3. A set of best optimized software.

4. A set of computer operating system (including a set of computer and cutting software)

Technical Parameters

1. The cutting thickness: 2~19mm(the thickness of 2~6mm and 8~19mm are different. The cutter wheels should be replaced and the pressure should be adjustable)

2. The cutting accuracy: Parallelism:≤±0.20mm catercorner:≤±0.2mm

3. The cutting speed: 0~180m/minute(can be adjustable)

4. The outline size: 4000×3200×1100mm;The tabletop size:2600×2100mm

5. The max cutting size:2440×1830mm

6. Transmission system: The X,Y,Z Axis are equipped with Yaskawa JAPAN servo motor made in Japan and THK precision gears.

7. The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)

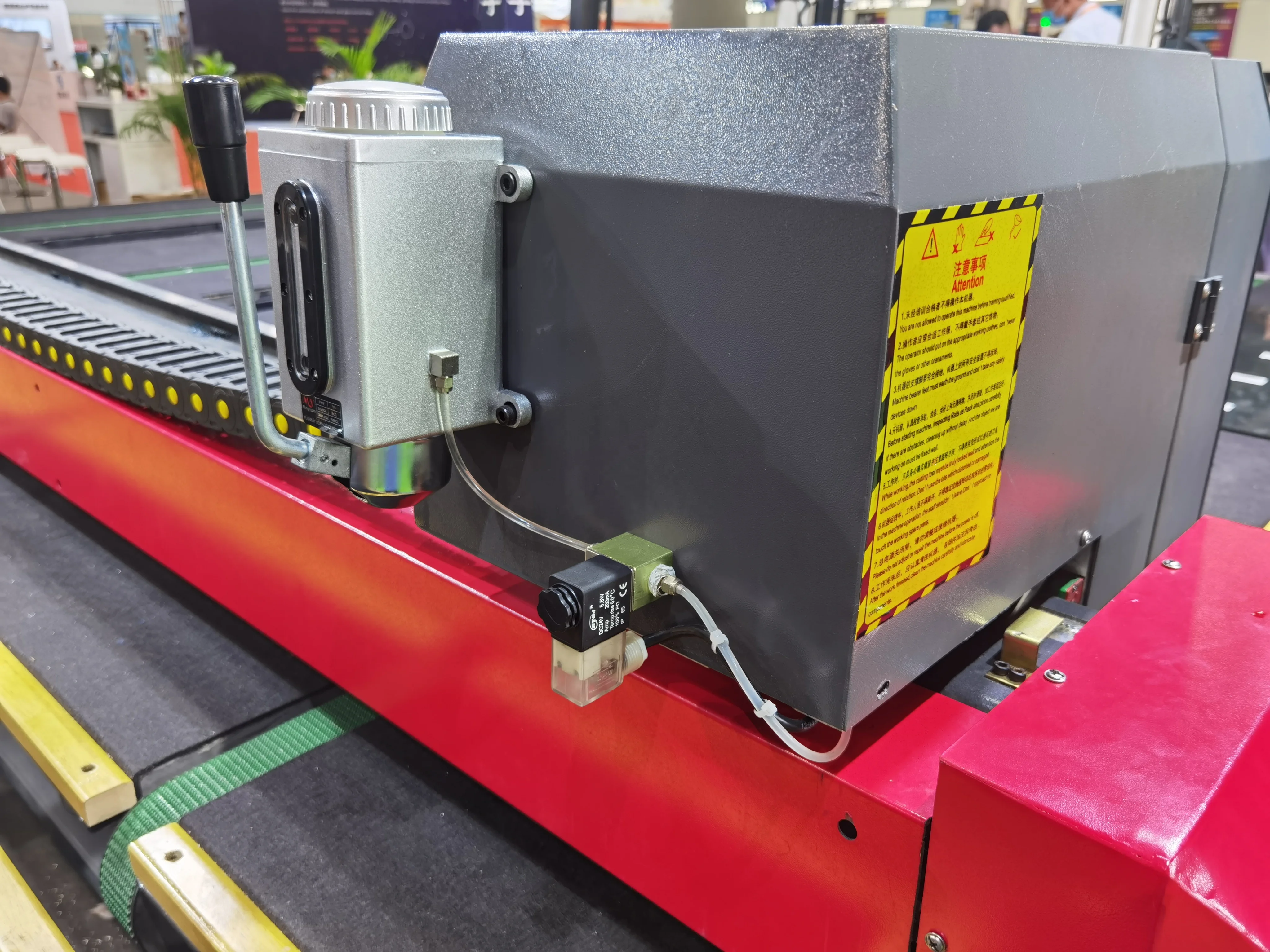

8. The oiling supply method: Auto oiling.

9. The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.

10. The positioning system: Pneumatic positioning system.

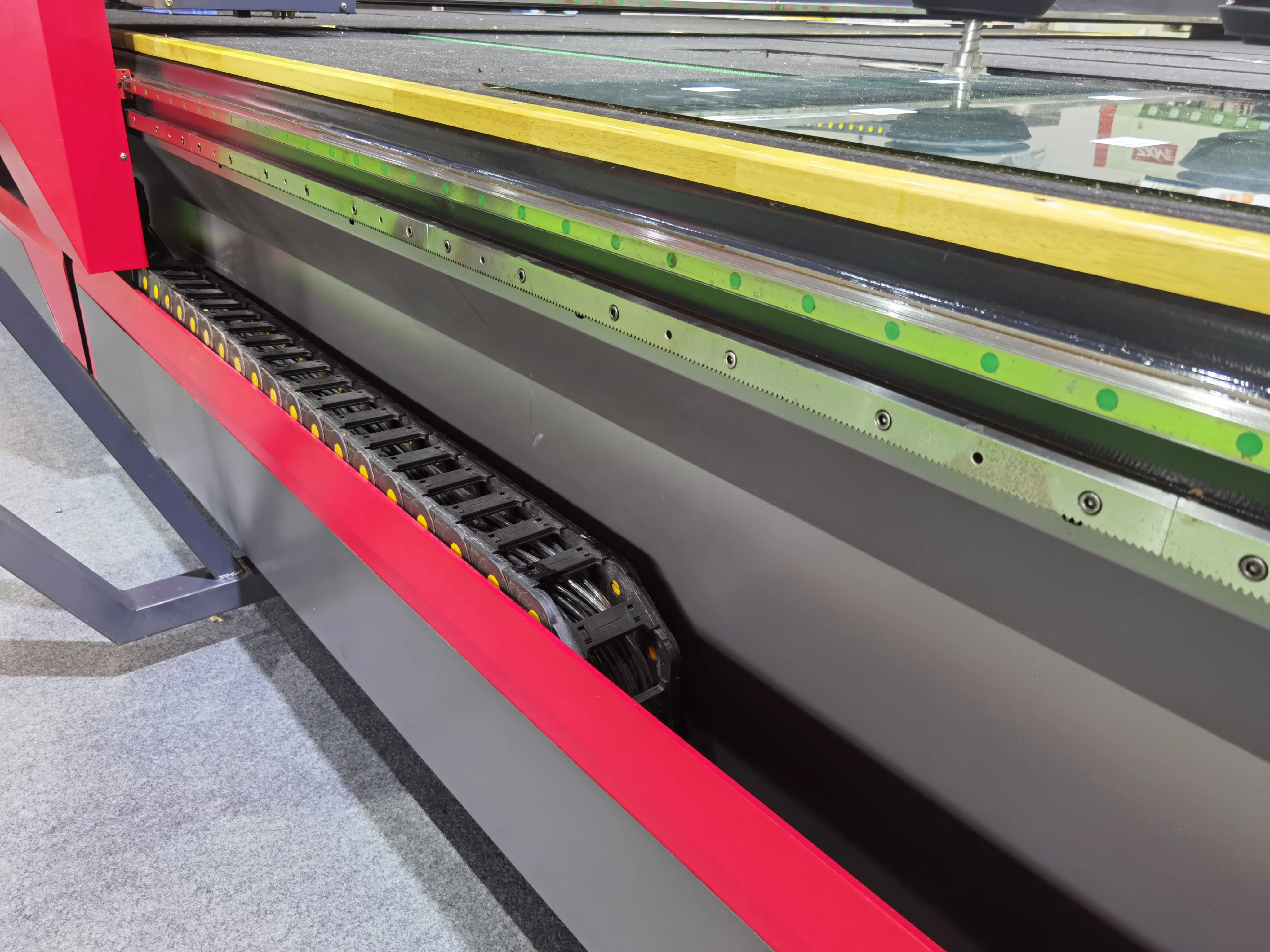

Bohle cutter, channel steel, air float system, imported gear and rail

with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.

Our Services

1.Our Goal

Eword Machine strives to find a balance between quality and price, so that customers can buy the best machine and we can win-win.Eworld Machine provides full set services and high-quality but low-price products.We are always looking for long term cooperaion, not one time deal.

2.Pre-sale

Eworld provides 24 hours high-quality service.When clients contact Eworld and ask for products,E-World answers at once,except our clerks sleep,which condition we answer within 10hours.Eworld understand how important it is for the customers to choose a suitable machine ,we are ready to come up with a best solution for customers.

3.On-sale

For all you requests,we will supply the best solution to you as soon as possible.If you have any inquiries or problems,please contact us with E-mail ,skype,alibaba,whatsapp,phone,etc.

Eworld welcome customers to visit the factory,we will pick you up from airport or train station.Eworld location is so convenient to welcome clients because of next to train station.

4.After-sale service

When customers buy the glass cutting machine ,E-World promises that the machine will be delivered in 25-35 days after deposit.

E-World arranges commodity’s packages suitable for shipment of sea.

E-World provides English instruction about manual guide and video technical support.Any problems please let we know,and we will give detailed support and advice.

E-World promises worry-free repair of one whole year after installation, the original fault parts damaged, be free of anycharges.

When the serious breakdown and big fault happens,E-World has engineers and they can fly to there to solve it.
