Glass making oven for laminated glass,bending glass,insulating glass

EVA Glass Laminating  Machine  can produce the traditional laminated glass, also can make

different laminated glass with different material, such as silk,cloth, metallic braid and so on,in the middle

between the two glasses,use EVA film. If you add the material differently, the use effect is also different.

These products also have many kinds of functions like sound-insulated, the heat insulation,

the explosion-proof, bullet proof and so on.,have been widely used and well in demand for home,bank,

hostipal,store,show-room,Image CIS and so on.This machine can produce all kinds of laminated glass,

such as safety glass, bullet-proof glass, metal wire-reinforced glass, decoration marble glass,

decoration glass,double-decked steel marble glass, color silk glass, color portrait glass, and so on.

Product main use:

Construction of inner wall glass, bulletproof glass, high-level office block, CIS enterprise image, furniture, church, dance floor, villa, valance curtain, wall window

pane, tabletop, craft glass and so on.

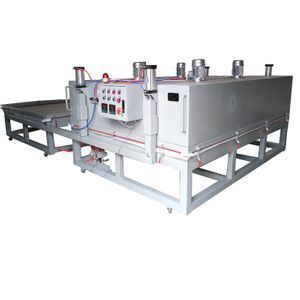

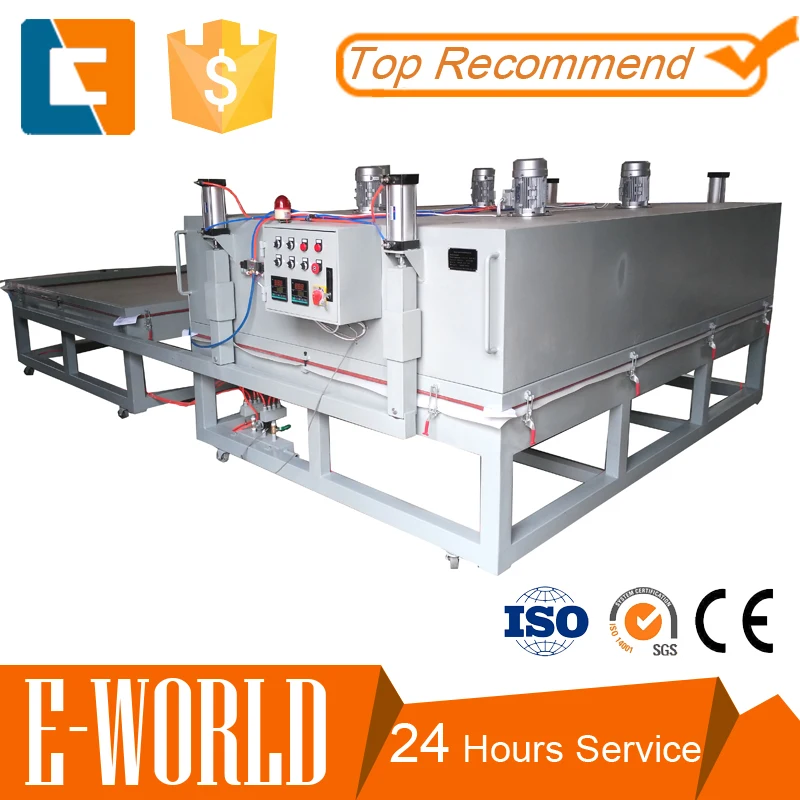

EVA Glass Laminating  Machine

Advantage:

Does not require extensive financial investments, the security results is high, effective and reliable. Sho

rt production cycle, occupies minimum size of factory area.

EVA Glass Laminating  Machine    Technical parameter:

Overall dimension:

6400*3000*1200mm

Power:

380V 50HZ/ 220V 60HZ

Total power:

38kw

Amper:

100 A

Vaccum time:

3 minutes at first time

Heating time in Low temperature:

4-6 minutes

Heating time in high temperature:

25 minutes

Cooling time:

15 min

Heating temperature:

110-130 degree

Working dimension:

2400*1800mm

Weight:

2500kg

EVA Glass Laminating  Machine   We are quite flexible to satisfy every customer’s  request

1) Double Control system: PLC system( Delta or Siemens),double working table,one is working,the another table is preparing;To the opposite,it is the same,so it work fast and have good efficiency.
2)Air Storage tank
3) Silicone Plate:Loading and unloading process automaticially,no need it by hand,it

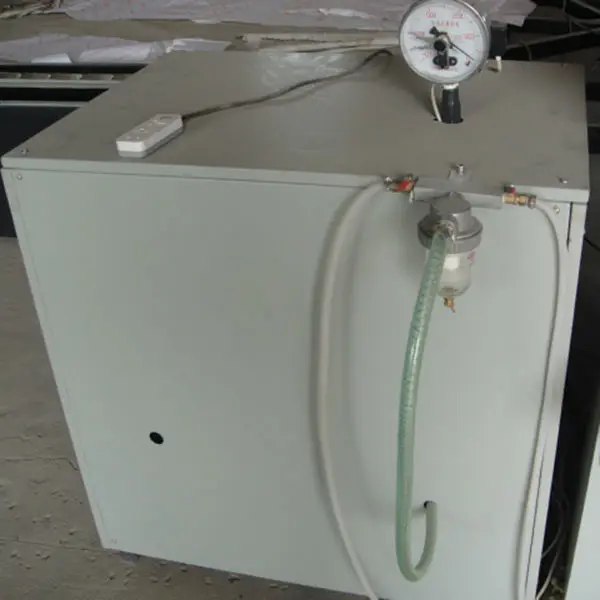

4) EVA Glass laminating machine Vacuum pump
5)Heaters: 28PCS
6)Special Cotton for Keeping Temperature
7)Famous Electricity parts with long life
8) Automatic Program alarm system(to warn you after one process finish)
