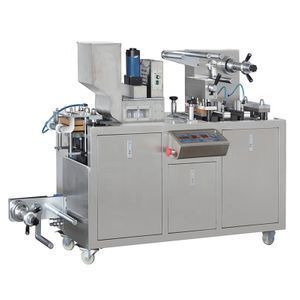

PVC Pharmaceutical pharmacy DPP-80 capsule pill tablet autom
-
Supplier: Shenzhen Yason General Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Jane Huang -
Price: $4100.00 /set -
Min. Order: 1 set
| PTP aluminum foil: | Width: 50-105mm thick: 0.02mm; | Standard plate (mm): | 80*57(For the user choice); |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Port: | Shenzhen; |
| Automatic Grade: | Automatic; | Certification: | GMP; |
| Application: | Food,Commodity,Medical,Chemical; | Driven Type: | Electric; |
| Packaging Detail: | Export Standard Wooden Case; | Type: | Blister Packaging Machine; |
| Punching frequency: | 30 times/min; | Place of Origin: | Guangdong China (Mainland); |
| Condition: | New; | Payment Terms: | T/T,Western Union,MoneyGram; |
| Supply Ability: | 300 Set/Sets per Month; | Dimension(L*W*H): | 1150*500*950; |
| Voltage: | 380v; | Warranty: | 1 Year; |
| pvc rigid sheet: | Width: 50-105mm thick: 0.2-0.25mm; | Weight: | 280kg; |
| Brand Name: | YTK; | Package materials: | Pvcplastic ptp aluminum; |
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Package material placement screw
The position of the card needs to be aligned with the middle position of the forming mold to adjust the composite of the heating plate.
Cutting system
The inverter regulates the rotational speed of the internal brush disc. The interior is equipped with high-quality soft brush and does not scratch the product. Depending on the nature of the material, it can be cut by brush, manual discharge or pump injection.
Molding mold
Customize the molding die according to the samples or requirements provided by the customer to determine the layout and punching method. If the blowing is too deep, an overmolding mold is required.
Molding heating
Preheating and blowing the required packaging materials, heating the plate with full heat, and blowing bubbles smoothly. The molding temperature is generally controlled at about 115 degrees Celsius. The mold positioning is accurate, and the size of the molding die is even and accurate.
Heat sealing and traction system
With high temperature sealing, the temperature can be adjusted, and the heat sealing temperature is generally controlled between 150-160 degrees Celsius. Cylinder drive, firm bonding, accurate operation and easy operation.
The two-cylinder traction positioning system has a more precise stroke and is not easy to shape.
Punching device
The punching position is positioned accurately, and the position of the cutter can be adjusted before and after. After the cutter is installed, the cut blister board is free of burrs. It is strictly forbidden to use the start when the mode is adjusted, and the mode should be adjusted by the jog mode.
Power and water pipe connection
A water cooling cycle is used. Connect the water pump to the air compressor.
Packing
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us before you place order.
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.
-
