Core Components: | Motor; | Condition: | New; |
Warranty: | 1 Year; | Brand Name: | The Nile CO., LTD; |
Marketing Type: | New Product 2020; | Application: | Rock Stone Crusher; |
Capacity(t/h): | 1-3; | Motor Type: | AC Motor; |
Place of Origin: | Henan China; | OEM: | Yes; |
After-sales Service Provided: | Online support; | Discharge size: | 10-40mm; |
Machinery Test Report: | Provided; | Type: | Jaw Crusher; |
Local Service Location: | Kenya; | Motor power: | 5.5kw; |
Key Selling Points: | Competitive Price; | Applicable Industries: | Building Material Shops,Construction works ,Energy & Mining; |
Dimension(L*W*H): | 1000*870*`990mm; | Capacity: | 1-3t/h; |
Rotation speed: | 260r/min; | Payment Terms: | L/C,T/T; |
Color: | As your required; | Port: | QingDao; |
Warranty of core components: | 1 Year; | Max feeding size: | 125mm; |
Showroom Location: | Kenya; | Weight: | 0.7t,0.7t; |
Video outgoing-inspection: | Provided; | Factory visit: | welcome; |
Supply Ability: | 300 Set/Sets per Month; | MOQ: | 1; |
Certification: | ISO, CE; | Packaging Detail: | Standard package in wooden boxes or containers; |

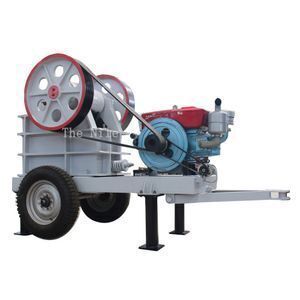

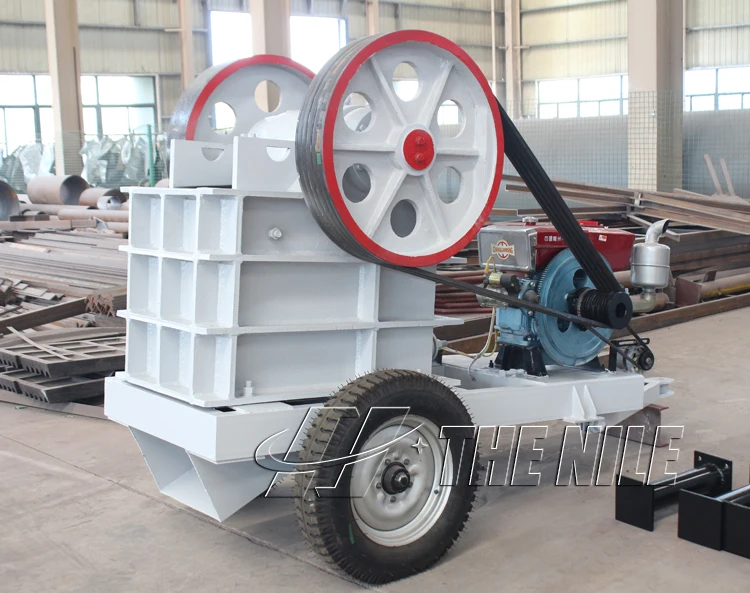

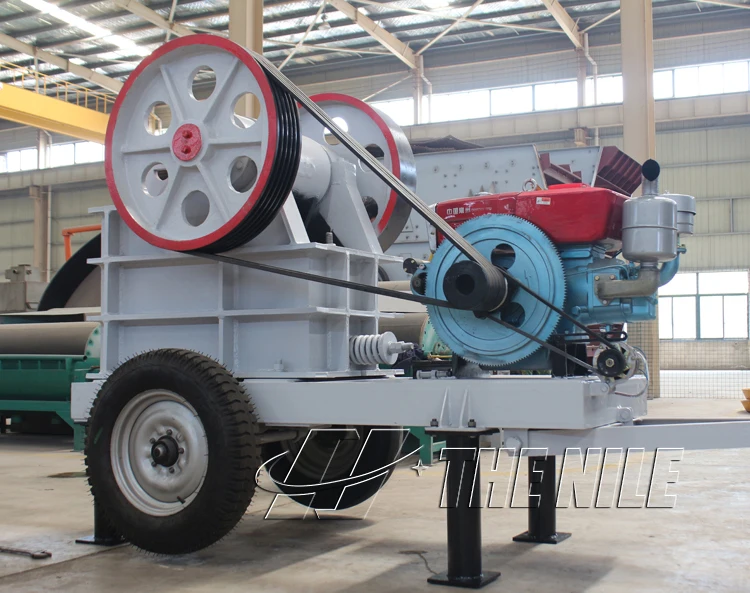

Portable rock crusher mini mobile stone crushing machine
Diesel mobile jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
This PE 150*250 jaw crusher max. feeding size is 125mm, output size is 10-40mm, capacity is 1-3 tph. Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building construction, construction wastes etc.
Main Features:
1. Safe and reliable lubrication system, convenient replacement parts, small maintenance workload;
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding;
3. Large crushing ratio, uniform products particle size;
4. Pad-style nesting population adjustment devices, and ease of adjustment range,which increase the flexibility of the equipment;
5. Simple and reliable structure,low operation costs;
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users;
7. Low noise and less dust;
Model |
Max. feeding size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Diemension (mm) |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |

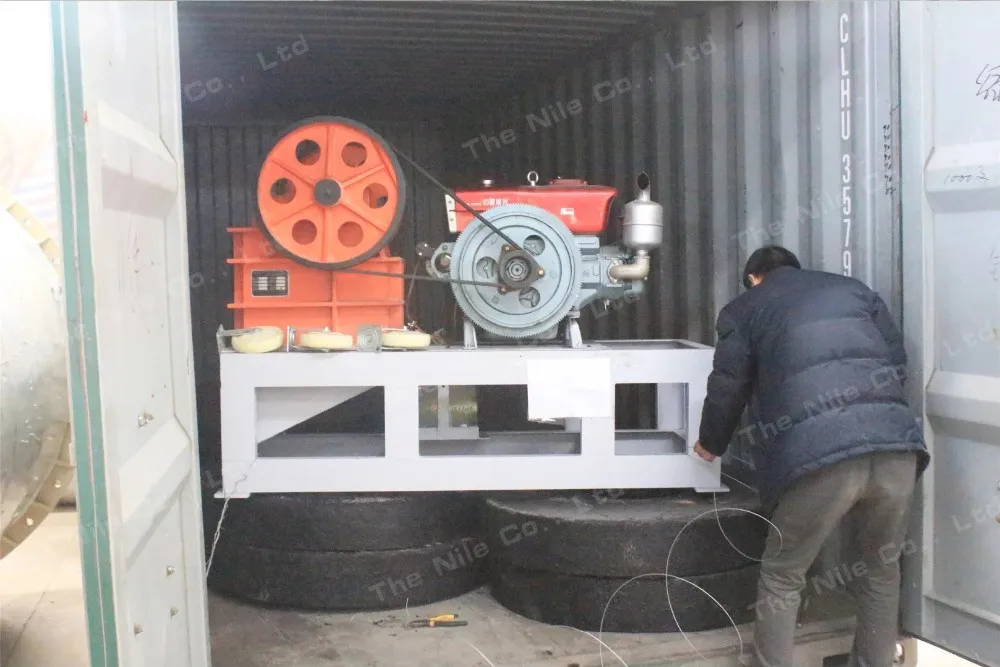

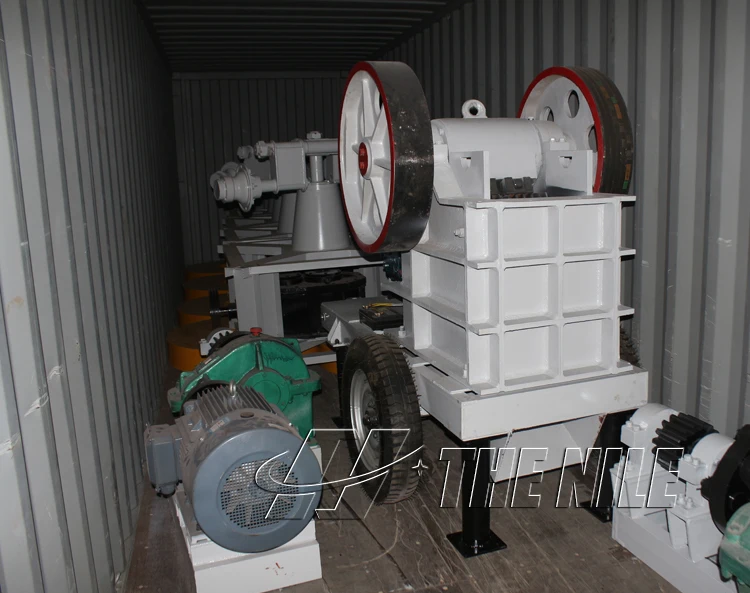

Standard package in wooden boxes or containers
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machine,drying and calcinating as well as beneficiation equipments,fine sand recyling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry ,wharf,granary,chemical industry.Our products have been spreaded all over China,and also exported to
European,American,Asian,African countries and enjoyed great popularity among our customers.
Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.
We are professional factory with advanced technology and rich experience, customers are very welcome to visit the factory
Pre-sale services:
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
