Place of Origin: | Guangdong China; | Inner box size: | 33*18.7*25cm; |
Feature: | Constant current and constant voltage protection, high stability; | Item no: | P-3005DA; |
net weight: | 5.35 kg /pc; | Output Voltage: | 0-30V adjustable; |
Input Voltage: | AC 220V (110V need customize); | Ouput current: | 5A MAX; |
Ouput voltage: | 0-30V (adjustable); | Input frenquency: | 50/60Hz; |
Packaging Detail: | 3 year super long warranty 5A adjustable dc power supply with 4 bit lcd display paper box with foam inside.; | Output Power: | 150W; |
Output Current: | 0-5A; | Brand Name: | Sunshine; |
Model Number: | P-3005DA; | Name: | 3 year super long warranty 5A adjustable dc power supply with 4 bit; |
Supply Ability: | 2000 Set/Sets per Week 5A adjustable dc power supply; | Port: | guangzhou; |
color: | Grey; | Output Frequency: | 60HZ; |
Payment Terms: | T/T,Western Union,MoneyGram,Ali secure payment; |
Primary Technical Parameter:
1.Rated working condition
Supply voltage AC110V/220V ±10% (switch chose) frequency (50hz / 60hz)
Working condition Temperature -10°C-40°C,relative humility≤90%
Storage condition Temperature -10°C-40°C,relative humility≤80%
2.Output
Voltage 0-30V
Current 0-5A
Power 150W
Protection types circuit protection,overload and over high temperature protection.
Overload mediation
Voltage 0.01%+3mV(I≤3A)
Current 0.2%+3mA(I≤3A)
Power mediation rate and resolution
Voltage 0.01%+3mV
Current 0.01%+3mA
Voltage 10mV
Current 1mA (2mA Rated Current>3A)
Setting accuracy (25±5°C)
Voltage ≤0.1%
Current ≤10mA Rated Current >3A
Ripple (20Hz-20MHz)
Voltage Ripple≤1mVrms (≤ 2mVrms >3A
Temperature coefficient (0-40°C)
Voltage ≤ 300ppm+10mV
Current ≤ 300ppm+10mA
Read back value resolution
Voltage ≤ 300ppm+10mV
Current ≤ 300ppm+10mA
Drift
Voltage ≤ 300ppm+10mV
Current ≤3 00ppm+10mA
Features:
1. The 5A adjustable dc power supply is with high quality and high power transformer, the machine power
is enough, can really achieve the voltage output 30V, current output 5A, and can accurately set the
protection current size.
2.4 bit accurate control and display, bring more precise control, and constant pressure flow protection
mode, effective protection of the safety of the load.
3. The whole process circuit after the factory more than 10 years of continuous improvement and
innovation, precise control, mature technology, high safety, stable and reliable by
users at home and broad is certainly.
4 built-in temperature control protection circuit, when the machine internal heating temperature of over
40 degrees, the cooling fan will automatically run, when the power is connected to load
more than the maximum load of the machine will automatically protect, stop output, effectively protect the
use of power supply safety, extended service life.
1 set including all the parts:
1 x adjustable dc power supply
1 x Chinese and English manual
1 x set cord for testing
Warranty:
1. 3 Years warranty
2. As usual, the shipping fee is high. If return China to repair, is not worth the money.
3. So we could support technology and give you the spare parts along with the product.

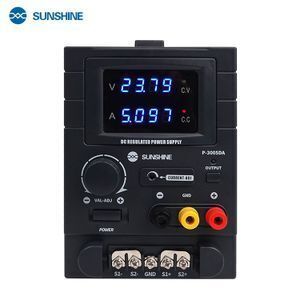

Product photos:
About Us (SUNSHINE)
Sunshine , born for mobile repair. Our company was founded in1998, and we focus on phone maintain area for 19 years, continually enrich range of product and strengthen our brand. As a global leading one-step service platform on mobile phone maintain, our business has been reached more than 60 countries and regions, reaching more than 300,000 service end clients and the range of product arrive 10 categories with totally more than 1000 products including all kind of tool demands during repairing the phone. Our high quality and young team is the powerful strength to satisfy client demand. In the future, we will try harder, persist and focus more on every demand of clients. Good tools,made by SUNSHINE
1. What is the minimum order quantity (MOQ) of the product?
Generally according to customer requirements, no matter how much we can accept.
2. How long is the product warranty period?
Non-functional products are not included, functional products are not artificially damaged, we guarantee 12 months for domestic customers; for overseas customers, 12 months, but they bear the freight or repair some accessories for second purchase.
3. What are the advantages of your product?
Answer: 22 years of production and sales experience, with a variety of independent maintenance brand products.
4. Do you accept OEM orders?
Not accepted.
5. How about the delivery date?
For samples of existing products, please deliver within 3 days; and order large quantities of products for customers from 7 to 15 days.
6. What are the payment terms?
Answer: T / T, PayPal, Western Union, Money Gram, L / C, etc.
Dear friends,pls chick the picture and come to our homepage to get more information about our mobile repair product!Thank u!
