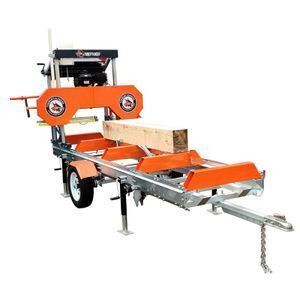

15hp gasoline engine portable sawmill with trailer / bandsaw mill with 31" cutting diameter

Product details
Warranty:2 years;After Warranty Service:Video technical support,Online support,Spare parts;
Video outgoing-inspection:Provided;Brand Name:RIMA;
Condition:New;Cutting capacity:790*178*2794mm (31"*7"*110");
Single gross weight:344.0 KG;Product name:band saw machine;
Single package size:200X55X90 cm;Place of Origin:China;
Weight (KG):345;Core Components:Bearing;
Distance teeth:22mm (0.86");Weight:355kg;
Certification:TUV CE;Use:Woodworking;
Blade Wheel Dia.:475 mm (18.7");Marketing Type:Hot Product 2019;
Blade speed:17m/min;Machinery Test Report:Provided;
After-sales Service Provided:Online support;Blade size:3670*34*0.9mm (144"*1-1/4"*0.035");
Packaging Detail:wooden pallet;Frame:4pcs;
Band Saw Type:Log Band Saw;Safe cutting Speed:13-15s/m;
Displacement:420cc;Applicable Industries:Farms,wood working machine;
Style:VERTICAL;Max.Working Width(mm):800mm;
Type:Band Saw;Key Selling Points:Easy to Operate;
Showroom Location:None;Application:farm/ factory;
Warranty of core components:1 Year;Selling Units:Single item;
Usage:band sawmill;Local Service Location:None;
Product Description

RIMA portable band Mills has designed the RS26 sawmill for budget minded customers looking at getting into milling their own lumber at an exceptional price point. Based on our very popular RS26 model, the RS31 offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 31" in diameter and 110" (2.79m) in length. The RS26/31 also supports an unlimited ability to extend your track to handle milling logs of any length

Technology

 RIMA portable sawmill designed the RS26 sawmill for budget minded customers looking at getting into milling their own lumber at an exceptional price point. Based on our very popular RS26 model, the RS31 offers hobby sawyers an economical and well engineered mill. Featuring a powder coated structure and gas/petrol engine, this mill is a good choice for hobby sawyers.



Portable Sawmill

Model

RS22G

RS26G

RS31G

RS22E

RS26E

RS31E

Power

Gasoline 7HP

(LIFAN, Manual start)

Gasoline 9HP

(LIFAN, Manual start)

Gasoline 15HP

(LIFAN, Manual start)

Electric Motor

5.5KW

Electric Motor

7.5KW

Displacement

212cc

301cc

420cc

400V 50HZ 3phase

Cutting capacity

559*155 *2794mm (22”*6”*110”)

660*178*2794mm

(26”*7”*110”)

790*178*2794mm

(31”*7”*110”)

559*155*2794mm (22”*6”*110”)

660*178*2794mm (26”*7”*110”)

790*178*2794mm

(31”*7”*110”)

Frame

2pcs

4pcs

4pcs

2pcs

4pcs

4pcs

Blade size

3251*34*0.9mm (128”*1-1/4”*0.035”)

3670*34*0.9mm

(144”*1-1/4”*0.035”)

3670*34*0.9mm

(144”*1-1/4”*0.035”)

3251*34*0.9 mm (128”*1.25”*0.035”)

3670*34*0.9 mm (144”*1.25”*0.035”)

3670*34*0.9mm

(144”*1-1/4”*0.035”)

Safe cutting Speed

13-15s/m

13-15s/m

Blade speed

17m/min

17m/min

Distance teeth

22mm (0.86”)

22mm (0.86”)

Blade Wheel Dia.

475 mm (18.7”)

475 mm (18.7”)

Dimension

4064*1778*1800mm (160”*70”*71”)

4064*1778*1800mm (160”*70”*71”)

Track size

4042x900mm(159”x35.4”)

4042x900mm(159”x35.4”)

Packing

P1: 1800*550*810mm, P2: 2000*140*95mm

P1: 1800*550*810mm, P2: 2000*140*95mm

Weight

312/344kg

352/380kg

20”/40”HC

39pcs/78pcs

39pcs/71pcs



Trailer

Model

RST26/31

Trailer Axle

50x50mm

Trailer Size(L*W*H)

3970(+1000mm drawbar)x900x700mm

Trailer wheels with Fenders

165/70R13

Trailer loading capacity

1500kg

Trailer Lights

LED light kit

Trailer leveling jacks

4pcs

Trailer Ball Coupler

2" (50mm)

Finish

Galvanized

Log Loading Ramp

Max. 1350kg

Log Loading Winch

3000 lbs

Weight

600kg

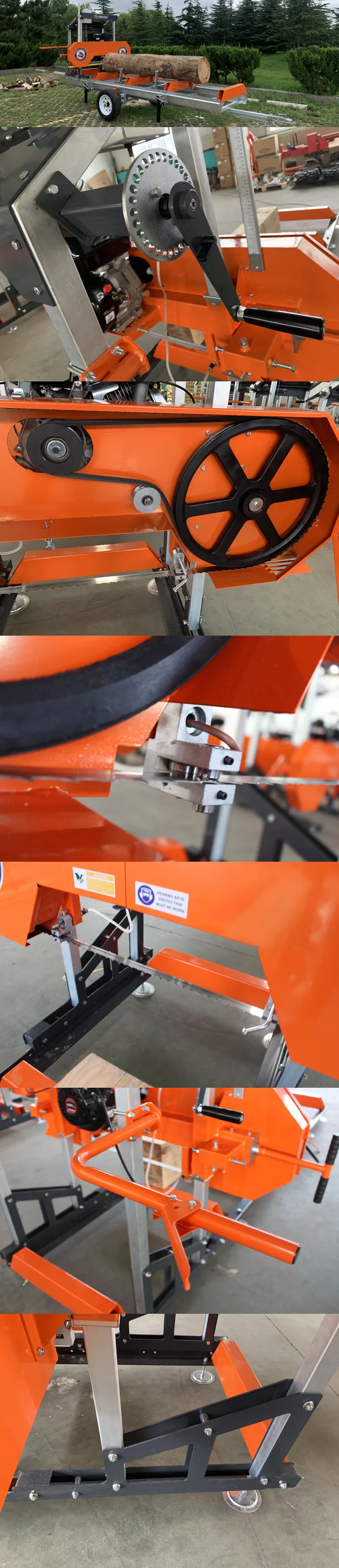

Detailed Images

General Construction

All major steel components feature either a powder coated or galvanized steel finish. This ensures your mill will stand up to nature's elements. We recommend covering your mill when not in use, but if you forget, it's good to know the mill will endure nature. The head moves up and down along galvanized steel channel via a very easy to turn hand crank system. The blade is kept lubricated by utilizing a water drip system. This prevents sap from gumming up your blade.

Cutting

The mill is capable of cutting 22″ (55cm) diameter logs up to 10' 4" (3.1m) long. Extra track sections are available in 6' 5" (1.95m) increments. Capable of squaring cants at 16″ (40cm) or live edge boards at 18″ (45cm) wide. It can also skim veneers at as thin as 1/16″ (1.6mm). The HM122 will cut within 1″ (25mm) of the deck ensuring that you maximize your usable board foot output.

Power

Our mills are powered by a 7.0 HP 4-cycle LIFAN gas/petrol engine. It features a slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty. Attached to the engine is an industrial centrifugal clutch system which offers "gas and go" efficiency and ease.

Track System

The head of our sawmill rolls along rigid 2.5″ x 2.5″ (6cm x 6cm) "L" channel which is cross supported with heavy duty 2 3/8″ x 4 3/4″ (6cm x 12cm) rectangle log bunks. These heavy duty cross supports also provide additional rigidity to the track system. The track also features one easy to use adjustable log clamp to securely hold the log while milling. The track itself consists of two 6' 5" (1.95m) sections allowing for 10' 5" (3.1m) log lengths. Additional 6' 5" (1.95m) tracks may be attached to accommodate logs of any length.
