Rated Current: | 30A; | Fuse Size: | 10x38 mm; |
Rated Voltage: | 1000VDC; | Safety Standards: | IEC; |
Place of Origin: | Zhejiang, China; | Holder Size: | 80*18*60 mm; |
Calss of Operation: | gPV; | Port: | NINGBO, SHANGHAI,ANY OTHER CHINESE SEAPORT CUSTOMER REQUIRED; |
Product Name: | DC Fuse; | Packaging Detail: | Standard Export Carton; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,Cash; | Wire Range: | 1-10mm2; |
Model Number: | FRPV-30; | Breaking Capacity: | High; |
Color: | White; | Pole: | 1P; |
Supply Ability: | 300000 Piece/Pieces per Month; | Usage: | Low Voltage, Solar System; |
Protection Level: | IP20; | Brand Name: | USFULL; |

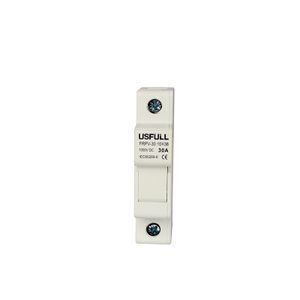

USFULL FRPV-30 Current Protection 1000VDC 30A DC Solar PV Fuse for Solar System
SPECIFICATION | |
Product Model | FRPV-30 |
Pole | 1P |
Rated Voltage | DC 1000V |
Rated Current | 1-32A |
Short-Circuit Breaking Capacity | 33KA |
Max. Power Attenuation | 3.5KW |
Protection Grade | IP20 |
Connection | 2.5-10mm² |
Operation Ambient Temperature | -30℃ to +70℃ |
Resistance and Damp Hot | Class 2 |
Elevation | ≤2000 |
Installation Way | TH35-7.5/ DIN35 Rail Installation |
RH(relative air humidity) |
when +20℃, not exceed 95%; when +40℃, not exceed 50% |
Pollution Class | +3 |
Installation Enviroment | the place of no abvious vibrate&impact |
Installation Class | III |
Dimension | 80x18x60 mm |
Weight | 0.07KG |
About Us
FAQ:
Q 1: When can I receive quotation and DC fuse details after sending the inquiry?
A: We will reply you within 24 hours.
Q 2: What's the difference between you and other suppliers?
A: We have our own design box with PC/PPT material.
Q 3: Do you provide DC fuse samples?
A: Yes, welcome to make sample order.
Q 4: What's the delivery time?
A: About 1-25 days. The specific delivery time depends on the quantity purchased.
Q 5: What payment methods can you accept?
A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH.
Q 6: What's your transportation method?
A: We can deliver by express, by air, by sea, by train and by land.
Q 7: How do you control the quality?
A: Our product strictly follow ISO9001 quality control system, all products must be tested after finished production.
