MPPT range: | 120-550V; | Max. Efficiency: | 97.7%; |
Packaging Detail: | one pcs packed in one cartoonb box; | AC connection: | Single-Phase; |
AC voltage range: | 230Vac; | Output Voltage: | 220V; |
Warranty: | 5years; | Certificates: | TUV IEC 62109 VDE-AR-N4105; |
Output Current: | 24A; | Model Number: | MG5KTL; |
Brand Name: | INVT; | Degree of protecgtion: | IP65; |
Size: | 405*360*150mm; | Inverter Efficiency: | 97.7%; |
Single gross weight: | 15.0 KG; | Selling Units: | Single item; |
Package Preview: | ; | MPPT efficiency: | 99%; |
Single package size: | 41X36X15 cm; | Input Voltage: | 120-550/360V; |
Output Frequency: | 50/60HZ; | Type: | DC/AC Inverters; |
Output Type: | Single; | Certificate: | CE TUV; |
Place of Origin: | Zhejiang China; | Weight: | 15KG; |

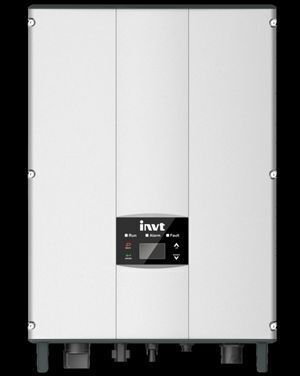

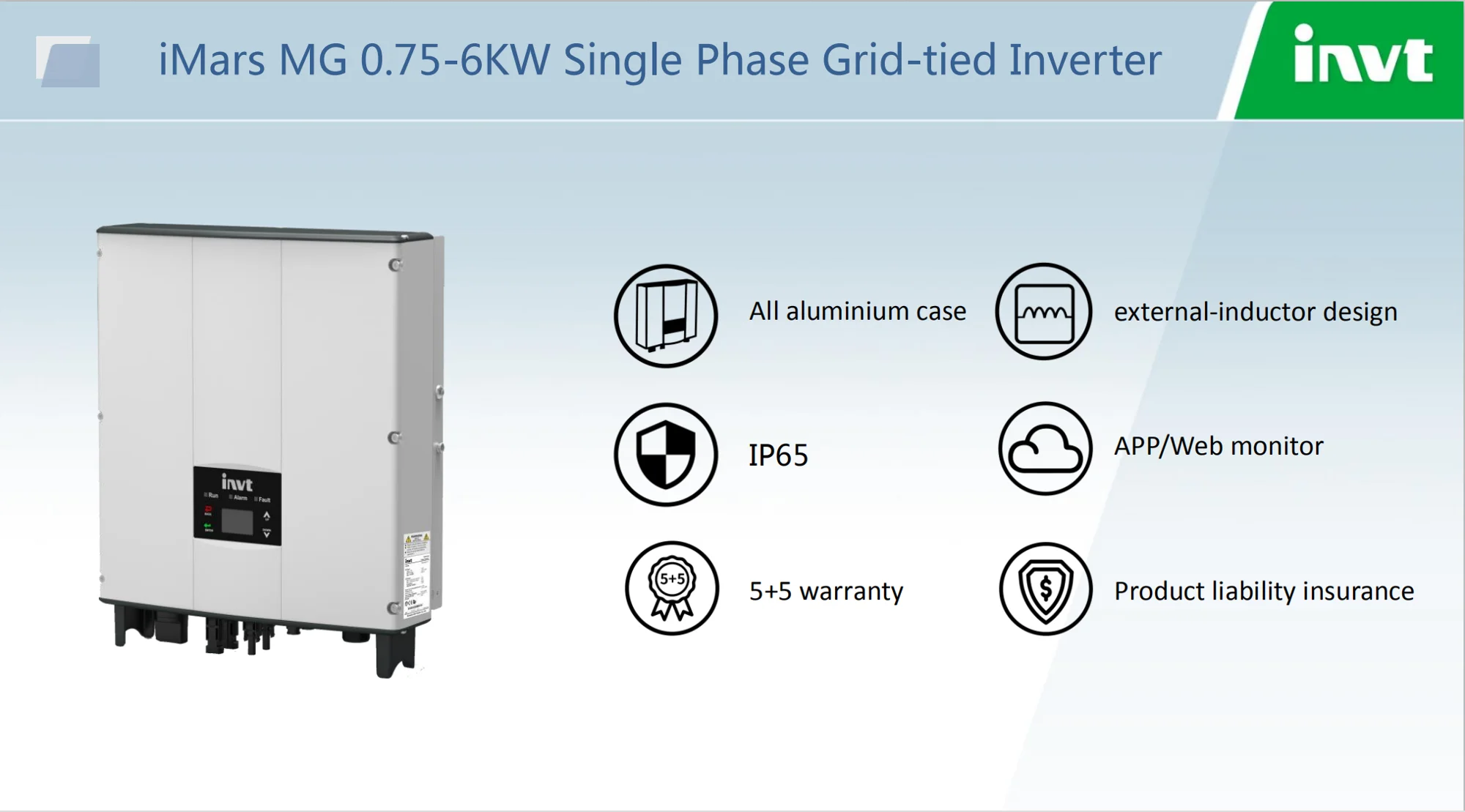

Perlight One Phase Grid-tied 220V 5KW Power Solar Inverter
MG5KTL | |||
INPUT (DC) | |||
Max. DC input power (W) | 6000 | ||
Max. DC input voltage (V) | 550 | ||
Starting voltage (V)/ | 120/100 | ||
Min. opration voltage (V) | |||
MPPT Range(V) | 120-550 | ||
Number of MPPT / | 1/2 | ||
String per MPPT | |||
Max. DC current (A) Per MPPT | 23x1 | ||
x Number of MPPT | |||
DC switch | Optional | ||
OUTPUT (AC) | |||
Rated output power (W) | 5000 | ||
Max. AC output current(A) | 24 | ||
Grid voltage range | 230/180~277V | ||
Grid frequency range | 50Hz(44~55Hz) / 60Hz(54~65Hz) | ||
Power factor | ≥0.99 (at rated power) | ||
THDi | < 3% (at rated power) | ||
AC output | Single-phase(L,N,PE) | ||
SYSTEM | |||
Cooling method | Natural cooling method | ||
Max. efficiency | 97.80% | ||
Euro-efficiency | 96.80% | ||
MPPT efficiency | 99.90% | ||
Protection rating | IP65 | ||
Self-consumption(at night) (W) | <1 | ||
Topology | Transformerless | ||
Operating temperature range | -25℃~+60℃(derate after 45℃) | ||
Relative humidity | 0~95%,no condensation | ||
Protection | PV array insulation protection, PV array leakage current protection, Ground fault monitoring, | ||
Grid monitoring, Island protection, DC monitoring, Short current protection etc. | |||
DISPLAY AND COMMUNICATION | |||
Display | LED (standard) / LCD(optional) | ||
LCD language | English, Chinese, German, Dutch | ||
Communication interface | RS485 (standard) ;WiFi,Ethernet(optional) | ||
MECHANICAL PARAMETERS | |||
Dimension (H x W x D mm) | 405×360×150 | ||
Weight (kg) | ≤15 | ||
Installation | Wall mounting | ||
OTHERS | |||
DC terminal | MC4 | ||
Grid standard | DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012, | ||
G83-2 :2012,G59/3-2:2015,IEC 61727(IEC62116),AS/NZS 4777.2:2015, | |||
NB/T32004-2013,IEC 60068-2-1:2007,IEC 60068-2-2:2007, | |||
IEC 60068-2-14:2009,IEC 60068-2-30:2005,IEC 61683:1999 | |||
Safe certificate / | IEC 62109-1 :2010,IEC 62109-2 :2011,EN 61000-6-2: 2005, | ||
EMC category | EN 61000-6-3:2007/A1:2011 | ||
Factory warranty (years) | 5 |
