6KW Solar Inverter Power Inverter Single Phase Grid-tied for Solar Power System

Product details
Phase:1 Phase;Output Current:26A;
Max. Efficiency:97.8%;Package Preview:;
Model Number:MG6KTL-2M;Packaging Detail:one pcs packed in one cartoonb box;
AC voltage range:230/180-277Vac;MPPT efficiency:99.9%;
Type:DC/AC Inverters;Brand Name:INVT;
Size:462*360*150mm;Warranty:5 Years;
MPPT range:120-550V;Single package size:40.5X10.5X15 cm;
AC connection:Single-Phase;Output Voltage:220V;
Output Frequency:50/60HZ;Selling Units:Single item;
Input Voltage:100/120V;Certificates:TUV IEC 62109 VDE-AR-N4105;
Frequency:50/60 HZ;Degree of protecgtion:IP65;
Place of Origin:Zhejiang China;Weight:15KG;
Output Type:Single;Single gross weight:15.0 KG;
Product Description

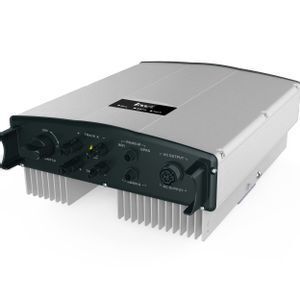

Perlight 6KW One Phase 220V On Grid Solar Energy Inverter

MG series single phase inverter is a new generation of PV string inverter which has been developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.

ON GRID INVERTER 6KW-2M
 MG6KTL-2M
 INPUT (DC)
Max. DC input power (W)6300
Max. DC input voltage (V)600
Starting voltage (V) / 120/100
Min. opration voltage (V)
MPPT Range(V)120-550
Number of MPPT / 2/1
String per MPPT
Max. DC current (A) Per MPPT 16x2
x Number of MPPT
DC switchOptional
OUTPUT (AC)
Rated output power (W)6000
Max. AC output current(A)26
Grid voltage range230/180~277V
Grid frequency range50Hz(44~55Hz) / 60Hz(54~65Hz)
Power factor≥0.99 (at rated power)
THDi< 3%  (at rated power)
AC outputSingle-phase(L,N,PE)
SYSTEM
Cooling methodNatural cooling method
Max. efficiency97.80%
Euro-efficiency96.80%
MPPT efficiency99.90%
Protection ratingIP65
Self-consumption(at night) (W)<1
TopologyTransformerless
Operating temperature range-25℃~+60℃(derate after 45℃)
Relative humidity0~95%,no condensation
ProtectionPV array insulation protection, PV array leakage current protection, Ground fault monitoring,
Grid monitoring, Island protection, DC monitoring, Short current protection etc.
DISPLAY AND COMMUNICATION
DisplayLED (standard) / LCD(optional)
LCD languageEnglish, Chinese, German, Dutch
Communication interfaceRS485 (standard) ;WiFi,Ethernet(optional)
MECHANICAL PARAMETERS
Dimension (H x W x D mm)462x360x150
Weight (kg)≤15
InstallationWall mounting
OTHERS
DC terminalMC4
Grid standardDIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012,
G83-2 :2012,G59/3-2:2015,IEC 61727(IEC62116),AS/NZS 4777.2:2015,
NB/T32004-2013,IEC 60068-2-1:2007,IEC 60068-2-2:2007,
IEC 60068-2-14:2009,IEC 60068-2-30:2005,IEC 61683:1999
Safe certificate /IEC 62109-1 :2010,,IEC 62109-2 :2011,EN 61000-6-2: 2005,
EMC categoryEN 61000-6-3:2007/A1:2011
