BY-400 Pharmaceutical bean sugar pill dragee coating machine automatic coating machine

Product details
Brand Name:Herun;Driven Type:Electric;
Key Selling Points:Competitive Price;Automatic Grade:Automatic;
Weight:70kg;After-sales Service Provided:Online support,Engineers available to service machinery overseas;
Single package size:77X46X96 cm;Dimension(L*W*H):485*585*810MM;
Place of Origin:Shanghai China;Certification:CE ISO9001;
Selling Units:Single item;Type:Coating Machine;
Usage:Pharmaceutican and food industry;Packaging Detail:wooden box with export standard;
Single gross weight:62.0 KG;Packaging Type:other;
Function:coating machine;Warranty:1 Year,one year;
Condition:New;Application:Food,MEDICAL;
Packaging Material:plastic;Applicable Industries:Food & Beverage Factory,Farms,Food & Beverage Shops;
Voltage:110v/220v/380v;Material:stainless steel 304;

Product Description

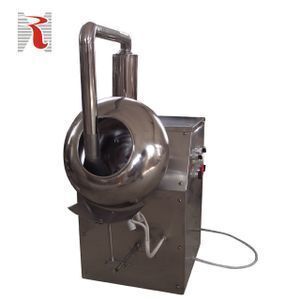

   BY-400 Pharmaceutical bean sugar pill dragee coating machine

Introduction and Features
Tablet coating machine is mainly used for coating, glazing, granulating in the pharmaceutical industry, it is also used in the foodstuff, such as sugar coating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut, KACANG JEPUN, dumplings, crispy fruit and spicy bean and so on.



The tablet will have bright and smooth surface after being coated and polished. It protects the tablet core from being oxidized and deteriorated, from being affected with damp or volatilizing.It also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system. And the chocolate, peanut, bean, candy will be more delicious after being coated.


Main Technical Parameters

Model

BY300

BY400

Dia. of coating pan

300mm

400mm

Production capacity

1-2kg/time

2-5kg/time

Internal heating power

900w

900w

Motor speed

46r/min

46r/min

Power of main motor

0.55kw

0.55kw

Blower fan

40w

40w

External heating power

500w

500w

Net Weight

65kg

70kg

Dimensions(L x W x H)(mm)

485x585x766mm

485x585x810mm







Product Category



Company Information



Packaging & Shipping



FAQ

1. How does the machine fit our voltage?

For each equipment, our salesman will confirm the voltage with the customer.



2. How can I buy the machine

Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.

Secondly, after receiving the 30% down payment, the production will begin.

Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, or by our forwarder or by your familiar forwarder.



3. How long is your machine’s warranty?

1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.



4. What can you provide for after-sale service?

We can send the engineer to the customer’s factory for the installation and operation training if the customer requires. We can also supply the installation and operation instruction by video.



5. If we have very special request on the production line, could you help me to do the design?

Customized design is provided.
